| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | GB2207001 |
| Minimum Order Quantity: | 1 Set |
| Price: | $1000/ Set |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 55 Days |
| Payment Terms: | L/C, T/T, Western Union, D/P |
| Supply Ability: | 150 Sets/Month |
| Material: | 18CrNiMo7/ 17CrNiMo6 | Reducer Type: | Speed-up Gear Box |
|---|---|---|---|
| Gear Profile: | Double Helical Gear | Gear Teeth Hardness: | 58-62 HRC |
| Heat Treatment: | Carburizing | Box Shell: | Casting |
| Highlight: | Double Helical Gear Reducer Gear Box,Custom Double Helical gear reducer gearbox,Custom Helical Gear Reducer Gear Box |
||

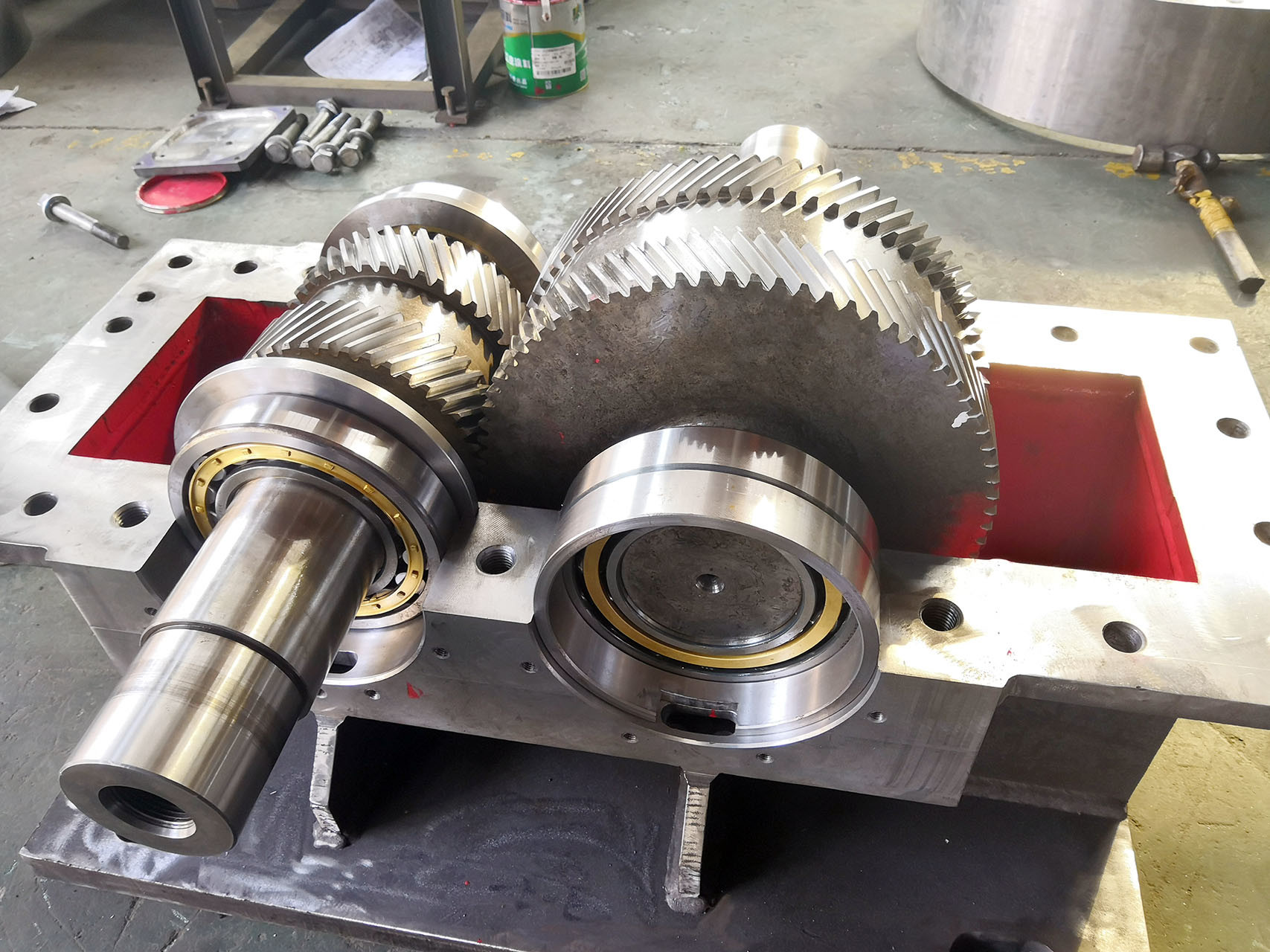

1) Description of Gearbox
Gearbox is a mechanical transmission device taht connects a motor to a driven load. It is also called gearbox.
It allows the client to modify the torque and speed between the input and output load.
The gearbox or gear reducer are made up of series of gears and bearings.
| Products | Gear Box/ Gear Reducer |
| Custom Made | √ |
| Gear Profile Type | Cylinder Gears/ Bevel Gears/ Worm Gears |
| Gear Teeth manufacturing | Gear Milling/Gear Hobbing/Gear Shaping |
| Gear Teeth Grinding | √ |
| Module (M) | Custom |
| Number of Teeth (Z) | Custom |
| Pressure Angle (α) | 20°/ 14.5° |
| Helix Angle (β) | Custom |
| Teeth Accuracy Grade | ISO 6-7 Grade |
| Heat Treatment | Carburizing/Cement Quenching/Nitriding |
| Surface Hardness | 58-62 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
