| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | RG2207001 |
| Minimum Order Quantity: | 50 Pcs |
| Price: | $20/ Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 45 Days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 2000 Sets/Month |
| Material: | 45#/40Cr | Heat Treatment: | Quenching & Tempering |
|---|---|---|---|
| Hardness: | 200-230 HB | Pinion: | Gear Teeth Grinding |
| Length: | 1200mm | Width: | 30mm |
| Highlight: | OEM ODM Straight Racks And Pinions,1200mm Length rack pinion gear,OEM ODM rack pinion gear |
||

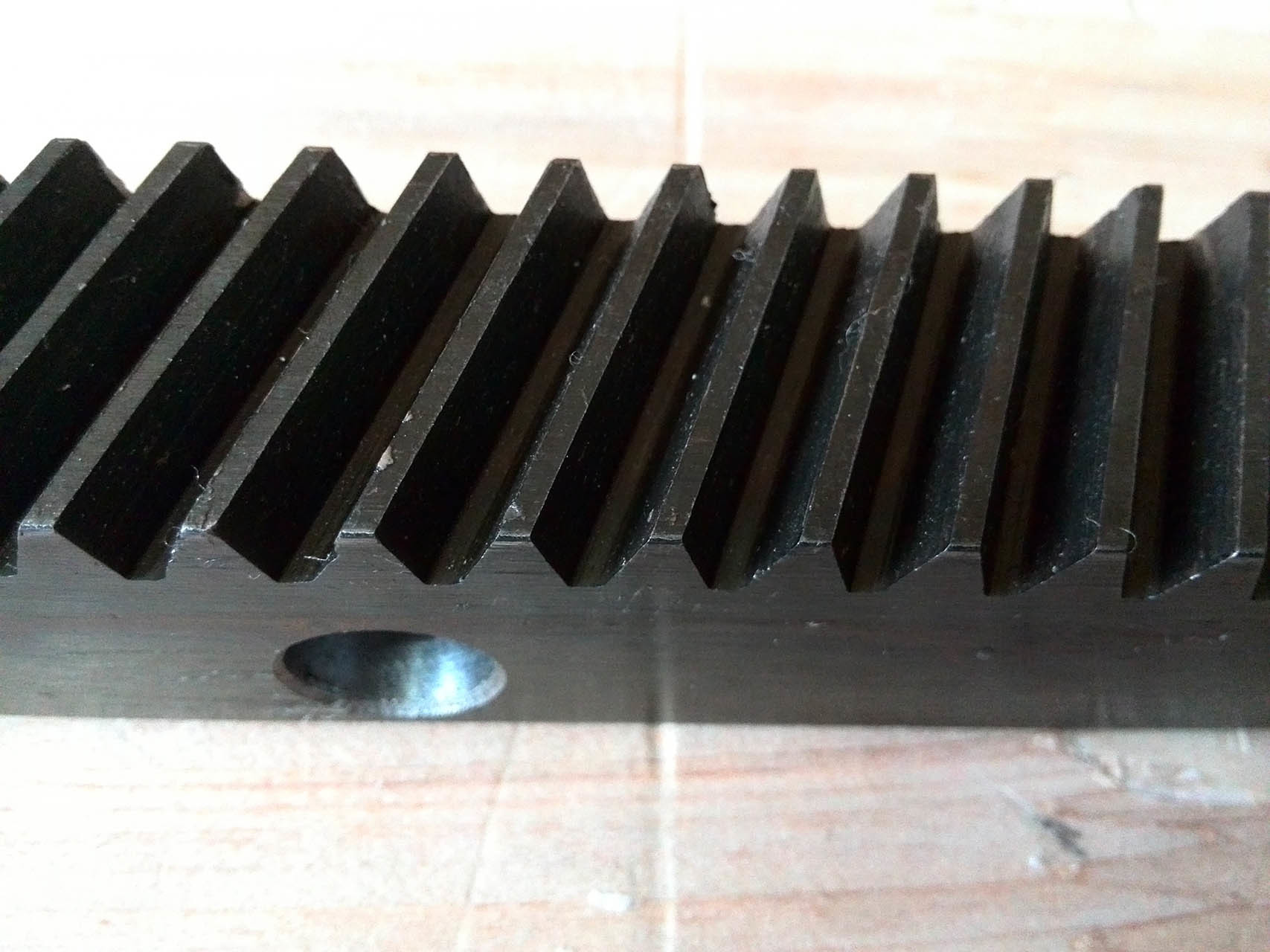

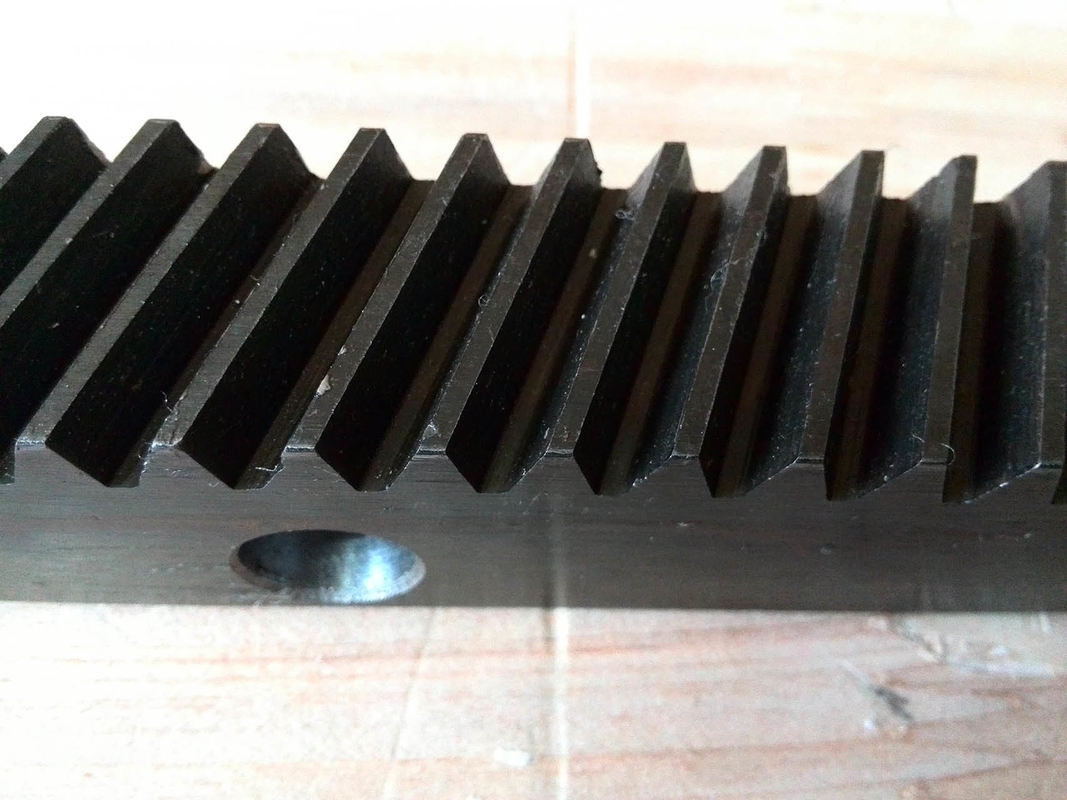

1) Description of Rack
Rack is a bra containing teeth on one face for meshing with a external gear.
The basic rak form is the profile of a gear of infinite diameter.
Racks with machined ends can be joined together to make any desired length.
2)Features of Rack
Changes a rotary motion into a rectilinear motion and vice versa.
3) Applications of Rack
Machine Tools, Automotic Dorr, Printing Presses, Robots
| Products | Rack Gears And Pinions |
| Custom Made | √ |
| Gear Profile Type | Rack Gears |
| Gear Teeth manufacturing | Gear Milling |
| Gear Teeth Grinding | If needed |
| Module (M) | Custom |
| Number of Teeth (Z) | |
| Pressure Angle (α) | 20° |
| Helix Angle (β) | Custom |
| Teeth Accuracy Grade | ISO 8-9 Grade |
| Heat Treatment | Induction Hardening |
| Surface Hardness | 200-230HB/ 40-45 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
