| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | YZTG2207001 |
| Minimum Order Quantity: | 5 Pieces |
| Price: | $150/Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 55 Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 Pieces/Month |

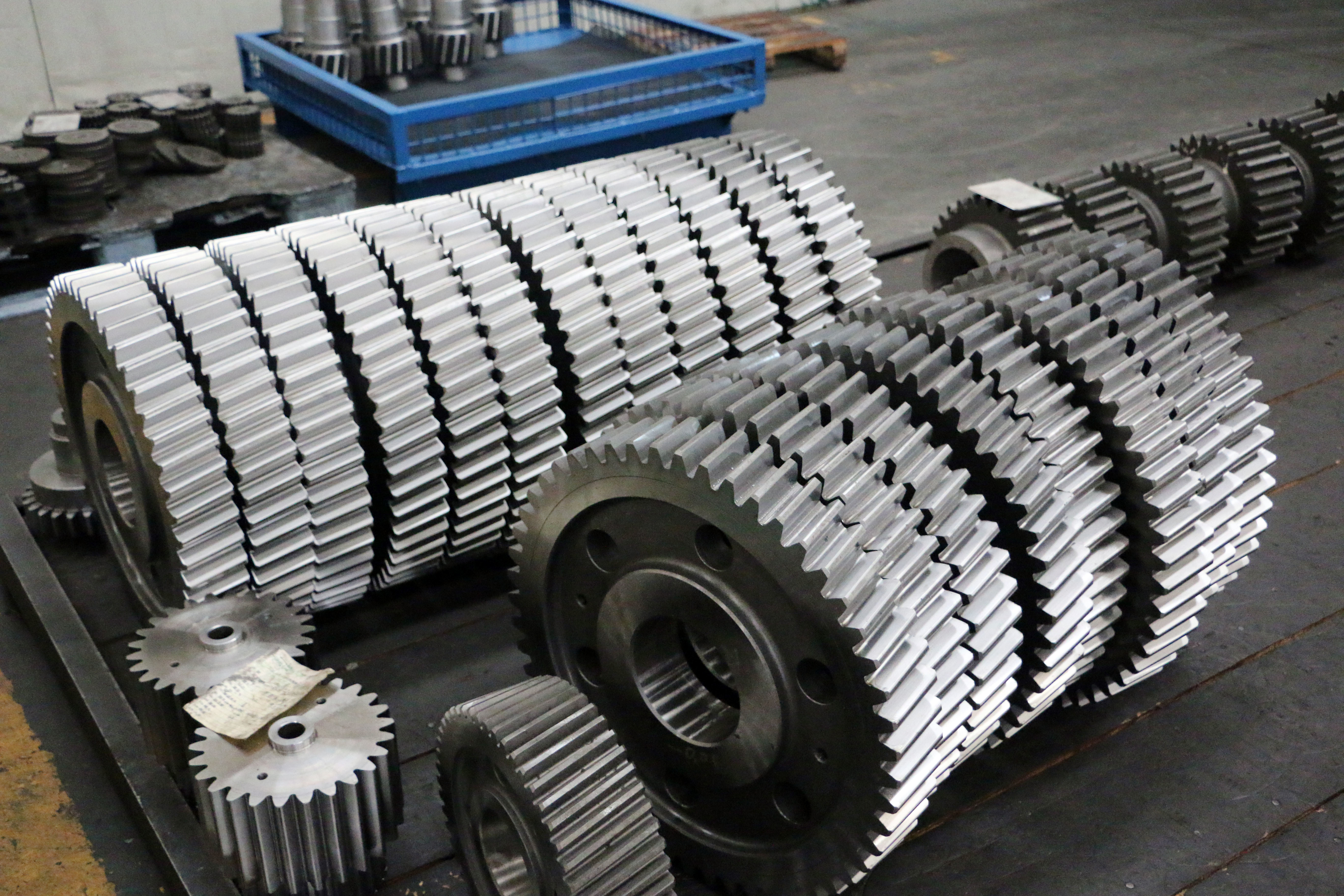

| Name: | Transmission Gears | Tip Diameter: | 530mm |
|---|---|---|---|
| Gear Profile Type: | Cylindrical Gears | Manufacturing Process: | Gear Teeth Grinding |
| Quality Grade: | ISO 6 Grade | Module: | 8 |
| Highlight: | 8 Module Transmission Gears,Customized 8 Module cylindrical gears,Helical Pinion Gear ISO 6 Grade |
||
1) Characteristics of Helical Gear
The helical gear teeth are twisted oblique to the gear axis.
The direction of helix arae left hand or right hand for helical gear.
Right-hand and left hand helical gears mate as a set and the helix angle must be same for one set.
2) Features of Helical Gear
a) Higher strength than a spur gear
b) More effective in reducting noise and vibration
c) Ger in mesh produce thrust forces in the axial direction
| Products | Helical Gears |
| Custom Made | √ |
| Gear Profile Type | Cylindrical Gears |
| Gear Teeth manufacturing | Gear Hobbing |
| Gear Teeth Grinding | √ |
| Module (M) | Custom |
| Number of Teeth (Z) | Custom |
| Pressure Angle (α) | 20° |
| Helix Angle (β) | 15° |
| Teeth Accuracy Grade | ISO 6 Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
