| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | SB2207003 |
| Minimum Order Quantity: | 2 Sets |
| Price: | $300/ Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 62 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500 Sets/Month |
| Modue: | 4.5 | Direction: | Left-Hand |
|---|---|---|---|
| Press Angle: | 20° | Hardness: | 58-62 HRC |
| Heat Treatment: | Carburizing | Quality Grade: | ISO 6 Grade AGMA 11 Grade |
| Highlight: | 4.5M Gear Grinding Spiral Bevel Gears,SAE 4320 Helical Transmission Gears,SAE 4320 Spiral Bevel Gears |
||

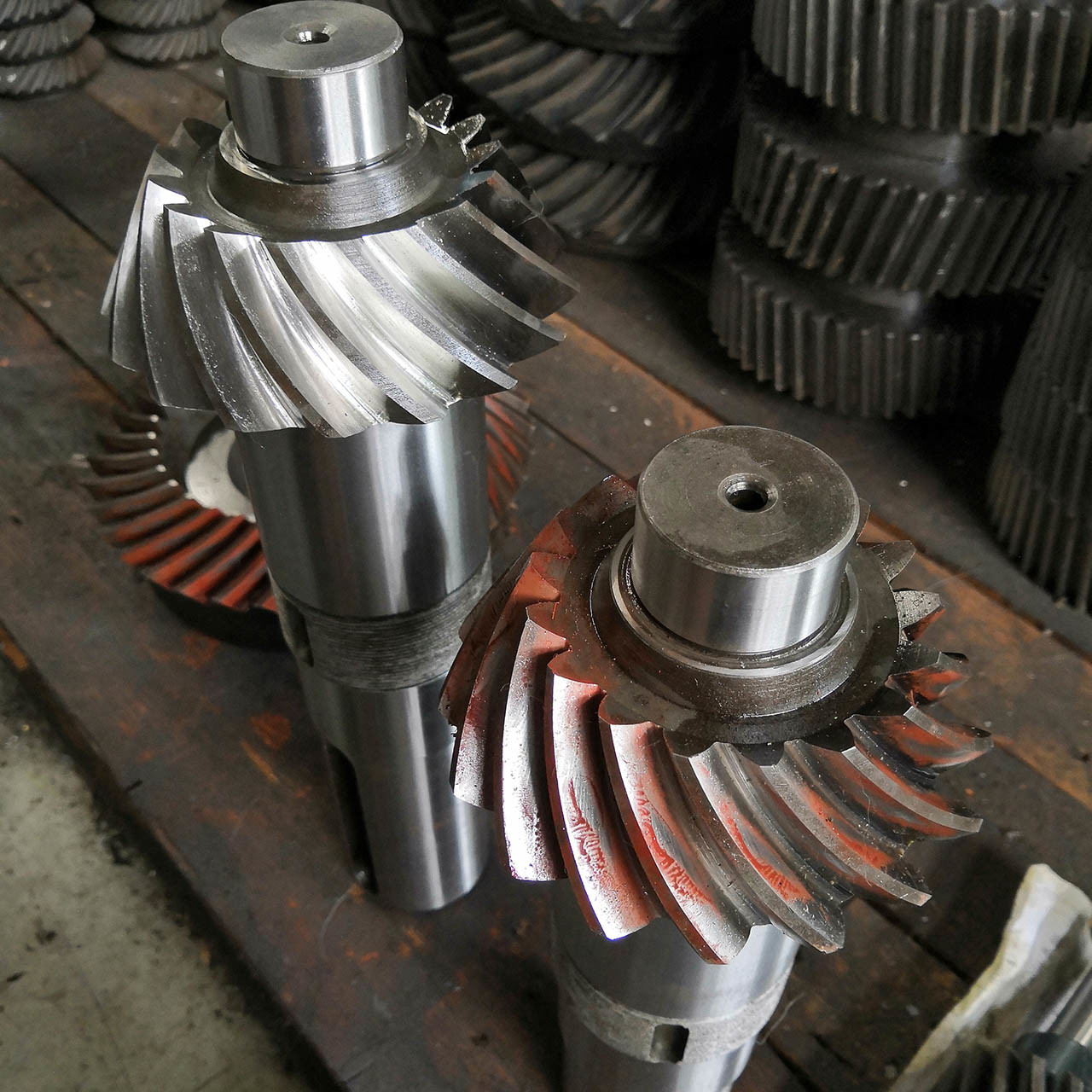

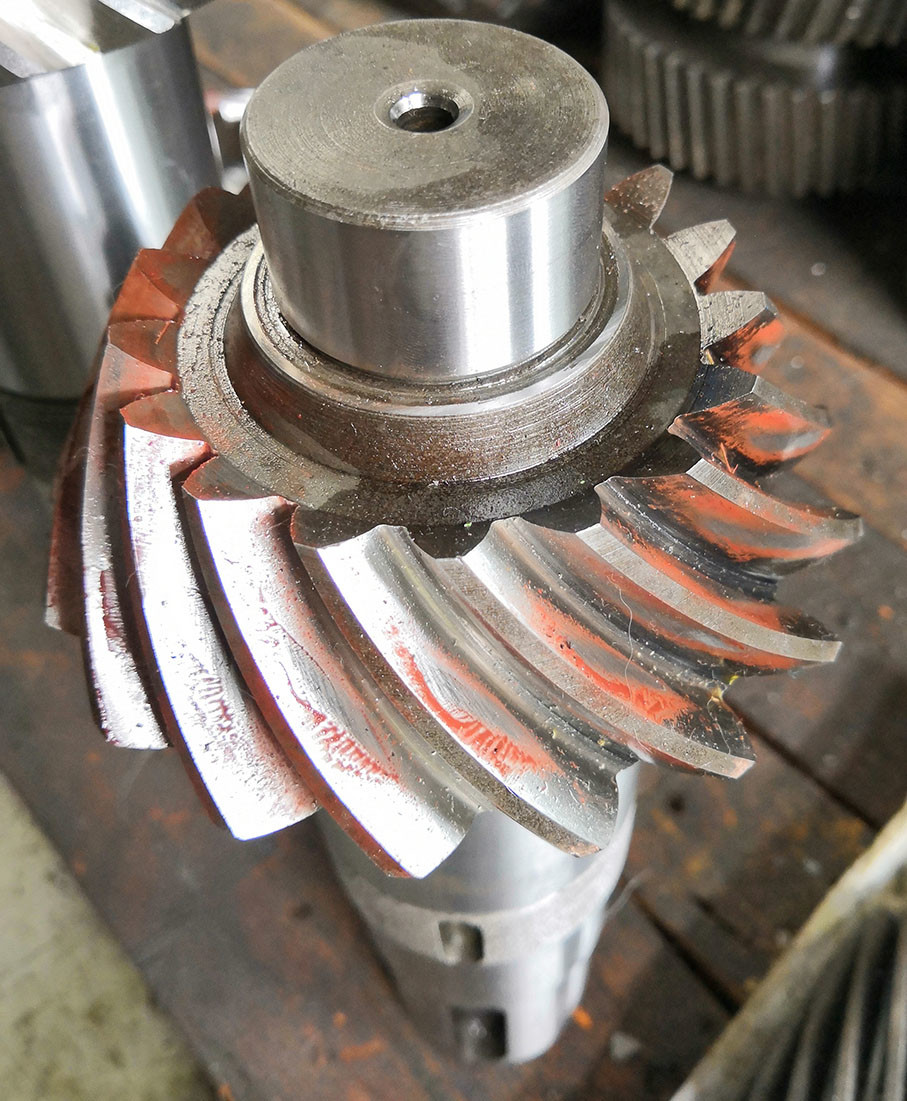

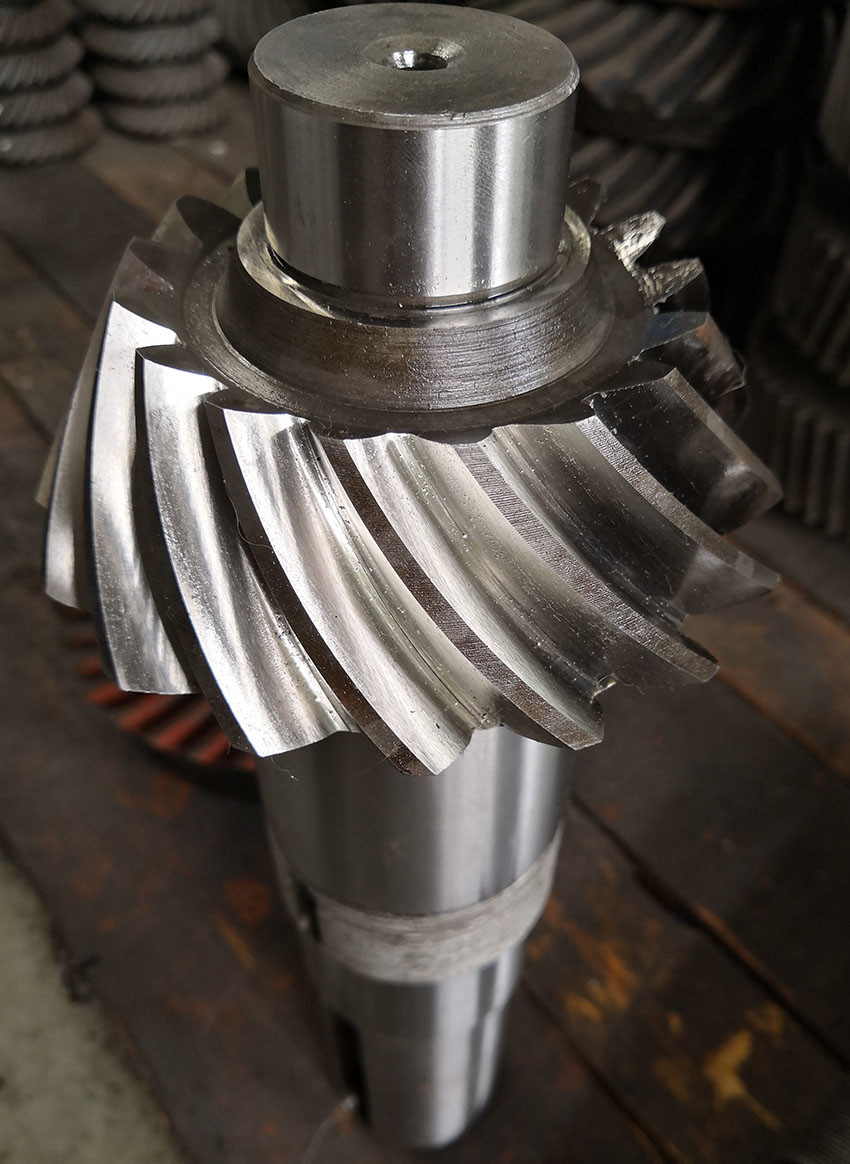

1) Description of spiral bevel gear
Spiral bevel gear is a bevel gear with helical teeth. The main application of this is in a vehicle differential.
Where the direction of drive from the drive shaft must be turned 90° to drive the wheels. The helical design
produces less vibration and noise than conventional straigh-cut or spur-cut gear with straight teeth.
2) Features of spiral bevel gear
Spiral bevel gear set should be replaced in pairs. Both the left hand and right hand gears should be
replaced together.
| Products | Spiral Bevel Gears With Internal Splines |
| Custom Made | √ |
| Material | SAE 4320/ 20CrNi2MoA |
| Gear Teeth manufacturing | Gear Milling & Gear Teeth Grinding |
| Gear Teeth Grinding | √ |
| DP | 4.5 |
| Number of Teeth (Z) | 17T |
| Pressure Angle (α) | 20° |
| Helix Angle (β) | 35° |
| Teeth Accuracy Grade | ISO 6 Grade/ AGMA 11Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
