| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | IG220805001 |
| Minimum Order Quantity: | 1 Piece |
| Price: | $700.0/Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 55 Days |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 500 Pieces/Month |
| Brand: | OEM | Tooth No.: | 201 |
|---|---|---|---|
| Hardness: | 650 HV | Quality Grade: | ISO 8-9 Grade |
| Gear Type: | Internal Gear | Module: | 5 |
| Highlight: | Planetary Drive System Internal Spur Gear,42CrMo internal involute gear,42CrMo involute Internal Spur Gear |
||

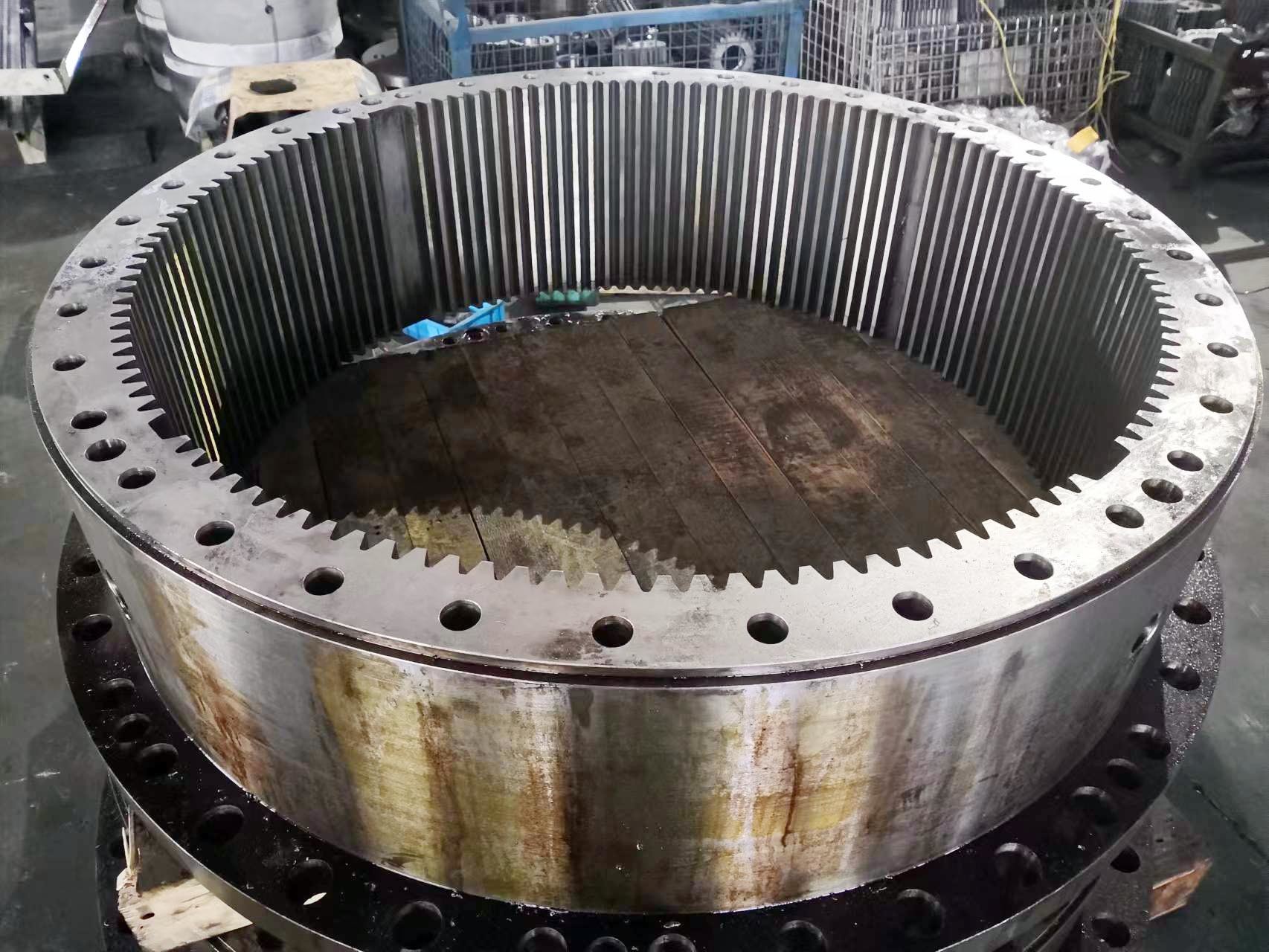

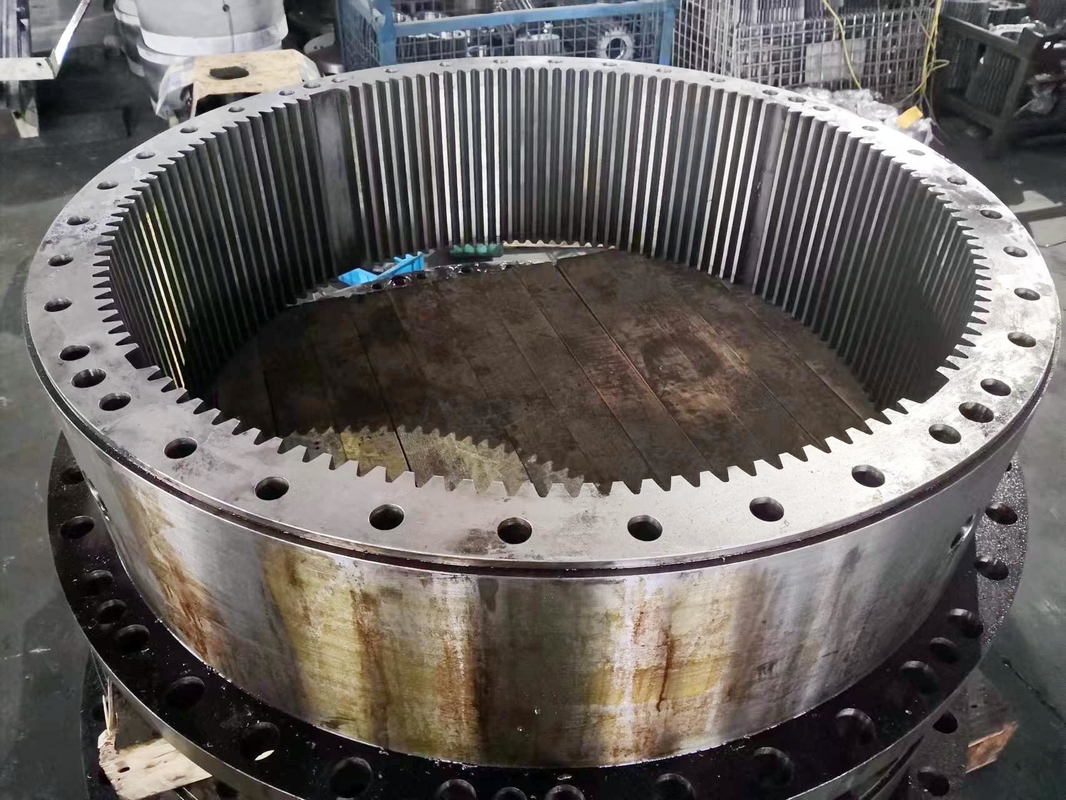

1) Material of Internal Gear
40Cr alloy steel of AISI 4140 (42CrMo) Steel is widely used for internal gear
2) Applications of Internal Gear
Planetary drive system usually need internal gear ring.
Internal gear can also be used for other power transmission system.
3) Heat treatment of Internal Gear
Nitriding Heat treatment is suggested for internal gears, because the tooth profile will with large
deformation after the carburizing heat treament.
| Products | Internal Gear |
| Custom Made | √ |
| Gear Profile Type | Cylindrical Gear |
| Gear Teeth manufacturing | Gear Shaping |
| Gear Teeth Grinding | * If needed |
| Module (M) | 5 |
| Number of Teeth (Z) | Custom |
| Pressure Angle (α) | 20° |
| Helix Angle (β) | 0 |
| Teeth Accuracy Grade | ISO 8-9 Grade |
| Heat Treatment | Nitriding |
| Hardness | 650 HV |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
