| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | SB22082105 |
| Minimum Order Quantity: | 2 Sets |
| Price: | $70/ Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 62 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500 Sets/Month |
| Module: | 12 | Pitch Diameter: | Φ476 |
|---|---|---|---|
| Outer Diameter: | Φ503.22 | Face Width: | 45mm |
| Total Height: | 70mm | Material: | SAE 4320 |
| Highlight: | AGMA 10-11 gleason bevel gear,Gleason System Bevel Gears 12 Module,12 Module gleason bevel gear |
||

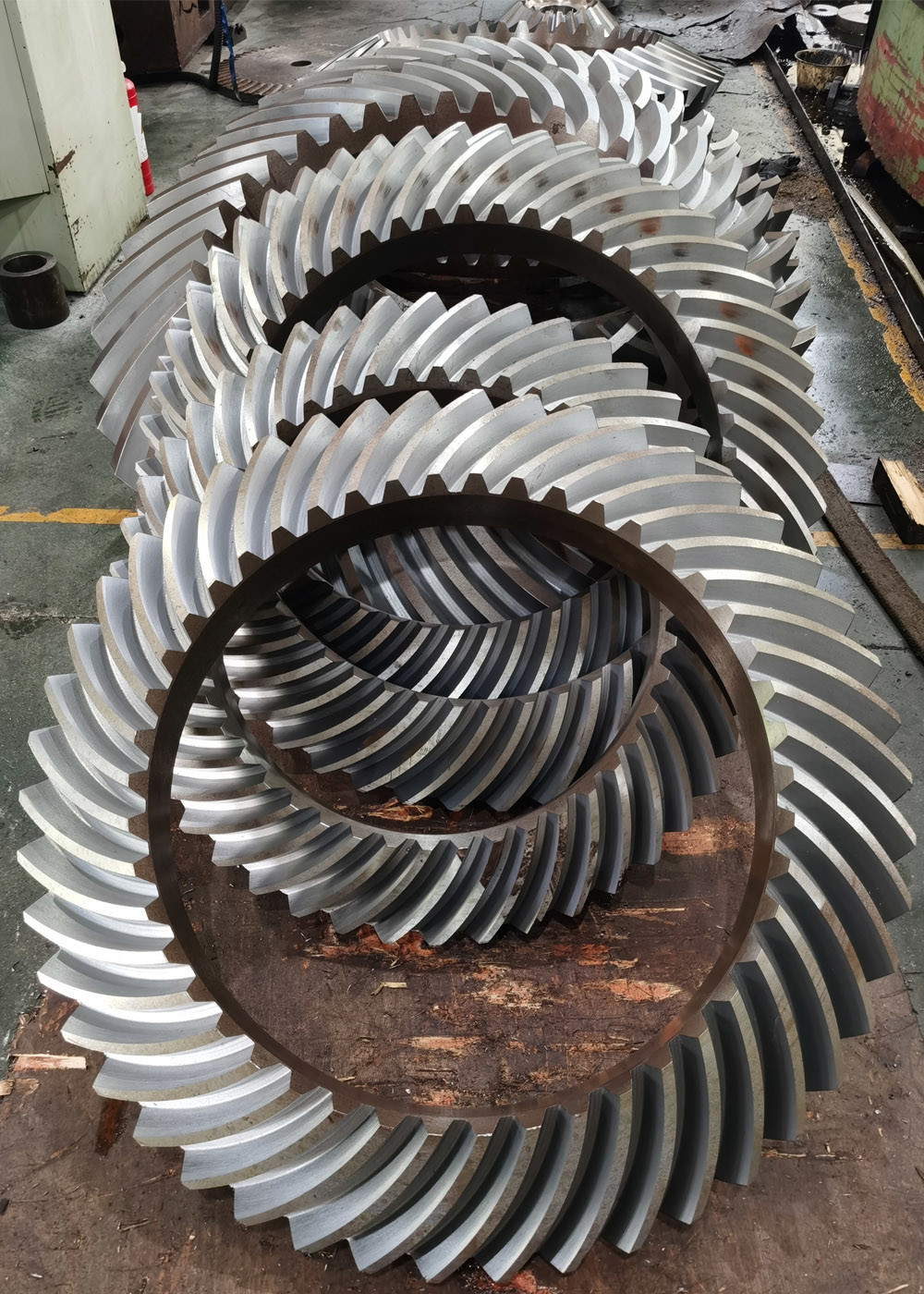

1) Features of Spiral Bevel Gear
Spiral bevel gears are designed for applications that require high speed and high torque power.
They can help cut consumer costs by providing long-lasting performance with minimal need for repairs
or replacements. With spiral bevel gears, there is no need for offsets and a significantly reduced risk of
overheating. Curved teeth and deeper traction between those teeth ensures greater asset availability to
improve flexible performance and extend equipment life.
| Products | Spiral Bevel Gear Set |
| Custom Made | √ |
| Material | SAE 4320/ 20CrNi2MoA |
| Gear Teeth manufacturing | Gear Milling/Grinding |
| Module | 12 |
| Number of Teeth (Z) | Custom |
| Pressure Angle (α) | 20° |
| Helix Angle (β) | 35° |
| Teeth Accuracy Grade | AGMA 10-11Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
