| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | GS2022082103 |
| Minimum Order Quantity: | 2 Sets |
| Price: | $2/ Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 62 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500 Sets/Month |
| Module: | 2 | Spline Type: | Involute Spline |
|---|---|---|---|
| Pressure Angle: | 30° | Material: | 20CrMnTi |
| Heat Treatment: | Carburizing | Length: | 272 |

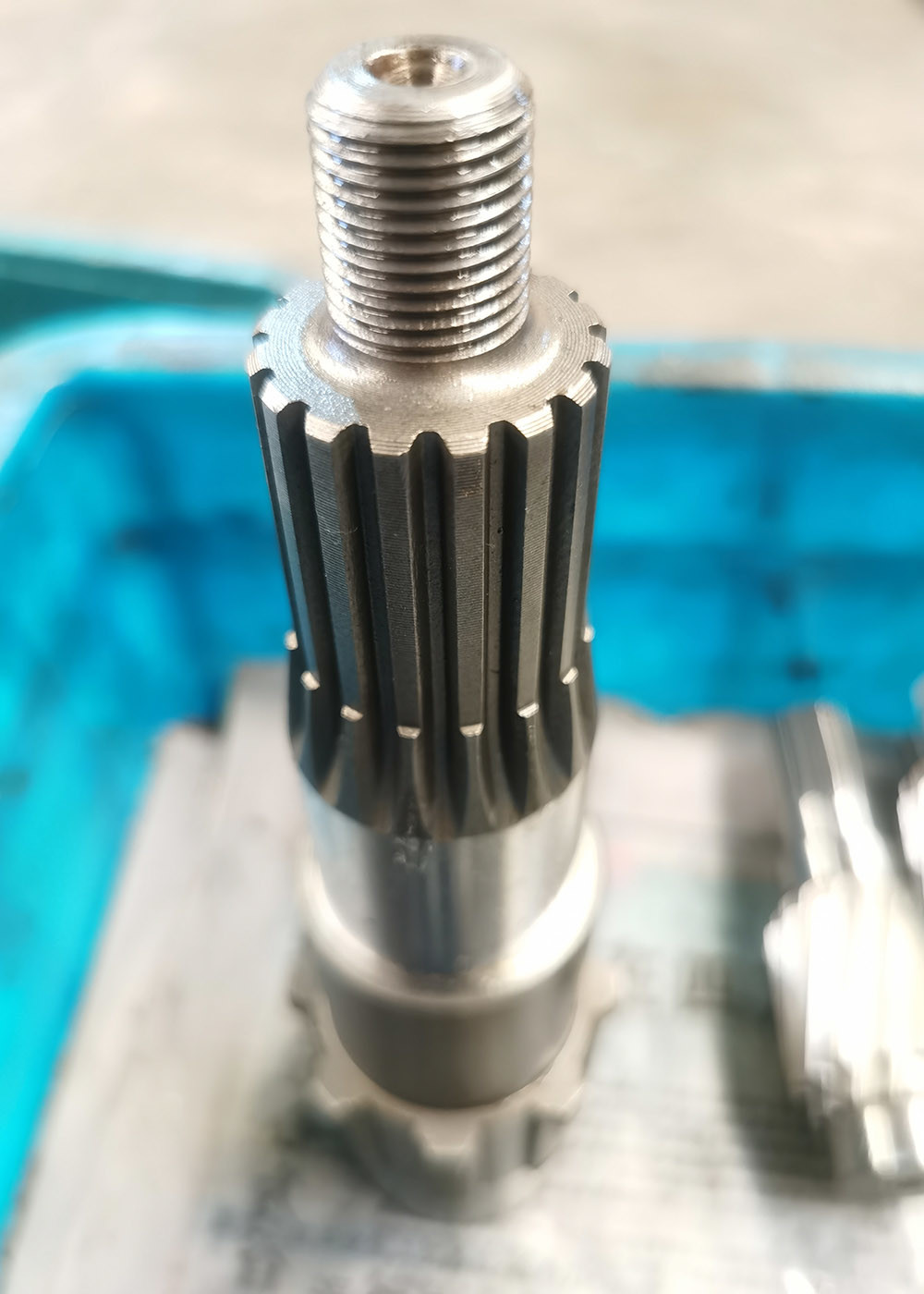

| Highlight: | 17CrNiMo6 Steel Involute Spline Shaft,2 Module Involute Spline Shaft,17CrNiMo6 Steel Involute Shaft |
||
1) Applications of Spline Shaft
a) Mechanical transmission elements such as gears and pulleys might need removing from the shaft due
to power transmission system.
b) Relative axial movement of the transmission system is required for functional purposes such as speed
reducers and clutches.
c) High torque transfer is required.
| Products | Helical Gears |
| Custom Made | √ |
| Material | 17CrNiMo6 |
| Gear Teeth manufacturing | Spline Hobbing |
| Gear Teeth Grinding | √ |
| Module | 2 |
| Pressure Angle (α) | 30° |
| Helix Angle (β) | 20° |
| Teeth Accuracy Grade | ISO 7 Grade/ AGMA 11Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
