| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | YZSPG22082402 |
| Minimum Order Quantity: | 5 Pieces |
| Price: | $150/Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 55 Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 Pieces/Month |
| Type: | Drive Unit | Module: | 18 |
|---|---|---|---|
| Length: | 1750 | Heat Treatment: | Cement |
| Quality Grade: | ISO 7 Grade | Material: | DIN 17CrNiMo6 |
| Highlight: | DIN 17CrNiMo6 Gear Drive Unit,DIN 17CrNiMo6 Transmission Gears,Cement Vertical Mill gear drive unit |
||

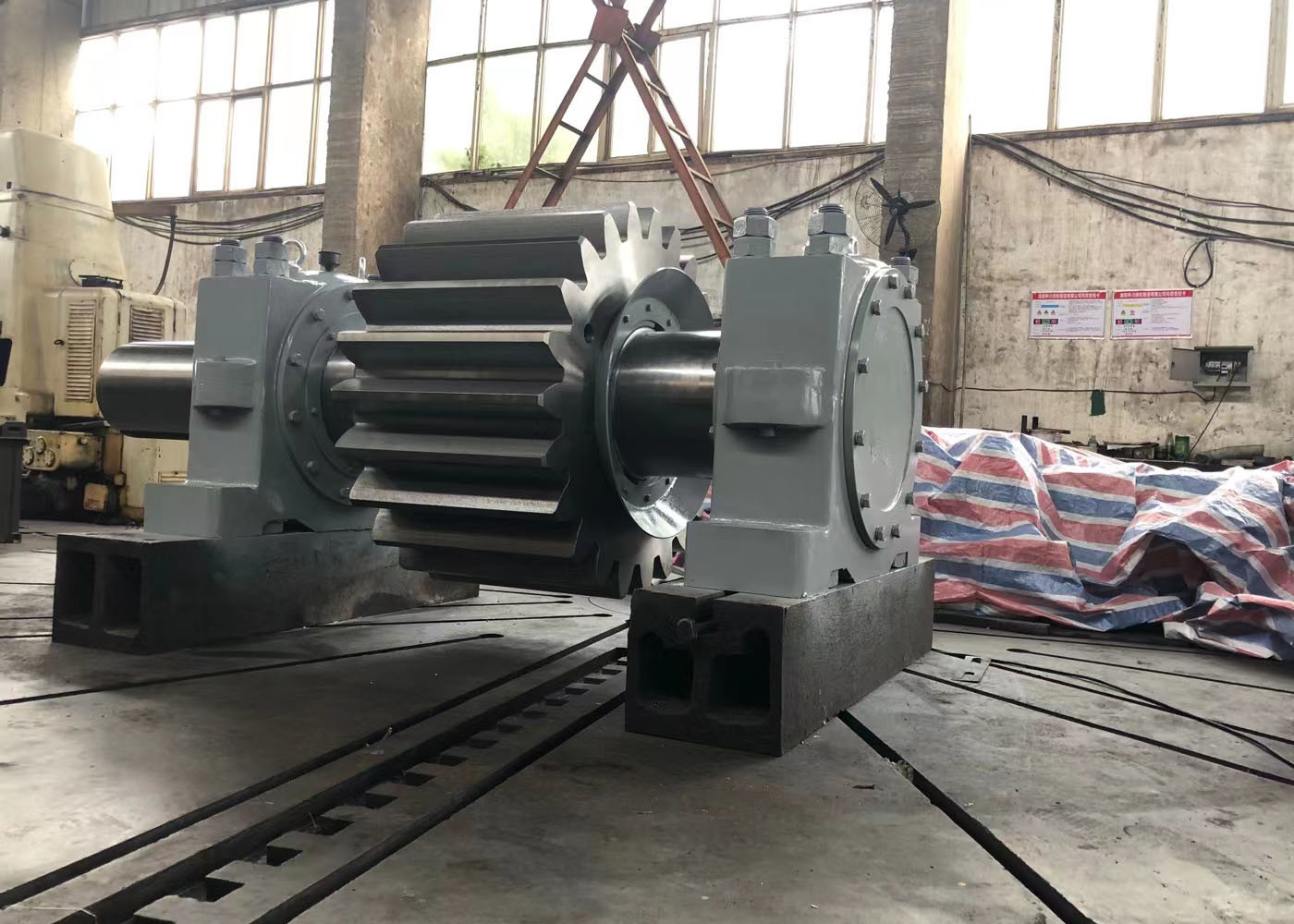

1) Description of Pinion Gear Drive Unit
The Mill Pinion gearbox is responsible for transmitting power to the work rolls of Hot and Cold mills in the
steel and aluminum industries. This type of industrial gearbox contains a 1:1 set of output gearing capable
of transmitting high torque, while experiencing regular impact loading.
| Products | Pinion Drive Unit |
| Custom Made | √ |
| Gear Profile Type | Spur Gear |
| Gear Teeth manufacturing | Gear Hobbing |
| Gear Teeth Grinding | √ |
| Hardness | ≥51 HRC |
| Hardened Depth | 1.4~1.8mm |
| Pressure Angle (α) | 20° |
| Helix Angle (β) | 0° |
| Teeth Accuracy Grade | ISO 8 Grade |
| Heat Treatment | Carburizing |
| Weight | 1200Kg |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
