| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | PPS22082402 |
| Minimum Order Quantity: | 2 Pcs |
| Price: | $1000/ Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 75 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50 Sets/Month |
| Type: | Sten Shaft | Material: | Forged Steel |
|---|---|---|---|
| Length: | 6000 | Tip Diameter: | 150mm |
| Packing: | Plywood Box | Manufacture: | Machining |
| Highlight: | 6 Meter Transmission Propeller Shaft,Propeller Shaft 150mm Dia,Forging Steel Transmission Propeller Shaft |
||

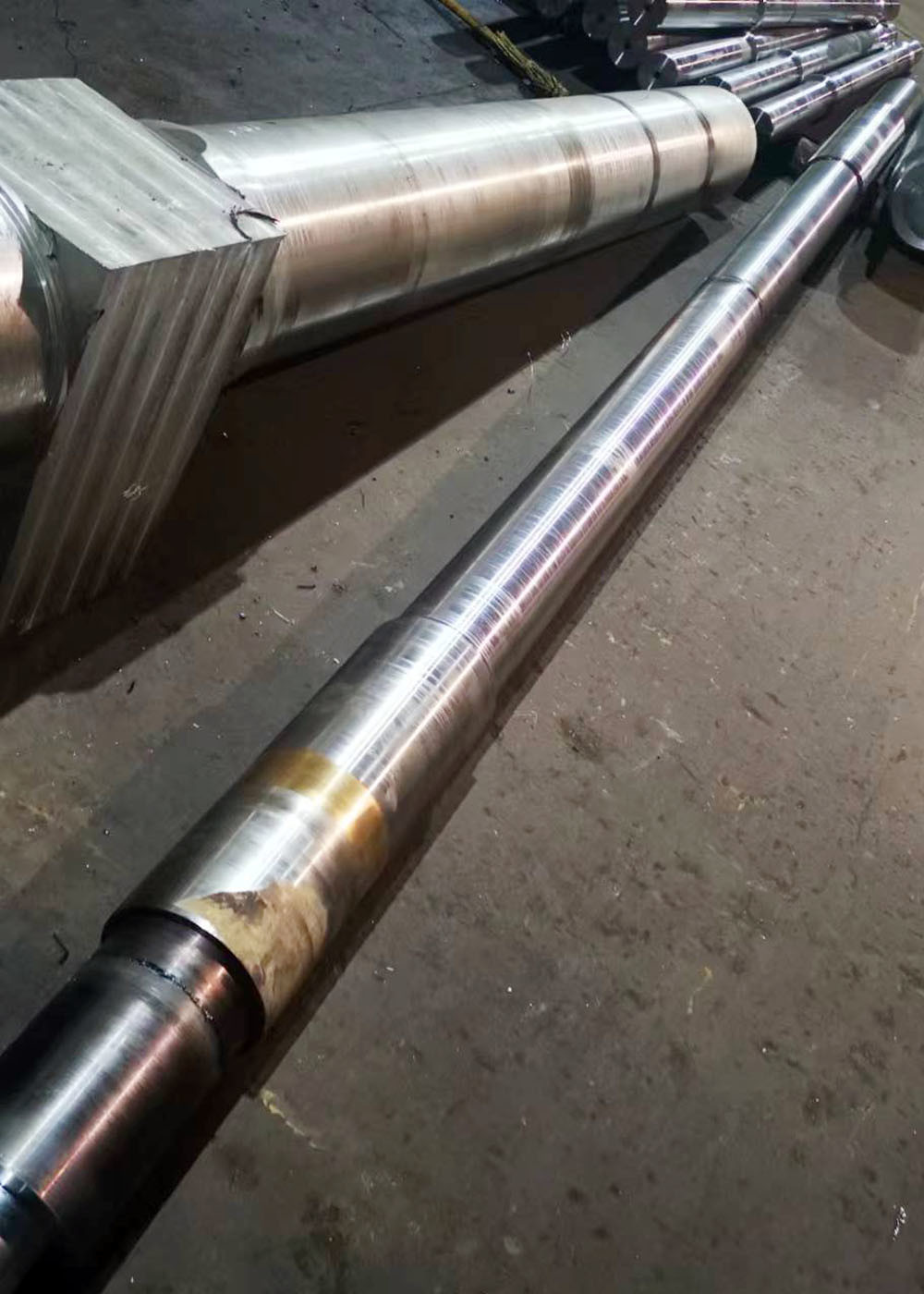

1) Description of Propeller Shaft
The function of the propeller shaft is to transmit torque between the transmission, the transfer case and
the driving axles. The propeller shaft makes it possible to connect two axes of rotation which are not exactly
in the same plane. Since the transmission and the axles move relative to each other as part of the suspension
process, the propeller shaft must be able to balance out this relative movement.
| Products | Propoller Shaft |
| Custom Made | √ |
| Profile Type | Shaft |
| Manufacturing Process | Machining |
| Surface Grinding | √ |
| Length | 6 Meter |
| Diameter | 150mm |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
