42CrMo Gear Shaping Spur Internal Ring Gear 62 Teeth 7 Module

Basic Information
Place of Origin: CHINA
Brand Name: YIZGEAR
Model Number: IG22083104
Minimum Order Quantity: 1 Piece
Price: $200.0/Piece
Packaging Details: Plywood Crate
Delivery Time: 55 Days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 500 Pieces/Month
Detail Information
Material: 42CrMo Pressure Angle: 20°
Heat Treatment: Quenching & Tempering Quality Grade: ISO 8-9 Grade
Profile: Inner Gear Ring Module: 7
Highlight:

42CrMo Spur Internal Ring Gear

,

Gear Shaping spur internal gear

,

Internal Ring Gear 62 Teeth


Product Description

Transmission Gears Gear Shaping Internal Ring Gear For Planetary Gears

1) Description of Internal Spur Gear



Los engranajes con dientes cortados en el lado interno de un cilindro ahuecado se conocen como engranajes internos.



Un engranaje externo puede engranar con un engranaje externo o interno. Cuando dos engranajes externos se engranan, rotan en direcciones opuestas.



Products Internal Gear
Custom Made
Gear Profile Type Cylindrical Gear
Gear Teeth manufacturing Gear Shaping
Gear Teeth Grinding * If needed
Module (M) 7
Number of Teeth (Z) 62
Pressure Angle (α) 20°/25°
Helix Angle (β) Custom
Teeth Accuracy Grade ISO 8-9 Grade
Heat Treatment Quenching & Tempring/ Induction Hardening
Hardness 230-260 HB



STEEL CODE GRADES COMPARISON
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi   18XГT   SMK22
20Cr2Ni4   20X2H4A
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA   40XH2MA/
40XHMA
4340 SNCM439 40NiCrMo6/
36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420

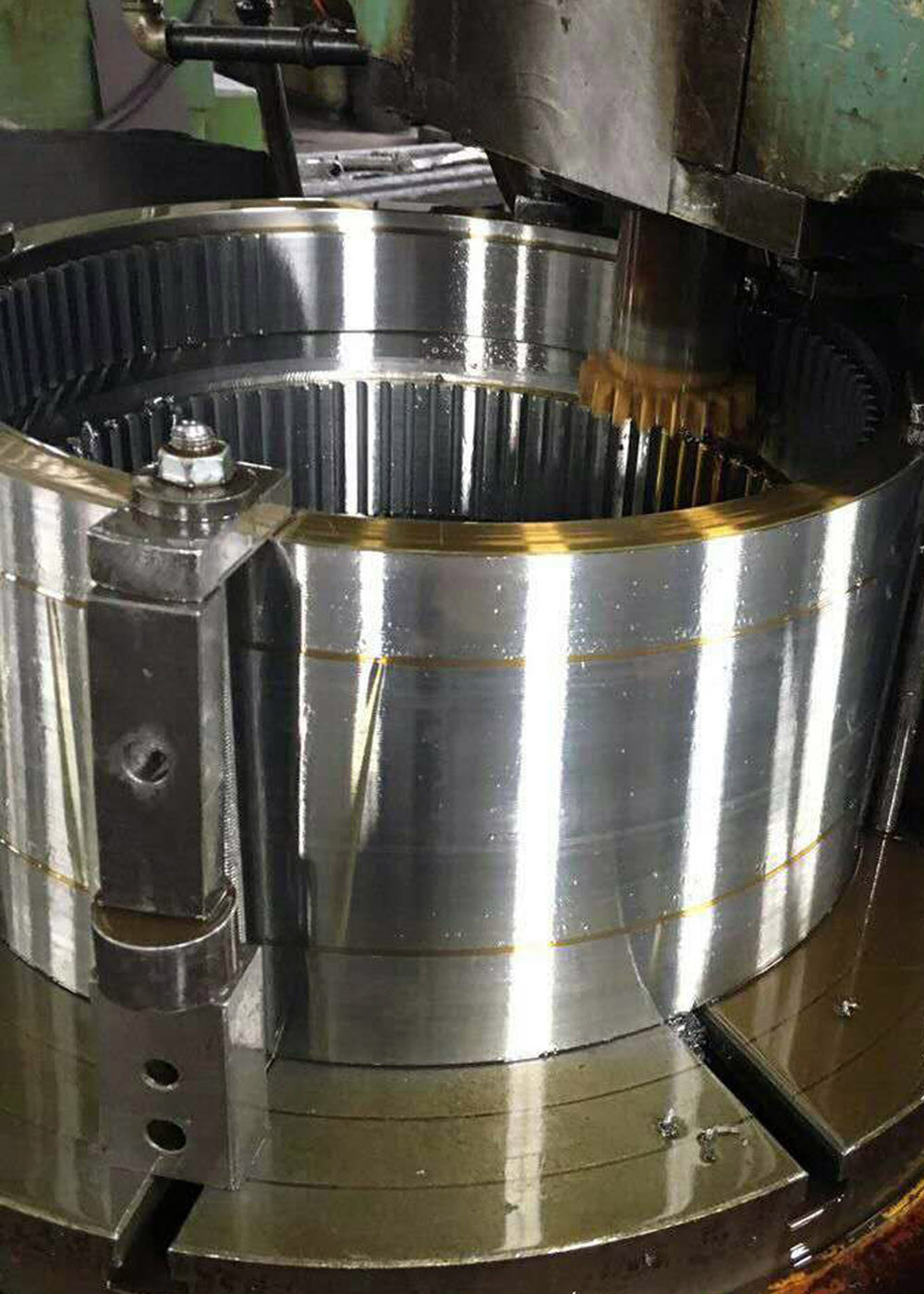

42CrMo Gear Shaping Spur Internal Ring Gear 62 Teeth 7 Module 0







42CrMo Gear Shaping Spur Internal Ring Gear 62 Teeth 7 Module 1
