| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | SS22090302 |
| Minimum Order Quantity: | 5 Pieces |
| Price: | $300.0/Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 55 Days |
| Payment Terms: | L/C, T/T, Western Union, D/P |
| Supply Ability: | 1000 Pieces/Month |
| Spline Width: | 16 | Hardened Depth: | 1.1~1.5mm |
|---|---|---|---|
| Type: | Parallel Spline | Manufacturing Process: | Spline Grinding |
| Hardness: | 58-62 HRC | Major Diameter: | 112 |

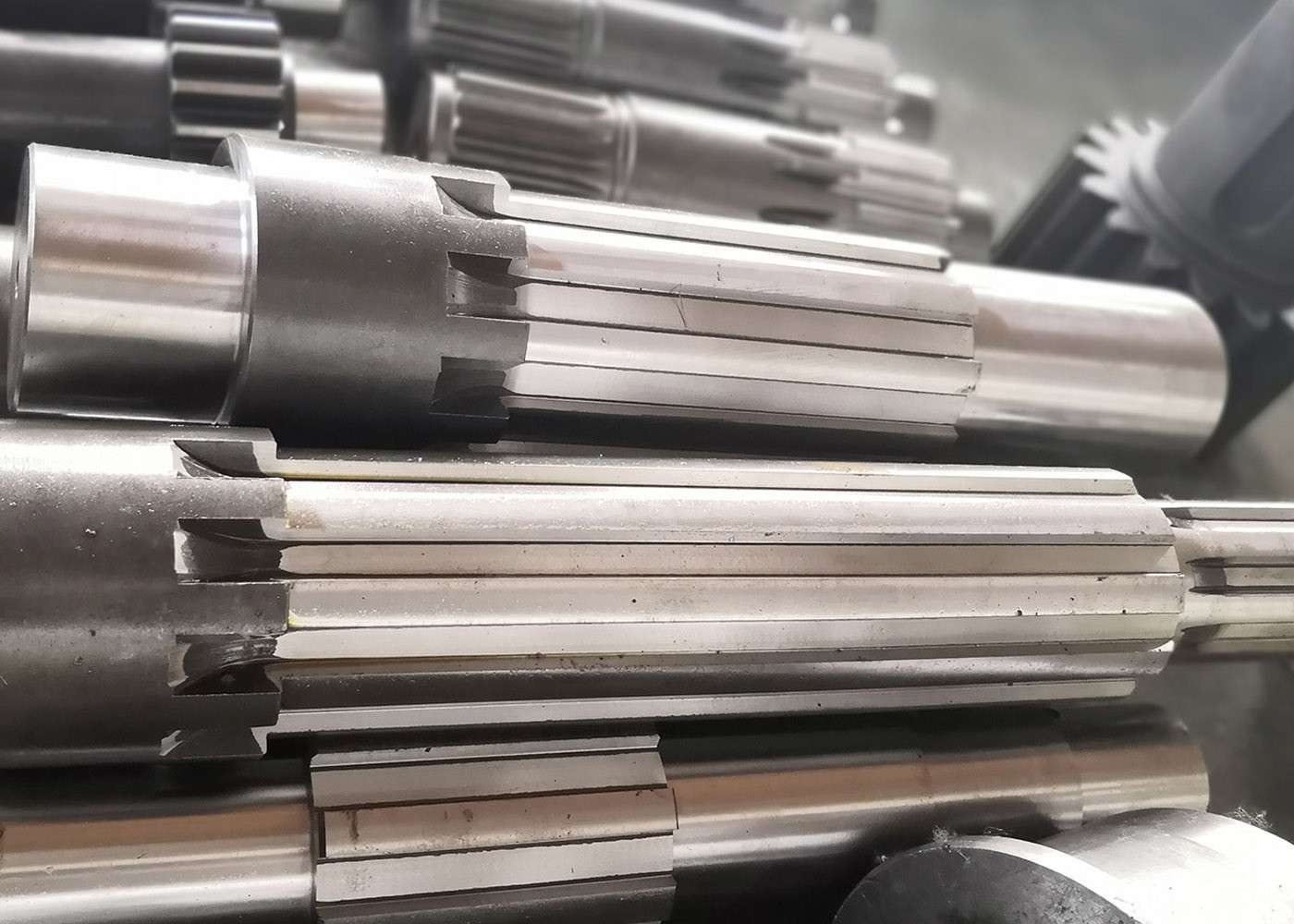

| Highlight: | Rectangular Parallel Spline Gear Shaft,Spline Grinding transmission spline shaft,Spline Gear Shaft Transmission Parts |
||
1) Manufacturing Method of Spline Shaft
Spline cutting is the process of machining internal or external splines on shafts, gears and other mechanical power transmission components, which mesh with grooves in a mating piece allowing power to be transmitted from one to another.
Splines are generally manufactured through the use of hobbing or shaper cutting for external spline teeth and via shaping or broaching for internal spline teeth.
YIZGEAR manufactures precision splines both internal and external. We have a dedicated staff that manufacture and inspect your spline projects.
| Products | Rectangular Spline Shafts |
| Custom Made | √ |
| Gear Profile Type | Spline |
| Spline Teeth manufacturing | Spline Milling |
| Spline Teeth Grinding | √ |
| Module (M) | Custom |
| Number of Teeth (Z) | Custom |
| Pressure Angle (α) | 30° |
| Helix Angle (β) | |
| Teeth Accuracy Grade | ISO 6-7 Grade |
| Heat Treatment | Carburizing/ |
| Surface Hardness | 58-62 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
