| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | SB22112203 |
| Minimum Order Quantity: | 2 Sets |
| Price: | $700/ Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 62 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500 Sets/Month |
| Width: | 120mm | Profile Type: | Gleason |
|---|---|---|---|
| Roughness: | Ra 0.8 | Outer Diameter: | 365 |
| Manufacturing: | Power Skiving | Brand: | OEM |

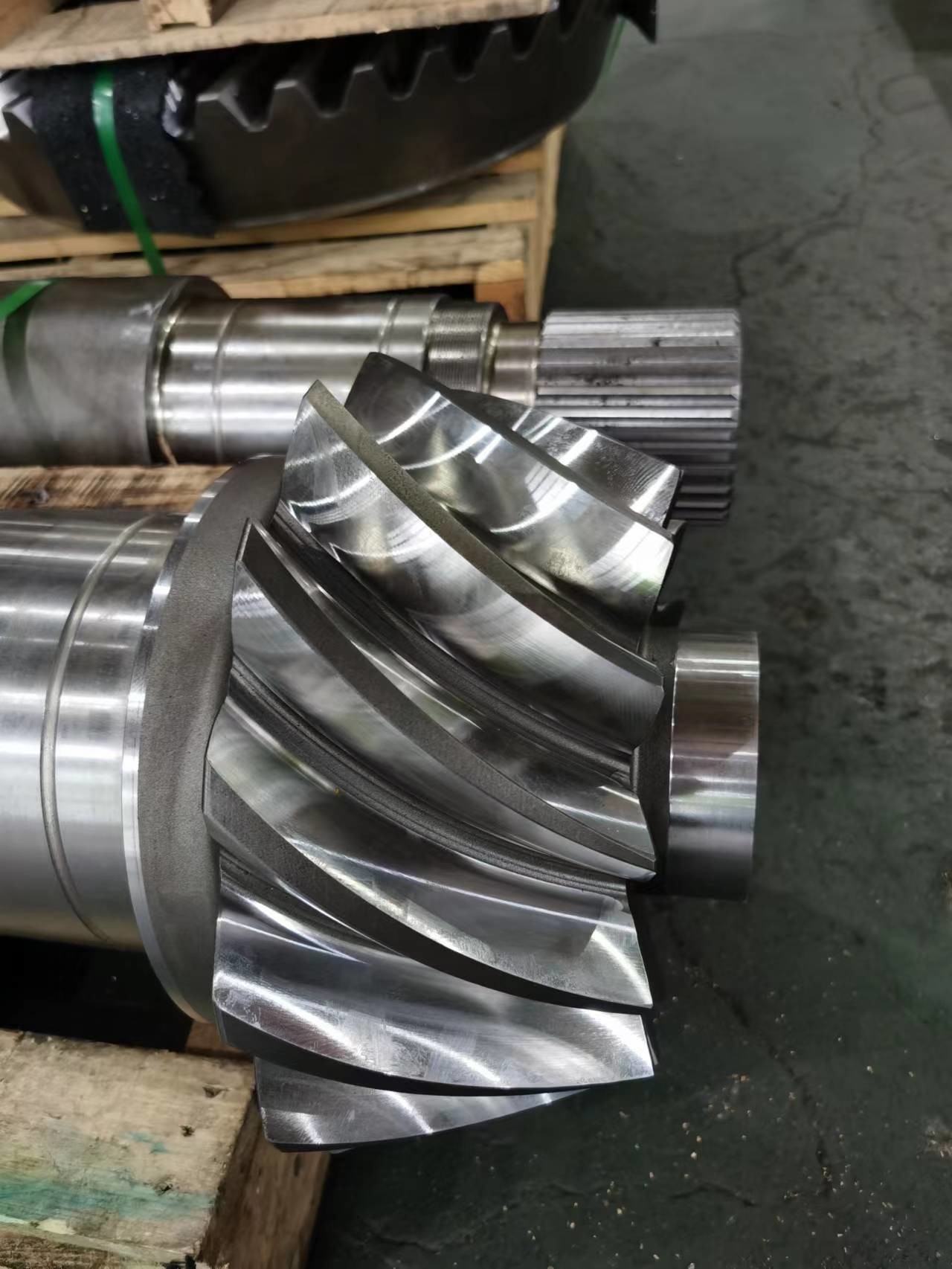

| Highlight: | Right Hand Pinion Spiral Bevel Gear,Spiral Bevel Gears With External Spline,Drive Shaft Spiral Bevel Gears |
||
1) Direction of Spiral Bevel Gear
a) Right hand
Right hand spiral bevel gear is one in which the outer half of a tooth is inclined in the clockwise direction.
b) Left hand
Left hand spiral bevel gear is one in which the outer half of a tooth is inclined in the counterclockwise direction.
2) What is power skiving?
Power skiving is a continuous cutting process that enables machining to be carried out in a single setup.
The possibility to machine the complete component in a multi-task machine or machining centre in one single set-up shortens production time, improves the quality.
| Products | Spiral Bevel Gears With External Splines |
| Custom Made | √ |
| Material | 17CrNiMo6/18CrNiMo7 |
| Gear Teeth manufacturing | Gear Milling & Gear Teeth Grinding |
| Gear Teeth Grinding | √ |
| DP | 2.54 |
| Number of Teeth (Z) | 14T |
| Pressure Angle (α) | 20° |
| Helix Angle (β) | 35° |
| Teeth Accuracy Grade | ISO 6 Grade/ AGMA 11Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
