| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | SB22112601 |
| Minimum Order Quantity: | 2 Sets |
| Price: | $300/ Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 62 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500 Sets/Month |
| Total Length: | 318 | Shaft Angle: | 90° |
|---|---|---|---|
| Module: | 7 | Material: | SAE 4320 |
| Pitch Angle: | 13°45' | Face Angle: | 16°56' |
| Highlight: | Steel Spiral Bevel Gear Shaft Helix,SAE 4320 Spiral Bevel Gears,Angle 35° Spiral Bevel Gears |
||

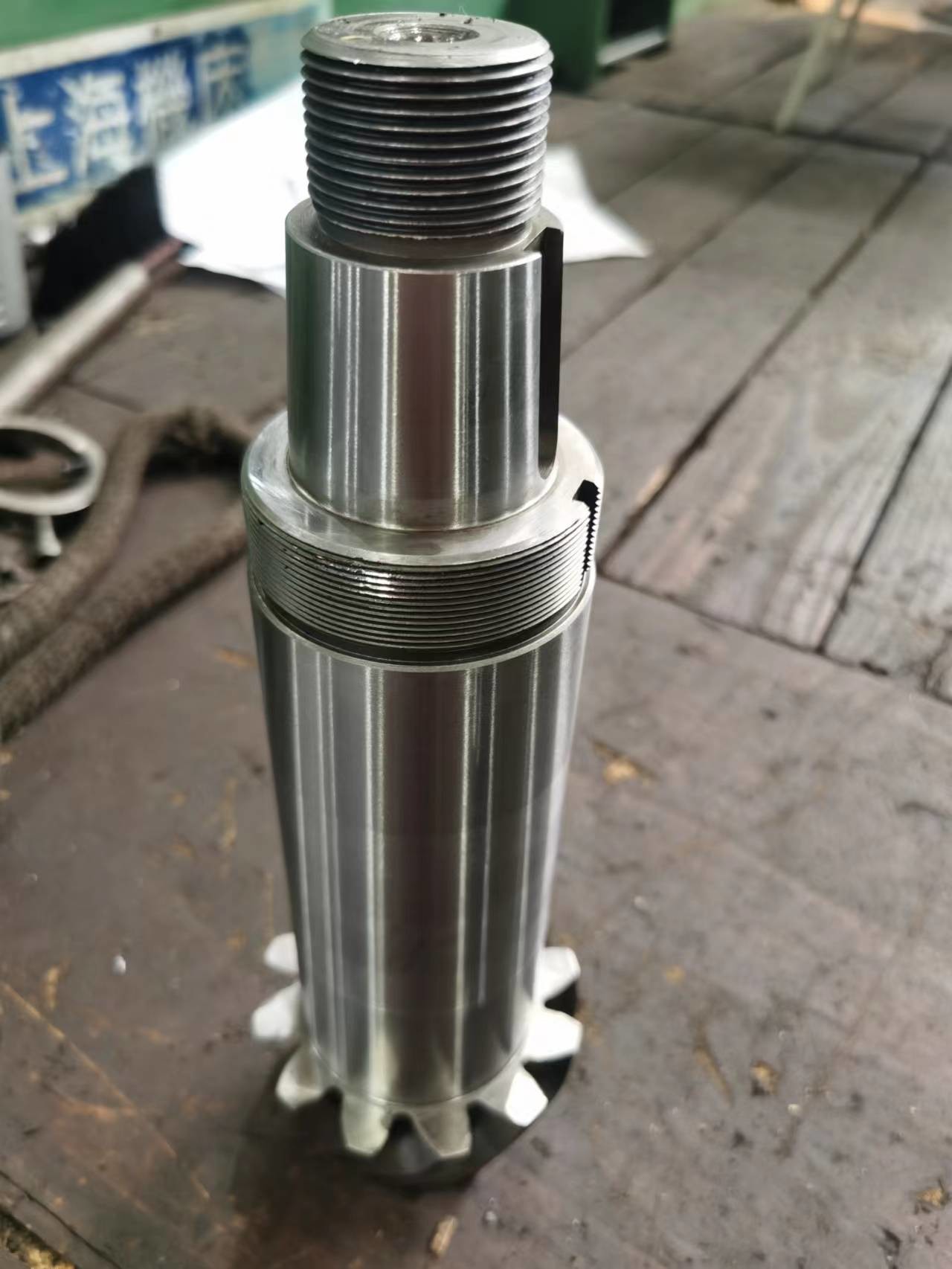

1) Descripción del eje del engranaje cónico en espiral
Dientes 12
Mn 7
Angulo De Presion 20°
Angulo De Helice 35°
2) Fabricación de engranajes cónicos en espiral
Altura 13.21
Diametro Exterior 100.54
Diametro De Paso 84.00
Tratamiento térmico de cementación 58-62 HRC
Profundidad de la capa endurecida 0.8~1,0 mm
Dureza del núcleo 35-42 HRC
Fresado de engranajes y rectificado de engranajes
| Products | Spiral Bevel Gear Shaft |
| Custom Made | √ |
| Material | SAE 4320 |
| Gear Teeth manufacturing | Gear Milling & Gear Teeth Grinding |
| Gear Teeth Grinding | √ |
| Module | 7 |
| Number of Teeth (Z) | 12 |
| Pressure Angle (α) | 20° |
| Helix Angle (β) | 35° |
| Teeth Accuracy Grade | ISO 6 Grade/ AGMA 11Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
