| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | SB22112701 |
| Minimum Order Quantity: | 2 Sets |
| Price: | $270/ Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 62 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500 Sets/Month |
| Pressure Angle: | 20° | Shaft Angle: | 90° |
|---|---|---|---|
| Helix Angle: | 35° | Material: | 17CrNiMo6 |
| Face Width: | 70 | Profie Type: | Gleason |
| Highlight: | Transmission Gear Bevel Gear Set,Steel Spiral Gear Teeth Grinding,17CrNiMo6 Spiral Bevel Gears |
||

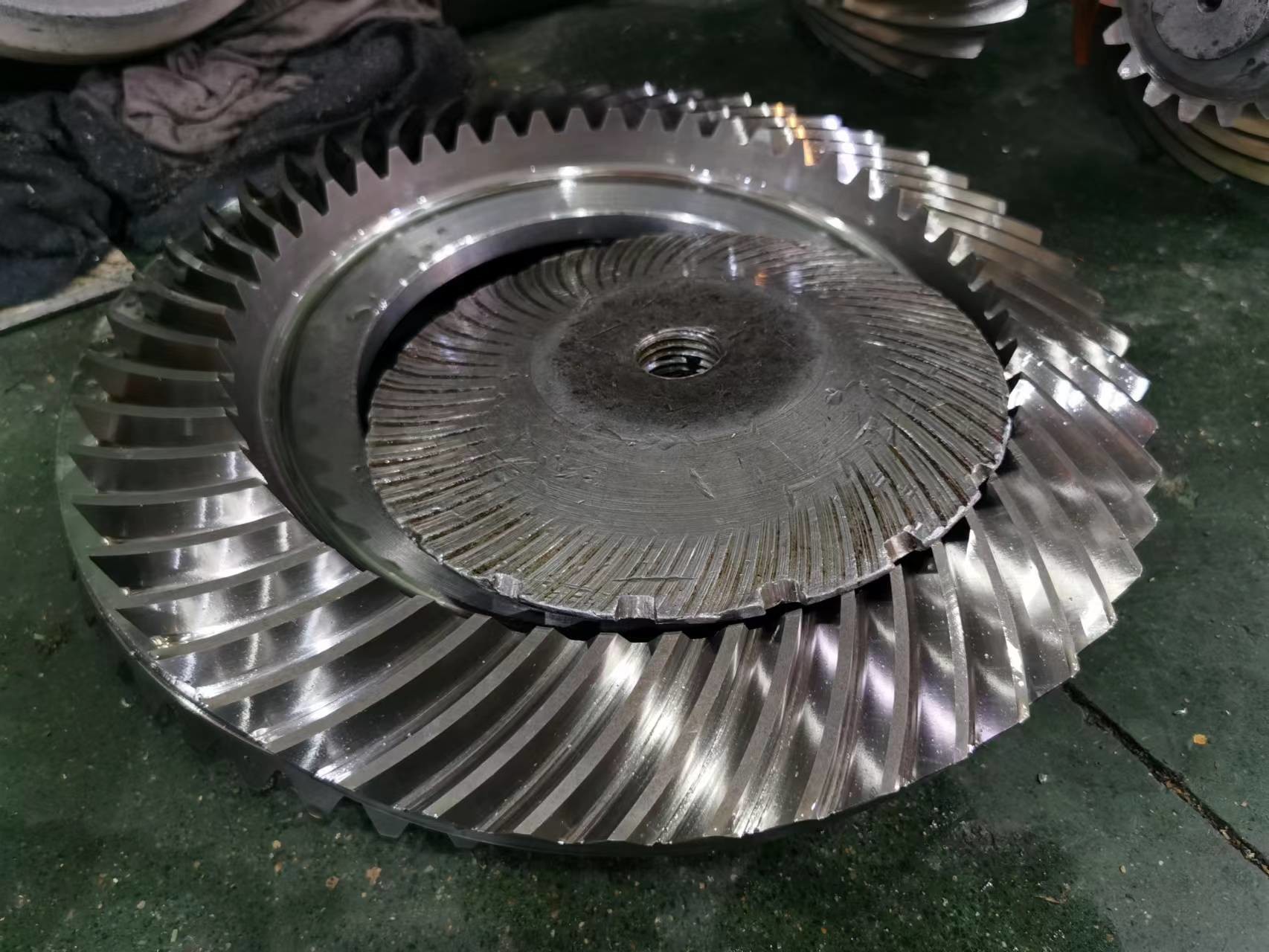

1) Production Description of Spiral bevel Gears
Módulo Gleason: 0,8 hasta 30
Tipo: tipo Gleason y Klingelnberg, prefiera el tipo Gleason
Diámetro máximo del engranaje: 2000 mm
Diámetro máximo del eje del piñón: 200 mm
Elaboración propia y cálculo de resúmenes según el método de Gleason
Siempre es mejor proporcionar las distancias de montaje.
Comprobación de los rangos de contacto en las máquinas de prueba de Gleason
Rectificado de engranajes de acabado después del tratamiento térmico.
| Products | Spiral Bevel Gear Set |
| Custom Made | √ |
| Material | 17CrNiMo6 |
| Gear Teeth manufacturing | Gear Milling |
| Gear Teeth Grinding | |
| Number of Teeth (Z) | 62T |
| Pressure Angle (α) | 20° |
| Helix Angle (β) | 35° |
| Teeth Accuracy Grade | ISO 7 Grade/ AGMA 11Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
