| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | GS2022123001 |
| Minimum Order Quantity: | 10 Pcs |
| Price: | $2/ Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 45 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5000 Sets/Month |
| Dp: | 16 | Pressure Angle: | 14.5° |
|---|---|---|---|
| Helix Angle: | 15° | Hardened Layer: | 0.6-0.9mm |
| Material: | AISI 4140/42CrMo | Heat Treatment: | Induction Hardening |

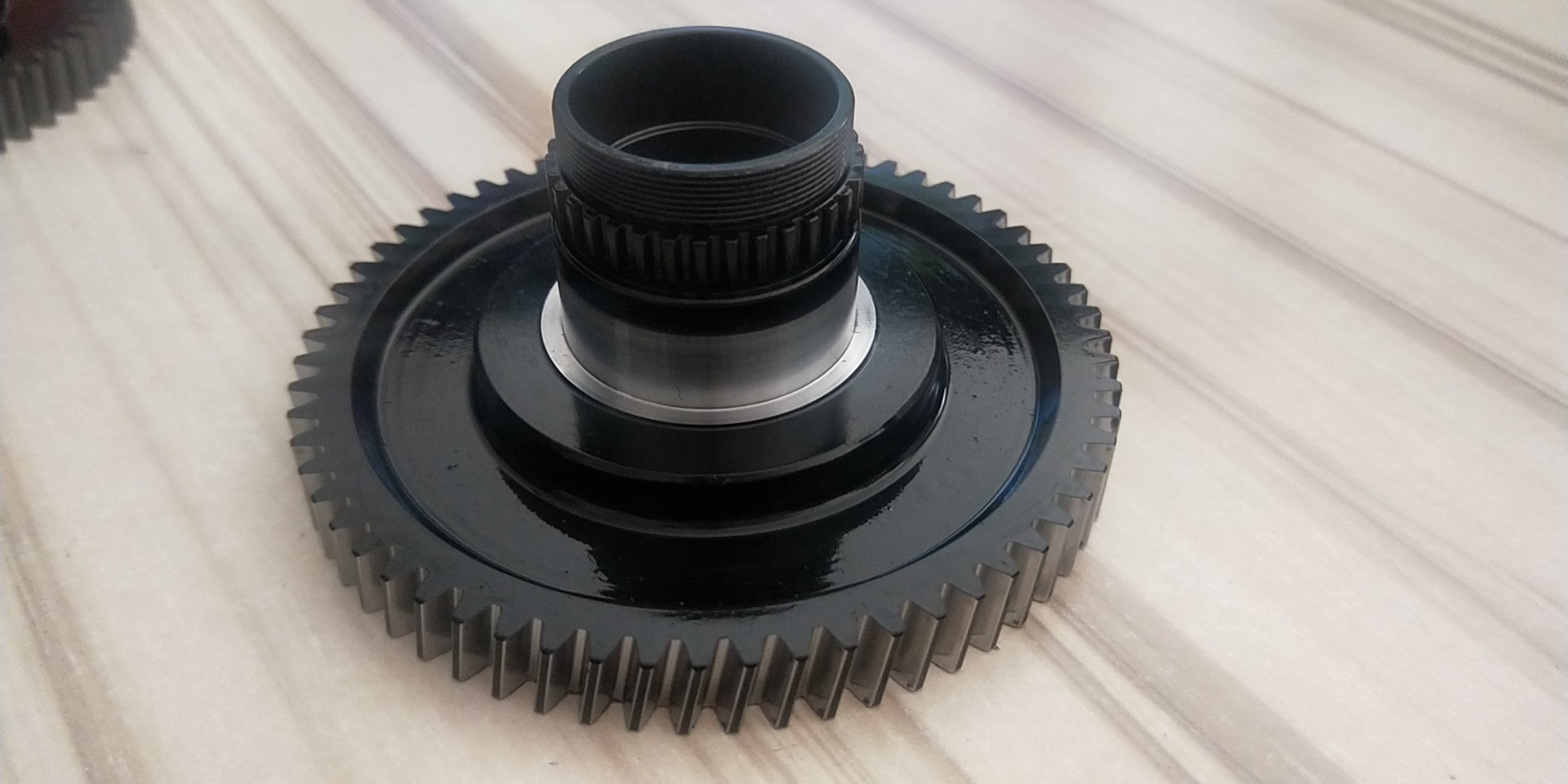

| Highlight: | Transmission Spare Parts Duplex Gear,Transmission Duplex Gear 0.9mm,AISI 4140 Transmission Duplex Gear |
||
1)Roughness of Fine Hobbing Pinion Gear
Ra 0.8~ Ra1.6
2) Heat Treatment
Induction Hardened
3) Surface Hardness
50-55 HRC
4)Surface Treatment
Black Oxidation
| Products | Helical Gears/Spline Shaft |
| Custom Made | √ |
| Material | 42CrMo |
| Gear Teeth manufacturing | Gear Hobbing |
| Gear Teeth Grinding | √ |
| Module | 1.5 |
| Pressure Angle (α) | 14.5° |
| Helix Angle (β) | 15° |
| Teeth Accuracy Grade | ISO 7 Grade/ AGMA 11Grade |
| Heat Treatment | Induction Hardening |
| Surface Hardness | 50-55 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
