| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YZGEAR |
| Model Number: | BG22123004 |
| Minimum Order Quantity: | 1 Set |
| Price: | $300.0/Set |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 55 Days |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 200 Sets/Month |
| Material: | 20CrNi2MoA/ SAE 4320 | Heat Treatment: | Carburzing |
|---|---|---|---|
| Whole Hardness: | Pinion 58-62 HRC | Quality Grade: | ISO 8-9 Grade |
| Module: | 11.5 | Gear Teeth Number: | 26T |
| Highlight: | SAE 4320 Straight Bevel Gear,Straight Bevel Gear For Mining Equipment,Pinion 58 HRC Straight Bevel Gear |
||
1) Applications of straight bevel gear
Cone Crusher, Electric tools.
2) Heat treatment of Pinion Straight Bevel Gear
Carburizing Heat Treatment for Pinion Gear
4)Material of Straight Bevel Gear
20CrNiMo (Similar to AISI 8620)
| Products | Straight Bevel Gear |
| Custom Made | √ |
| Shaft Angle | 90° |

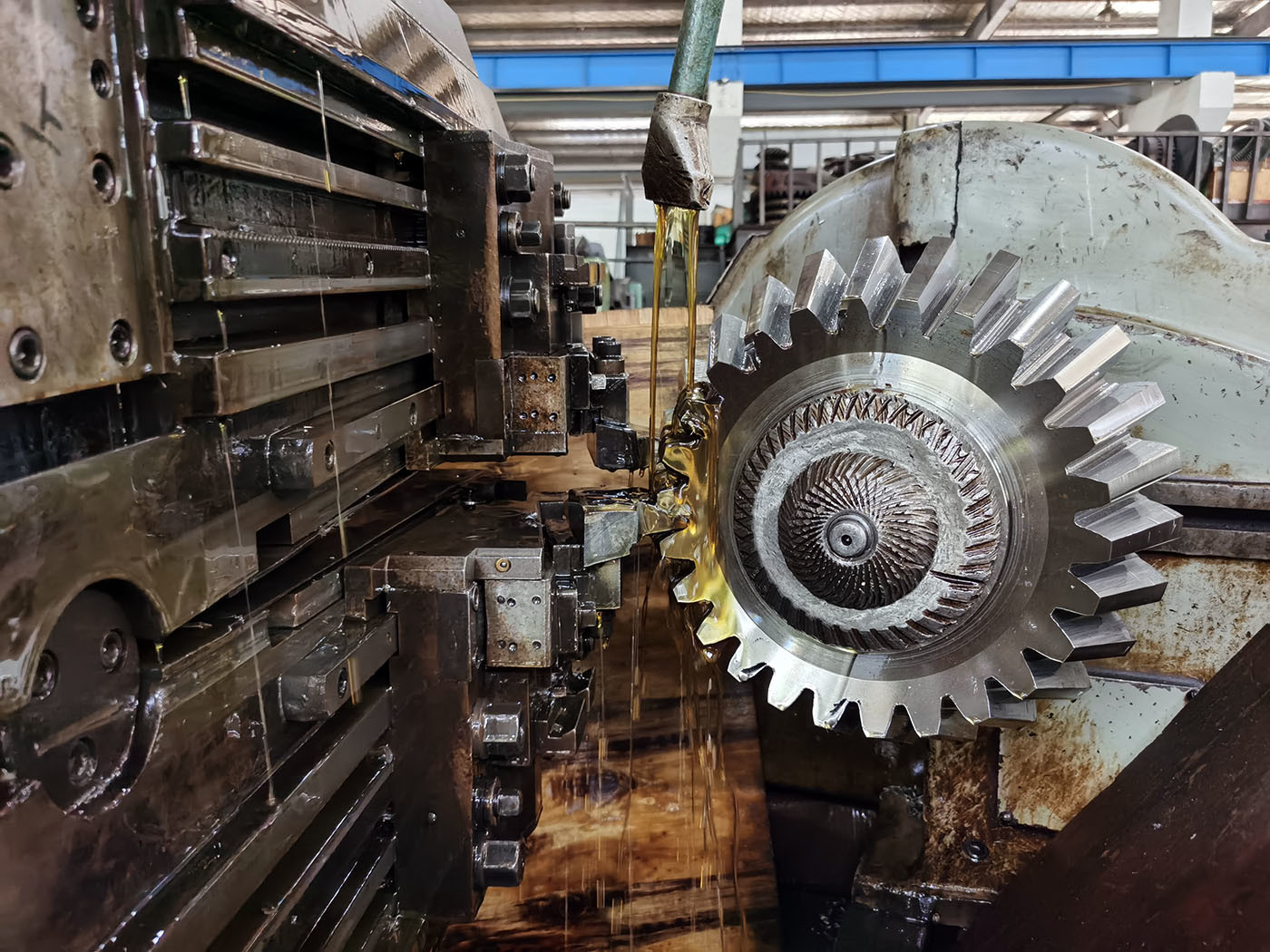

| Gear Teeth manufacturing | Gear Shaping |
| Gear Teeth Grinding | |
| Module (M) | 11.5 |
| Number of Teeth (Z) | 26/60 |
| Pressure Angle (α) | 20° |
| Helix Angle (β) | |
| Teeth Accuracy Grade | ISO 8-9 Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | Pinion 58-62 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
