| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YZGEAR |
| Model Number: | BG22123005 |
| Minimum Order Quantity: | 1 Set |
| Price: | $1300.0/Set |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 55 Days |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 200 Sets/Month |

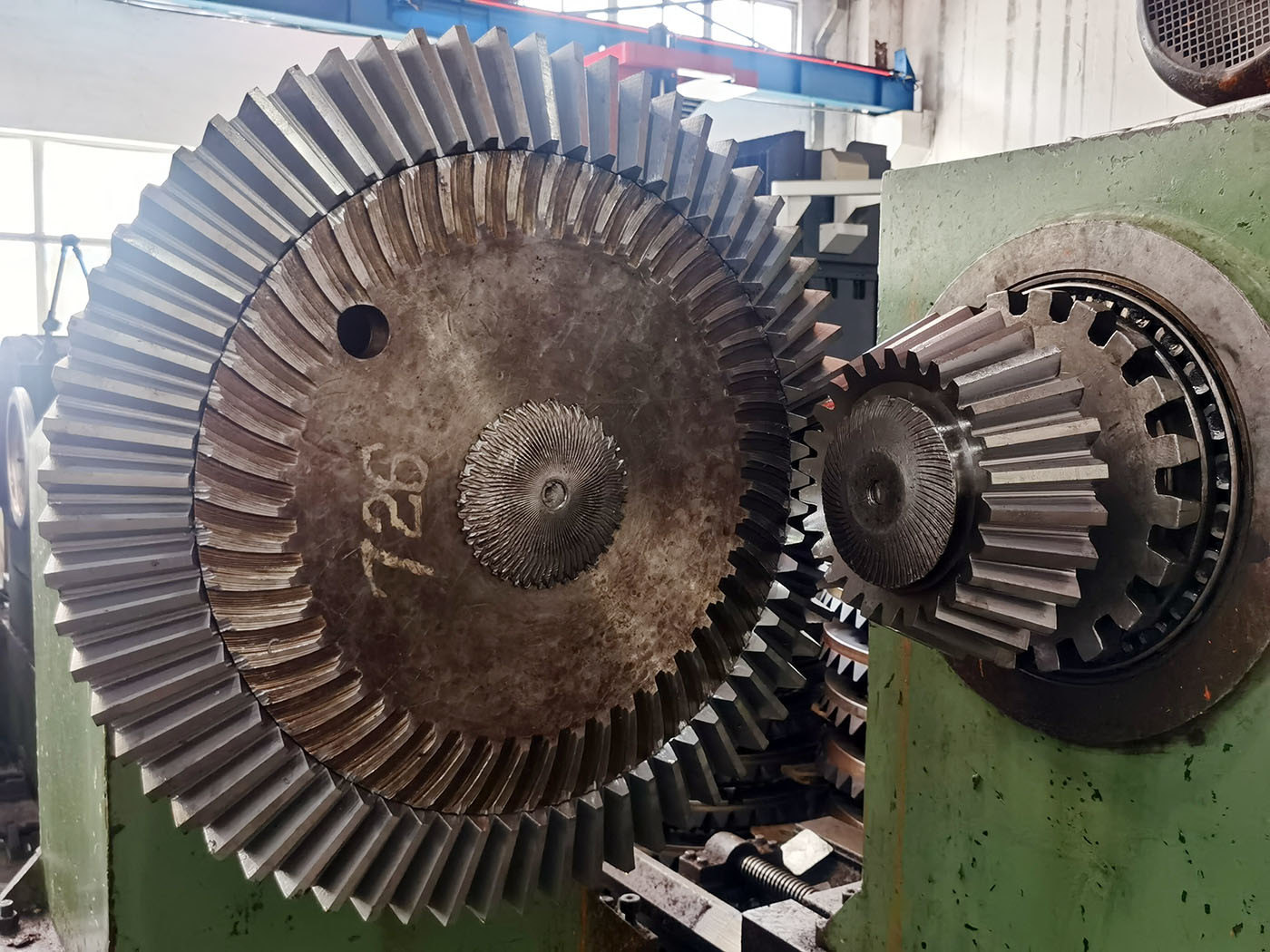

| Application: | Cone Crusher | Ratio: | 1:2.5 |
|---|---|---|---|
| Dedendum: | 17.5 | Addendum: | 14 |
| Module: | 14 | Gear Teeth Number: | 26T/65T |
| Highlight: | Straight Bevel Gear 55 HRC,Gear Shaping Straight Bevel Gear,Straight Bevel Gear Of Cone Crusher |
||
1) Working Angle
90°
2) Heat treatment of Bevel Gear
Pinion Gear: Carburizing
Gear: Induction Hardened
3)Material of Straight Bevel Gear
Gear: SAE 4340/ 40CrNiMoA. or AISI 4140/42CrMo
Pinion: AISI 8620/ 20CrNiMo (Similar to AISI 8620)
| Products | Straight Bevel Gear |
| Custom Made | √ |
| Shaft Angle | 90° |
| Gear Teeth manufacturing | Gear Shaping |
| Gear Teeth Grinding | |
| Module (M) | 11.5 |
| Number of Teeth (Z) | 26/60 |
| Pressure Angle (α) | 20° |
| Helix Angle (β) | |
| Teeth Accuracy Grade | ISO 8-9 Grade |
| Heat Treatment | Induction Hardened/Carburizing |
| Surface Hardness | Pinion 58-62 HRC/Gear 50-55 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
