| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YZGEAR |
| Model Number: | BG22123104 |
| Minimum Order Quantity: | 1 Set |
| Price: | $300.0/Set |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 55 Days |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 200 Sets/Month |
| Numero De Dentes: | 60 | Pressure Angle: | 20° |
|---|---|---|---|
| Angulo Primitivo: | 70.71° | Angulo Interno: | 68.45° |
| Hardness: | 50-55 HRC | Module Normal: | 12.5 |
| Highlight: | Hardened Straight Conical Gear,Straight Conical Gear For Cone Crusher,Alloy Steel Straight Conical Gear |
||
1) Material del engranaje cónico recto
40CrNiMoA (similar a SAE 4340)
2) Tratamiento térmico de engranajes cónicos
Templado por inducción para engranajes cónicos accionados
3) Aplicaciones de engranajes cónicos rectos
Trituradora de cono, herramientas eléctricas.

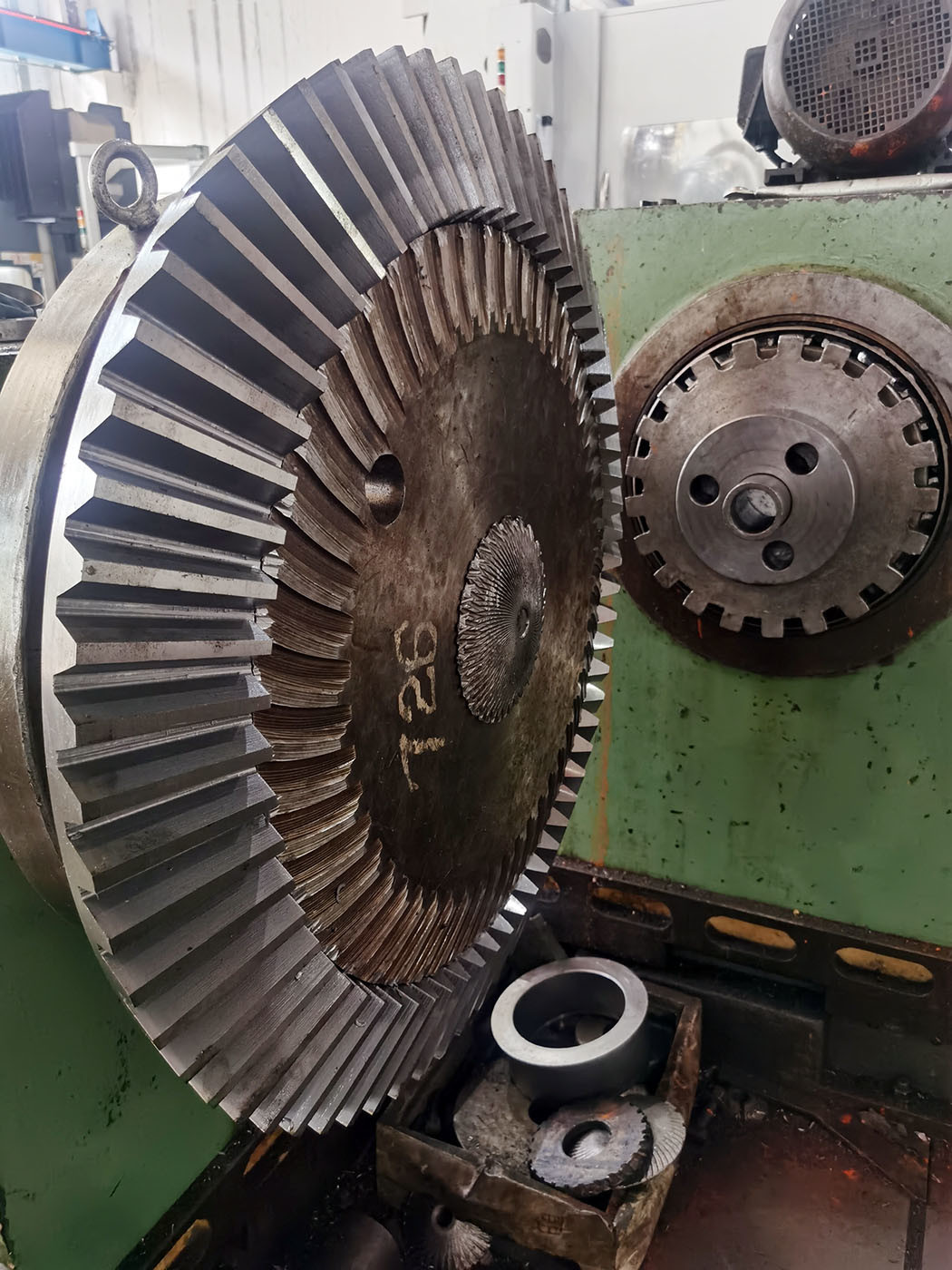

| Products | Straight Conical Gear |
| Custom Made | √ |
| Shaft Angle | 90° |
| Gear Teeth manufacturing | Gear Shaping |
| Gear Teeth Grinding | |
| Module (M) | 12.5 |
| Number of Teeth (Z) | 21/60 |
| Pressure Angle (α) | 20° |
| Helix Angle (β) | |
| Teeth Accuracy Grade | ISO 8-9 Grade |
| Heat Treatment | Induction hardened |
| Surface Hardness | 50-55 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
