| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YZGEAR |
| Model Number: | BG23010101 |
| Minimum Order Quantity: | 1 Set |
| Price: | $300.0/Set |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 55 Days |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 200 Sets/Month |
| Module: | 14 | Tooth Number: | 26 |
|---|---|---|---|
| Teeth Type: | Straight Bevel Gear | Accuracy Grade: | ISO 8-9 Grade |
| Materail: | SAE 4320 | Tip Diameter: | 390 |

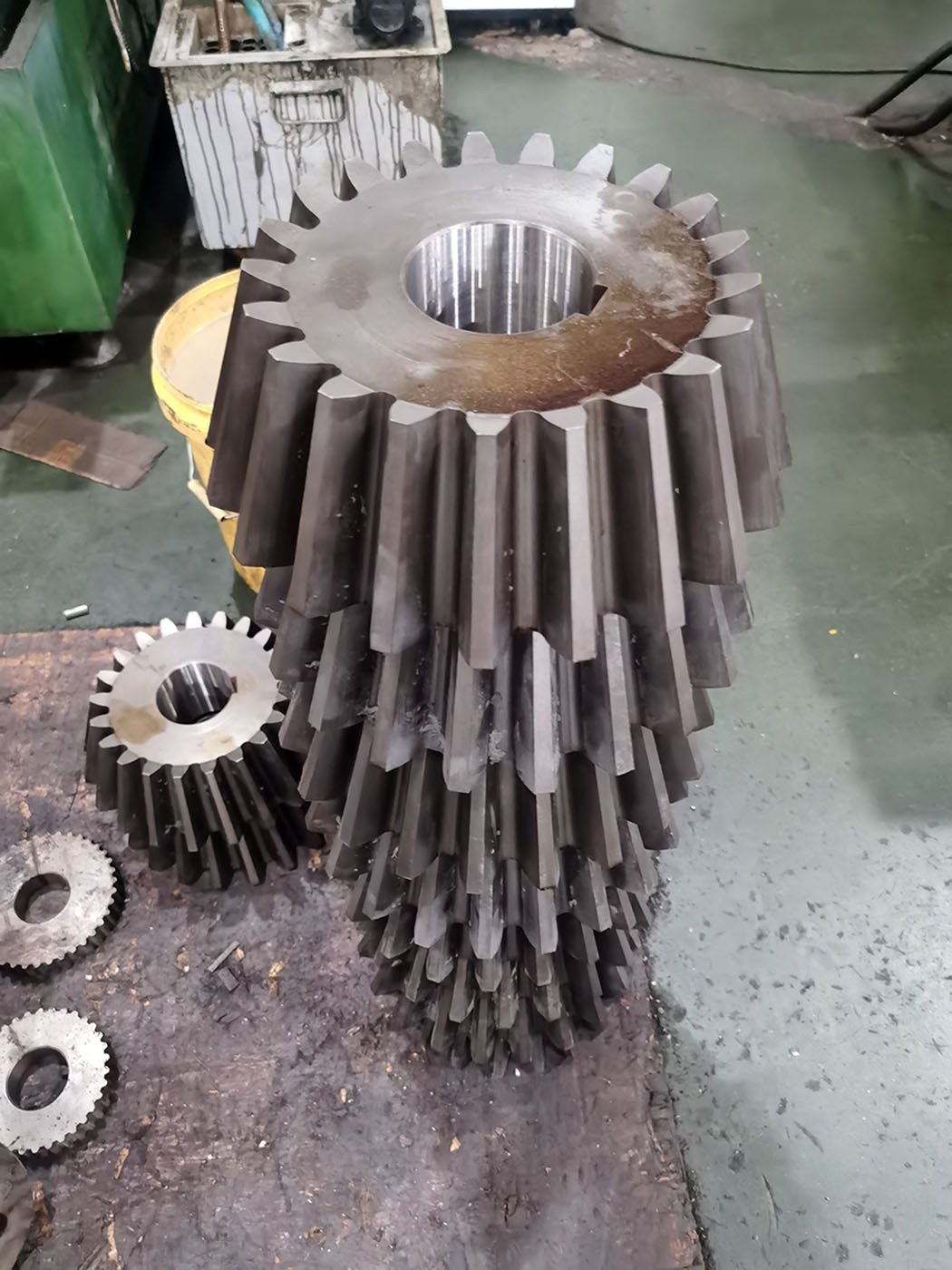

| Highlight: | 26T Pinion Conical Gear,SAE 4320 Pinion Conical Gear,Straight Bevel Pinion Conical Gear |
||
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
| Products | Straight Bevel Gear |
| Custom Made | √ |
| Shaft Angle | 90° |
| Gear Teeth manufacturing | Gear Shaping |
| Gear Teeth Grinding | |
| Module (M) | 14 |
| Number of Teeth (Z) | 21/60 |
| Pressure Angle (α) | 20° |
| Packing | Plywood Crate |
| Teeth Accuracy Grade | ISO 8-9 Grade |
| Heat Treatment | Carburizing/ Induction Hardending |
| Surface Hardness | Pinion 58-62 HRC Gear 50-55 HRC |
