| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | SS23032501 |
| Minimum Order Quantity: | 5 Pieces |
| Price: | $150.0/Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 55 Days |
| Payment Terms: | L/C, T/T, Western Union, D/P |
| Supply Ability: | 1000 Pieces/Month |
| Profile Type: | Involute Spline | Hardness: | 50-55 HRC |
|---|---|---|---|
| Outer Diameter: | 207.2 | Diameter Pitch: | 200 |
| Minor Diameter: | 191.2 | Root Diameter: | 118.98 |

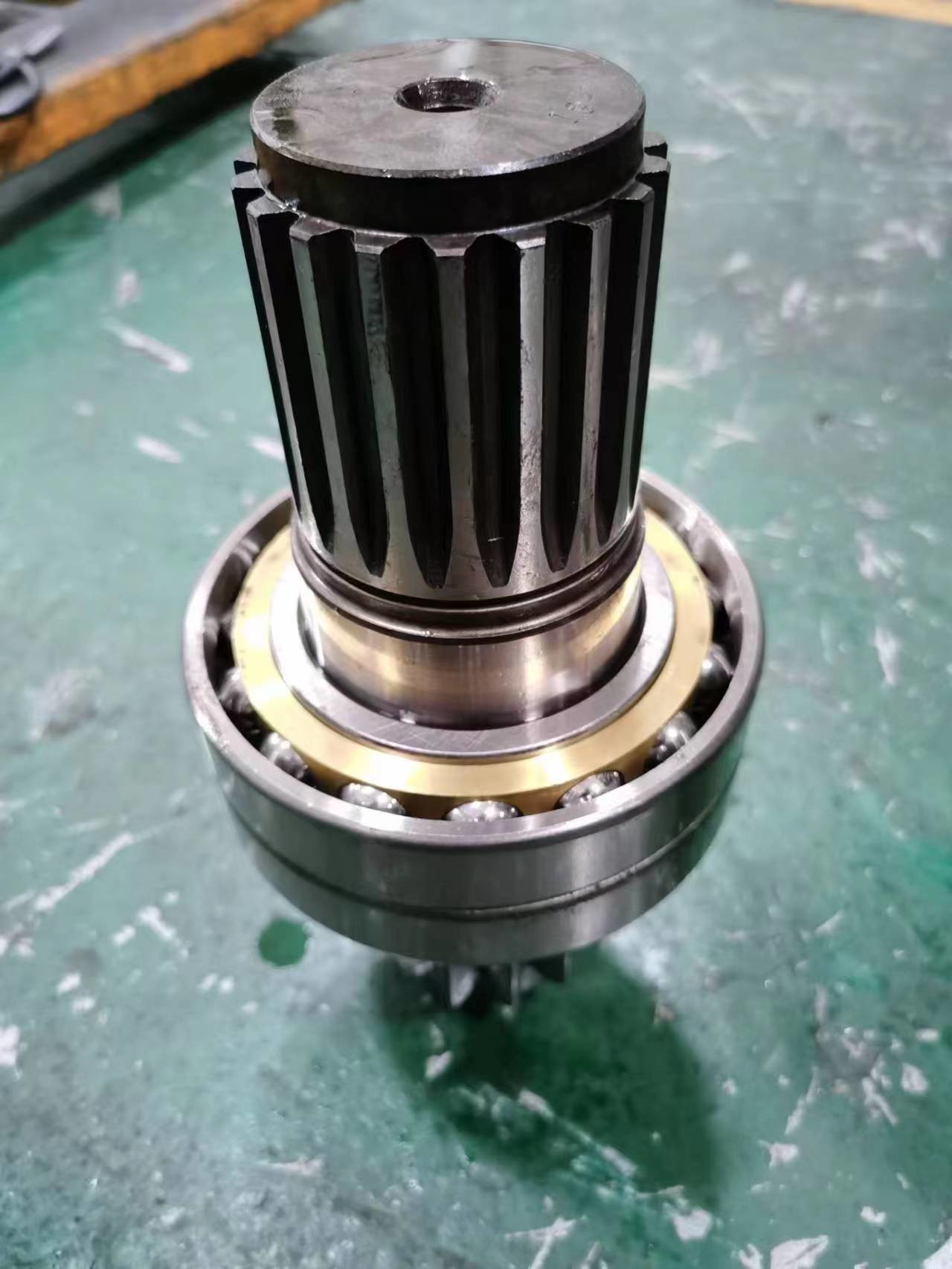

| Highlight: | High Strength Involute Spline Gear Shaft,DIN 5480 Involute Spline Gear Shaft,30° Involute Spline Gear Shaft |
||
Addendum 3.6mm
Dedendum 4.4mm
Standard: DIN 5480
Number of teeth 25
Pressure angle 30°
1) Types of Spline Shafts
a) Parallel key spline (Internal & External)
b) involute splines (Internal & External)
c) crowned splines (Internal & External)
d) serrations (Internal & External)
2) Description of Spline shaft
Spline shafts are elements within a mechanical configuration, purposed to transmit torque.
A spline shafts achieves the transmission of torque by mating with a female splined bore,
or other form of mating component working to impede movement in exterior directions
outside of the configuration’s linear path.
| Products | Involute Spline Shaft |
| Custom Made | √ |
| Gear Profile Type | Spline |
| Spline Teeth manufacturing | Spline Milling/ Spilne Grinding |
| Spline Teeth Grinding | √ |
| Module (M) | Custom |
| Number of Teeth (Z) | Custom |
| Pressure Angle (α) | 30° |
| Helix Angle (β) | |
| Teeth Accuracy Grade | ISO 6-7 Grade |
| Heat Treatment | Induction Hardening |
| Surface Hardness | 50-55 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
