| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | GS23032502 |
| Minimum Order Quantity: | 2 Pieces |
| Price: | $90/ Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 62 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500 Sets/Month |
| Module: | 6 | Spline Type: | Involute Spline |
|---|---|---|---|
| Pressure Angle: | 30° | Gear Teeth Number: | 32 |
| Heat Treatment: | Carburizing | Standard: | DIN 5480 |

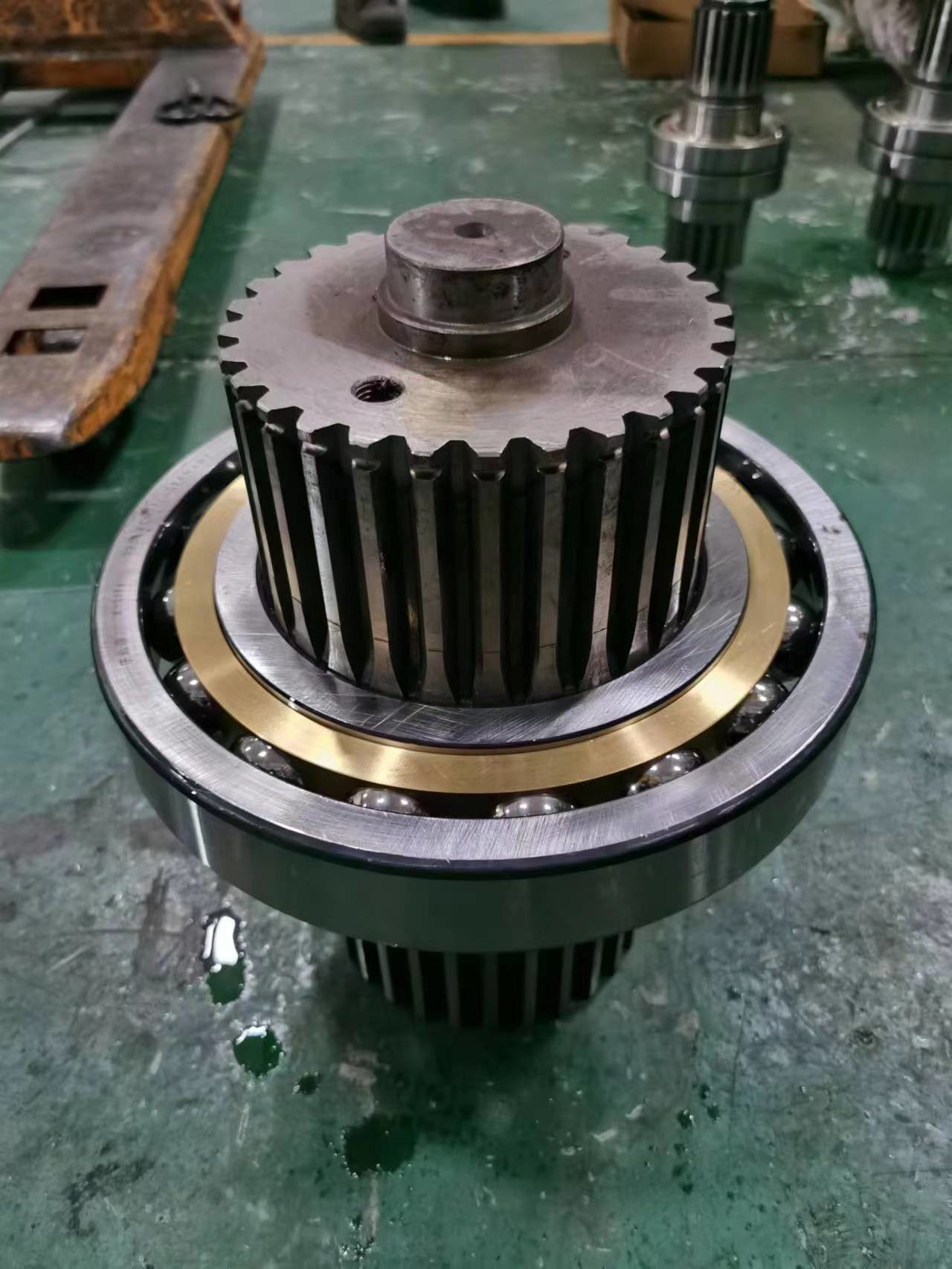

| Highlight: | Forging Steel Involute Spline Shaft,DIN 5480 Involute Spline Shaft,6M Involute Spline Shaft |
||
Number of teeth 32
Pressure angl: 30°
Standard DIN 5480
Face width: 80mm
Pitch Diameter 4.2333
Diameter Pitch 192mm
Diameter Major 197.4
Diameter Minor 185.4
| Products | Spline Shaft |
| Custom Made | √ |
| Material | 17CrNiMo6 |
| Gear Teeth manufacturing | Spline Hobbing |
| Gear Teeth Grinding | √ |
| Module | 2 |
| Pressure Angle (α) | 30° |
| Helix Angle (β) | 20° |
| Teeth Accuracy Grade | ISO 7 Grade/ AGMA 11Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
