| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | SS23032503 |
| Minimum Order Quantity: | 5 Pieces |
| Price: | $50.0/Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 55 Days |
| Payment Terms: | L/C, T/T, Western Union, D/P |
| Supply Ability: | 1000 Pieces/Month |

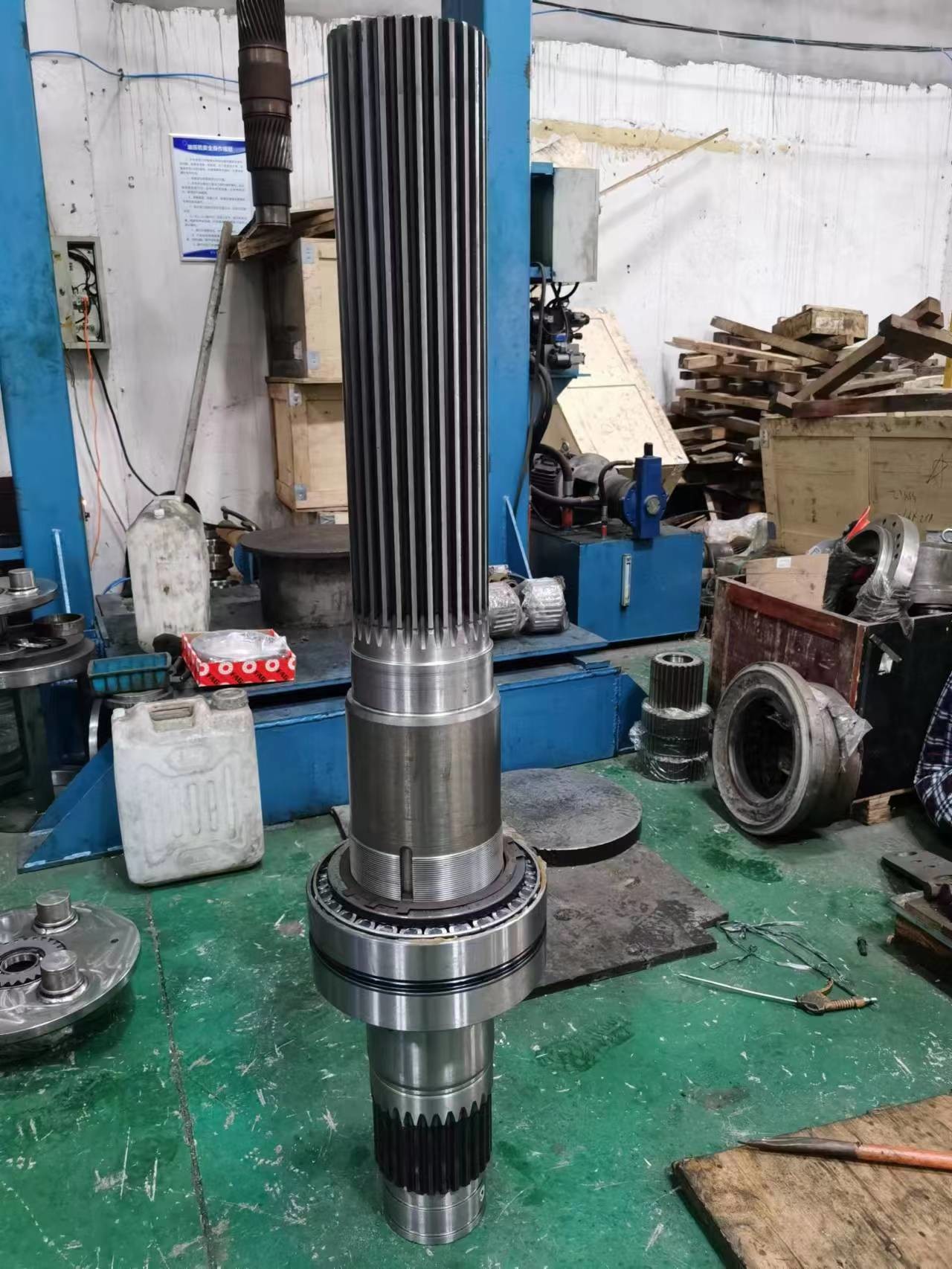

| Spline Type: | Involute Spline | Length: | 2220mm |
|---|---|---|---|
| Hardness: | 50-55 HRC | Module: | 10 |
| Spline Teeth No: | 28 | Heat Treatment: | Induction Hardening |
| Highlight: | Main Involute Spline Shaft,Spline Gear Shaft 2220mm,50HRC Spline Gear Shaft |
||
Standard DIN_5480
Flat Root Side Fitting
External Spline
Module: 10
Gear Teeth number 28
Fillet Radius 1.6mm
Major Diameter 298.00
Minor Diameter 278.00
Tooth Thickness 20.825
Tolerance Class Class 5
| Products | Rectangular Spline Shafts |
| Custom Made | √ |
| Gear Profile Type | Spline |
| Spline Teeth manufacturing | Spline Milling/ Spilne Grinding |
| Spline Teeth Grinding | √ |
| Module (M) | Custom |
| Number of Teeth (Z) | Custom |
| Pressure Angle (α) | 30° |
| Helix Angle (β) | |
| Teeth Accuracy Grade | ISO 6-7 Grade |
| Heat Treatment | Carburizing/ |
| Surface Hardness | 58-62 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
