| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | GS23032601 |
| Minimum Order Quantity: | 1 Set |
| Price: | $1000/ Set |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 55 Days |
| Payment Terms: | L/C, T/T, Western Union, D/P |
| Supply Ability: | 150 Sets/Month |
| Material: | Q235 | Type: | Gearbox Shell |
|---|---|---|---|
| Color: | Yellow | Gear Type: | Hard Surface Gears Shell |
| Housing: | Welding | Brand: | OEM |
| Highlight: | Welding Gearbox Shell Transmission Gears,Q235 Transmission Gears,OEM Welding Transmission Gears For Planet |
||

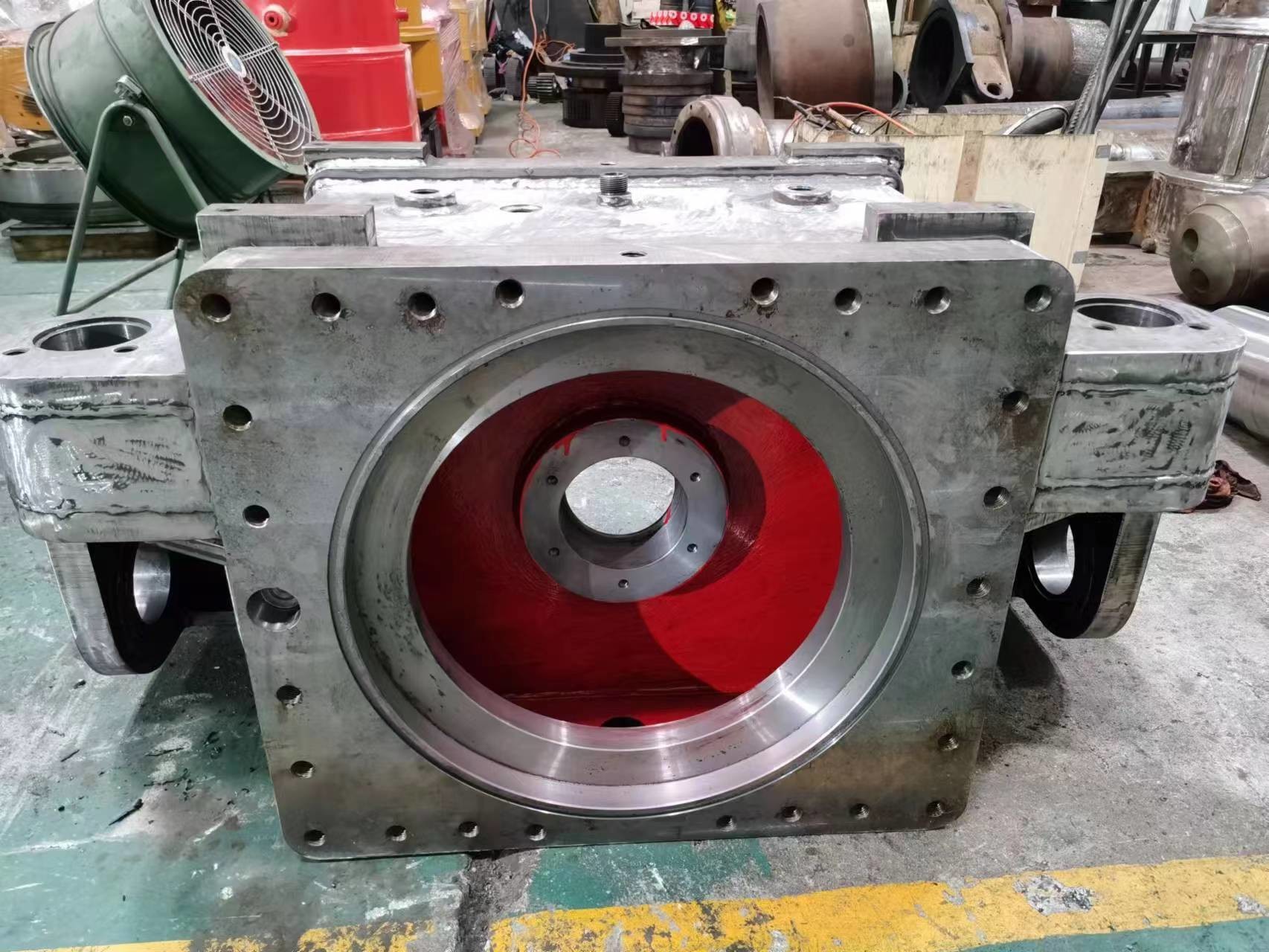

Welding Garbox shell for planet Gear system
Material: Q235 Steel
Weight: 350Kg
Dimension: 1120*750*678
OEM Parts
Factors of Gearbox Gear reducers
Gear drive selection factors include: shaft orientation, speed ratio, design type, nature of load, gear rating,
environment, mounting position, operating temperature range, and lubrication. Helical gearboxes and worm
gearboxes are among the more common types for electromechanical drives.
| Products | Gear Box/ Gear Reducer |
| Custom Made | √ |
| Gear Profile Type | Double Helical Gear |
| Gear Teeth manufacturing | Gear Hobbing/ Gear Grinding |
| Gear Teeth Grinding | √ |
| Module (M) | 4 |
| Number of Teeth (Z) | 33/67 |
| Pressure Angle (α) | 20° |
| Helix Angle (β) | Custom |
| Teeth Accuracy Grade | ISO 6-7 Grade |
| Heat Treatment | Carburizing/Cement Quenching/Nitriding |
| Surface Hardness | 58-62 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
