| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | SB23051101 |
| Minimum Order Quantity: | 2 Sets |
| Price: | $700/Set |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 62 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500 Sets/Month |
| Module: | 10.9362 | Pressure Angle: | 20° |
|---|---|---|---|
| Helix Angle: | 35° | Face Width: | 104 |
| Accuracy: | ISO 6 | Spiral Hand: | Left Hand |
| Gear Teeth Number: | 21 | Shaft Angle: | 90° |
| Highlight: | Spiral Bevel Gear Shaft Grinding,21T Spiral Bevel Gear Shaft,ISO 6 Spiral Bevel Gear Shaft |
||

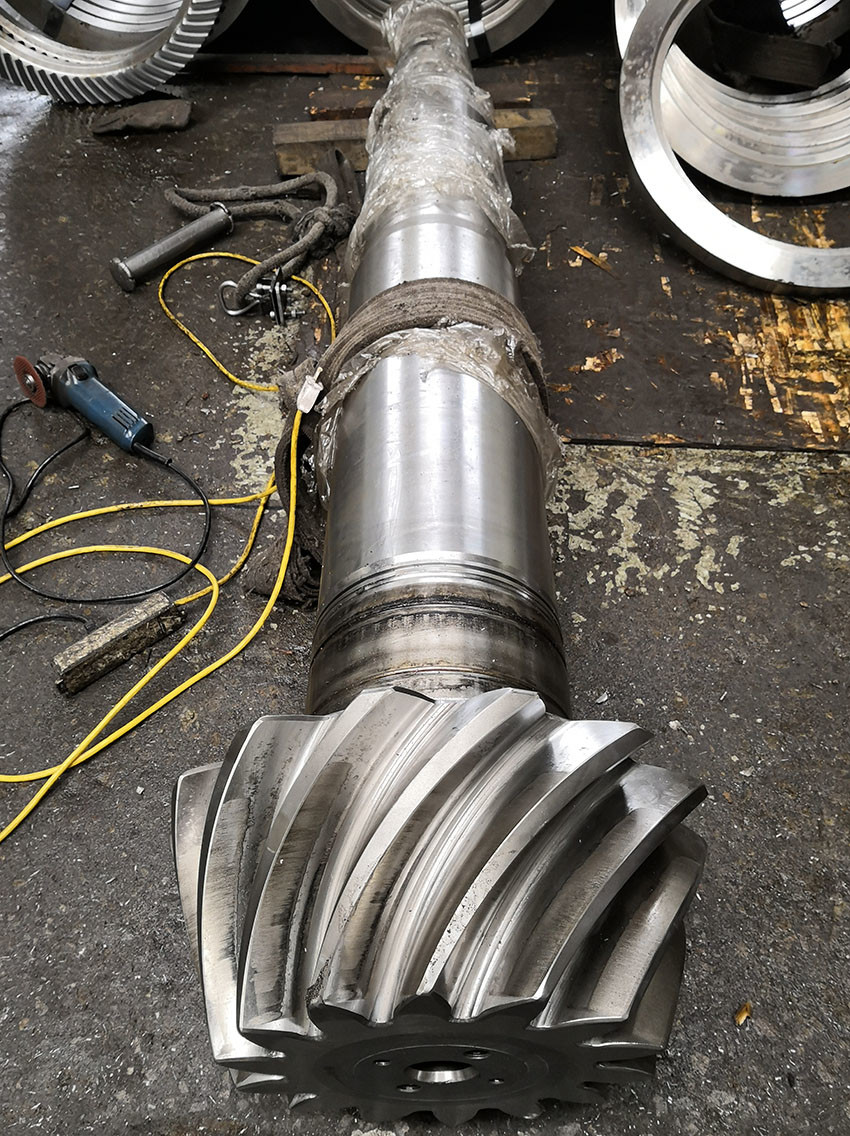

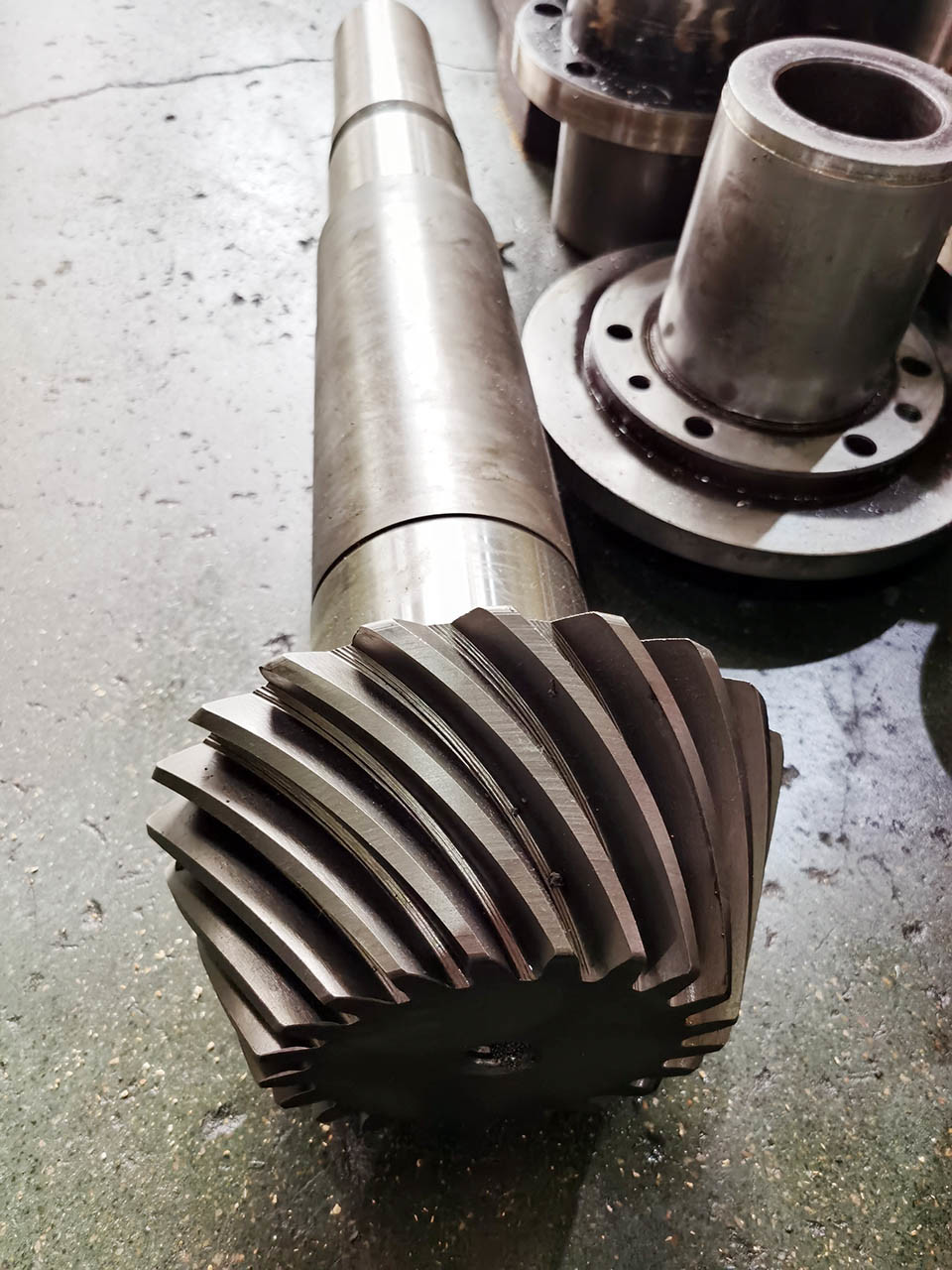

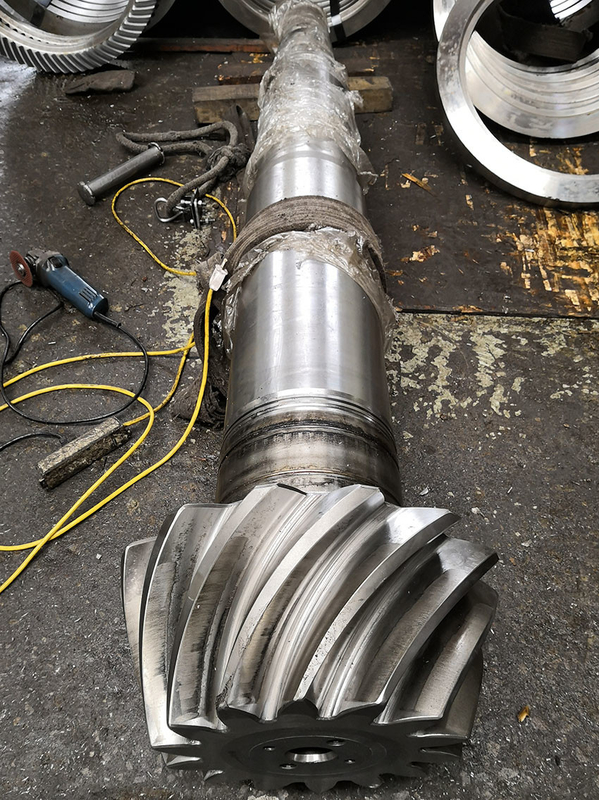

Material: 18CrNiMo7-6 Forging Steel
Mean Normal Module: 7.4641
Outer Transverse Module: 10.362
Mean Spiral Angle: 35°
Pitch Diameter: 229.66
Heat Treatment: Carburizing
Hardness: 58-62 HRC
Gear Teeth Grinding
| Products | Spiral Bevel Gear |
| Custom Made | √ |
| Material | 18CrNiMo7-6 |
| Gear Teeth manufacturing | Gear Grinding |
| Module | 10.9362 |
| Number of Teeth (Z) | 21 |
| Pressure Angle (α) | 20° |
| Helix Angle (β) | 35° |
| Teeth Accuracy Grade | ISO 6 Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
