| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | GS2023051201 |
| Minimum Order Quantity: | 2 Sets |
| Price: | $2/ Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 62 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500 Sets/Month |
| Gear Teeth Roughness: | Ra1.6 | Quality Grade: | ISO 6 Grade |
|---|---|---|---|
| Press Angle: | 20° | Helix Angle: | 15° |
| Material: | 20CrMnTi | Manufacturing Method: | Gear Grinding |
| Highlight: | 4 Module Helical Gear,Helical Gear Teeth Profile Grinding,ISO 1328 Helical Gear Teeth Profile |
||
Material: 17CrNiMo6
Die Forging Steel
Material with UT Inspection
Quenching & Tempering
Rough Machining
Fine Machining
Gear Hobbing
Heat Treatment
Gear Grinding
Ineternal Hole Grinding
Inspection
Packing

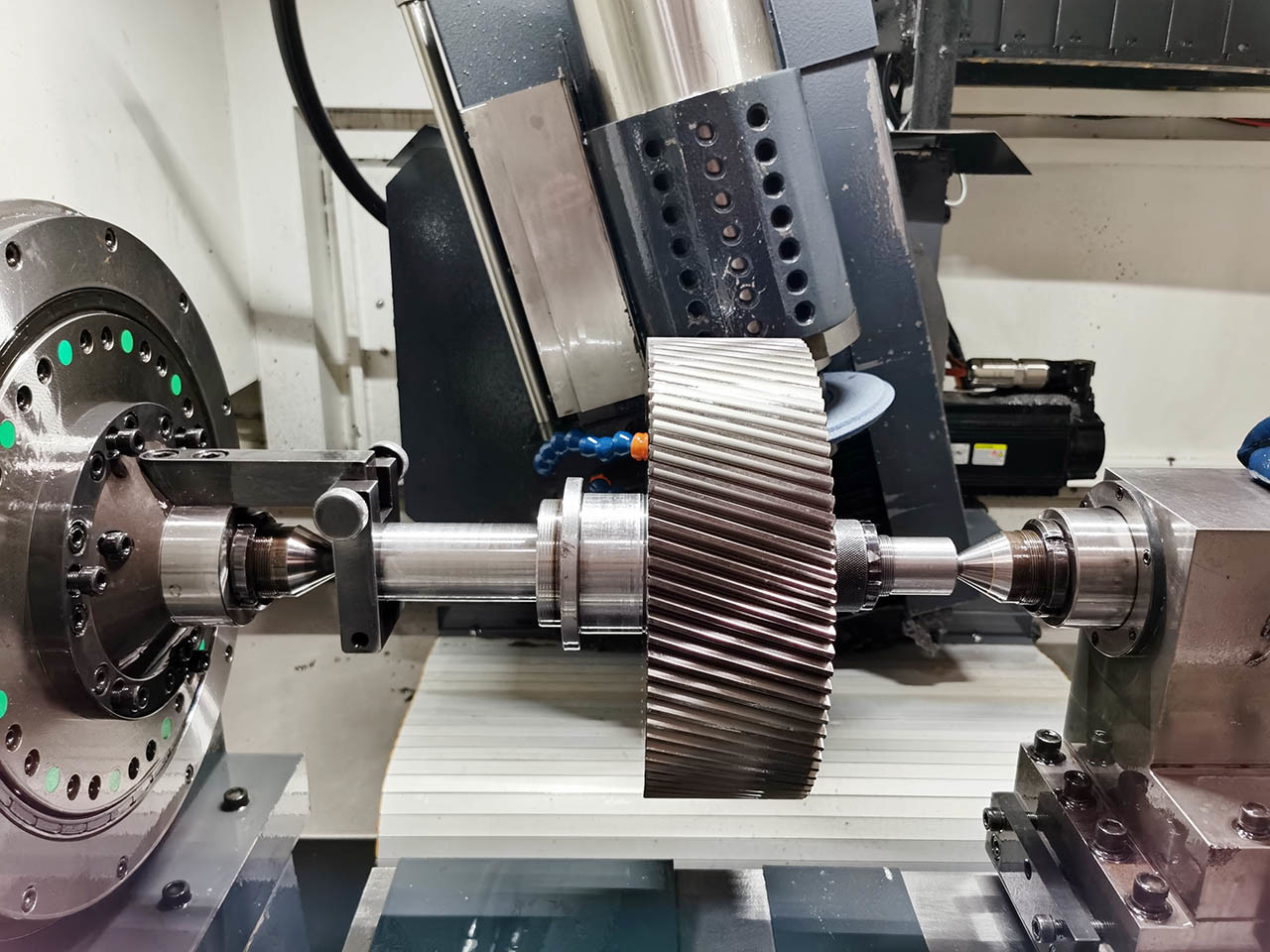

Gear Teeth Grinding Work can help improve the gear teeth quality
Enhance the roughness of the gear teeth surface
Gear teeth gridning can help reduce the noise level
The Quality grade can ≤ ISO 1328 6 Grade
| Products | Helical Gears |
| Custom Made | √ |
| Material | Foring Steel |
| Gear Teeth manufacturing | Gear Grinding |
| Gear Teeth Grinding | √ |
| Module | 6 |
| Pressure Angle (α) | 20° |
| Helix Angle (β) | 0° |
| Teeth Accuracy Grade | ISO 7 Grade/ AGMA 11Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
