| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | GS23051201 |
| Minimum Order Quantity: | 2 Pieces |
| Price: | $1850.0/Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 60 Days |
| Payment Terms: | L/C, D/P, Western Union, T/T |
| Supply Ability: | 300 Pieces/Month |
| Material: | 42CrMo | DP: | 6.35 |
|---|---|---|---|
| Helix Angle: | 0° | Description: | Gear Shaft |
| Manufacturing Method: | Gear Grinding | Pressure Agnle: | 20° |
| Highlight: | Transmission Grinding Gear Shaft,Transmission Gear Shaft 42CrMo,42CrMo Intermediate Transmission Gear Shaft |
||

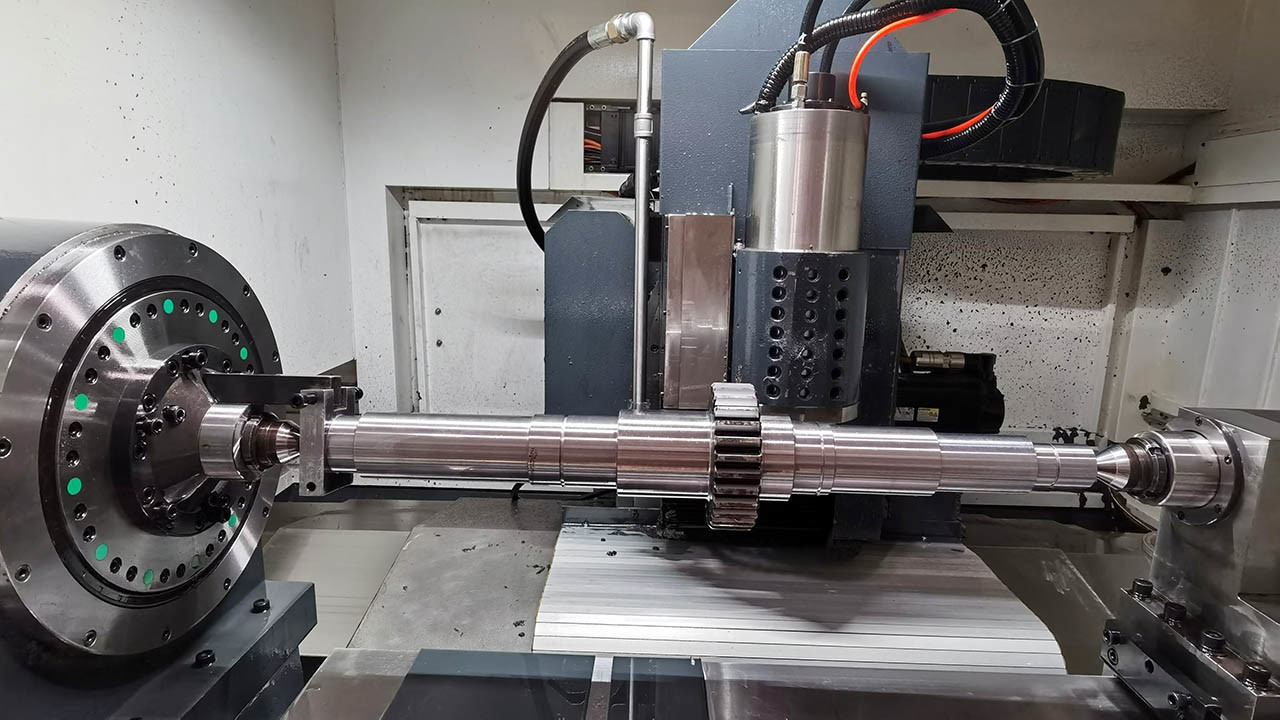

Intermediate Gear shaft is between the input gear / shaft and output gear shaft
Gears and gear shafts are the main component of a gearbox/ gear reducer
Legnth: 1250mm
Gear Module: 4
Gear teeth number: 16
Material: 42CrMo (Similar to AISI 4140)
Heat treatment: Induction Hardened
| Products | Intermediate Gear Shaft |
| Custom Made | √ |
| Gear Profile Type | Gear Shaft |
| Gear Teeth manufacturing | Gear Grinding |
| Gear Teeth Grinding | |
| Module (M) | 4 |
| Number of Teeth (Z) | 16 |
| Pressure Angle (α) | 20° |
| Helix Angle (β) | 0° |
| Teeth Accuracy Grade | ISO 8 Grade |
| Heat Treatment | Induction hardened |
| Surface Hardness | 45-50 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
