| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | SPG23051201 |
| Minimum Order Quantity: | 5 Pieces |
| Price: | $260/Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 50 Dyas |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 1500 Pieces/Month |
| Material: | 20Cr2Ni4 | Module: | 8 |
|---|---|---|---|
| Teeth Width: | 90 | Teeth Number: | 26 |
| Pressure Angle: | 20° | Manufacturing Method: | Gear Grinding |
| Highlight: | Grinding Planet Gear For Coal,26T Grinding Planet Gear,8 Module Grinding Planet Gear |
||

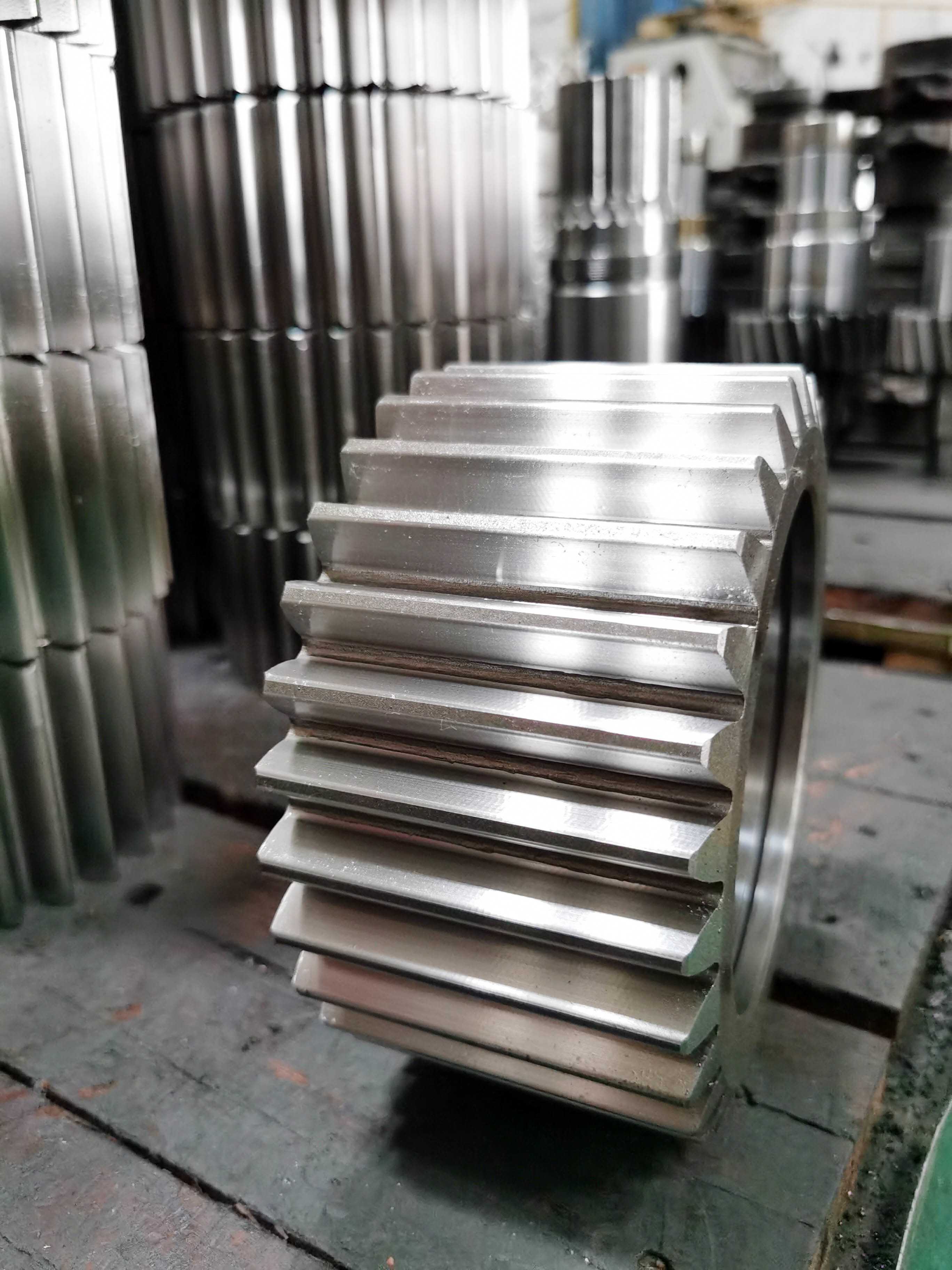

Planet Gear usually mating with sun gear for planetary gear system
One planetary gear system can with 3 planet gears or 5 planet gears
The sun gear and planet gear usually use low carbon alloy steel
The heat treatment is carburizing for low carbon alloy steel
Surface hardness is around 58-62 HRC after heat treatment
The production time is around 60 days for planet gear and sun gear produciton.
| Products | Planet Gear |
| Custom Made | √ |
| Gear Profile Type | Cylindrical Gears |
| Gear Teeth manufacturing | Gear Grinding |
| Gear Teeth Grinding | √ |
| Module (M) | 8 |
| Number of Teeth (Z) | 26 |
| Pressure Angle (α) | 20° |
| Helix Angle (β) | 0 |
| Teeth Accuracy Grade | ISO 6-7 Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
