| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OEM |
| Certification: | QC |
| Model Number: | CUSTOM |
| Minimum Order Quantity: | 2 |
| Price: | 1320 |
| Packaging Details: | Plywoode Crate |
| Delivery Time: | 85 Days |
| Payment Terms: | T/T |
| Supply Ability: | 20Pcs/Month |
| Girth Gear Pressure Angle: | 14.5°/20°/25° | Pinion Pressure Angle: | 14.5°/20°/25° |
|---|---|---|---|
| Pinion Module: | 10-30 | Surface Treatment: | Null |
| Girth Gear Diameter: | Customized | Pinion Teeth Number: | Customized |
| Pinion Type: | External | Accuracy Grade: | ISO 8-9 Grade |
| Highlight: | Girth Gear with No Surface Treatment,30 Pinion Module Girth Gear,ISO 8 Grade Girth Pinion Gear |
||

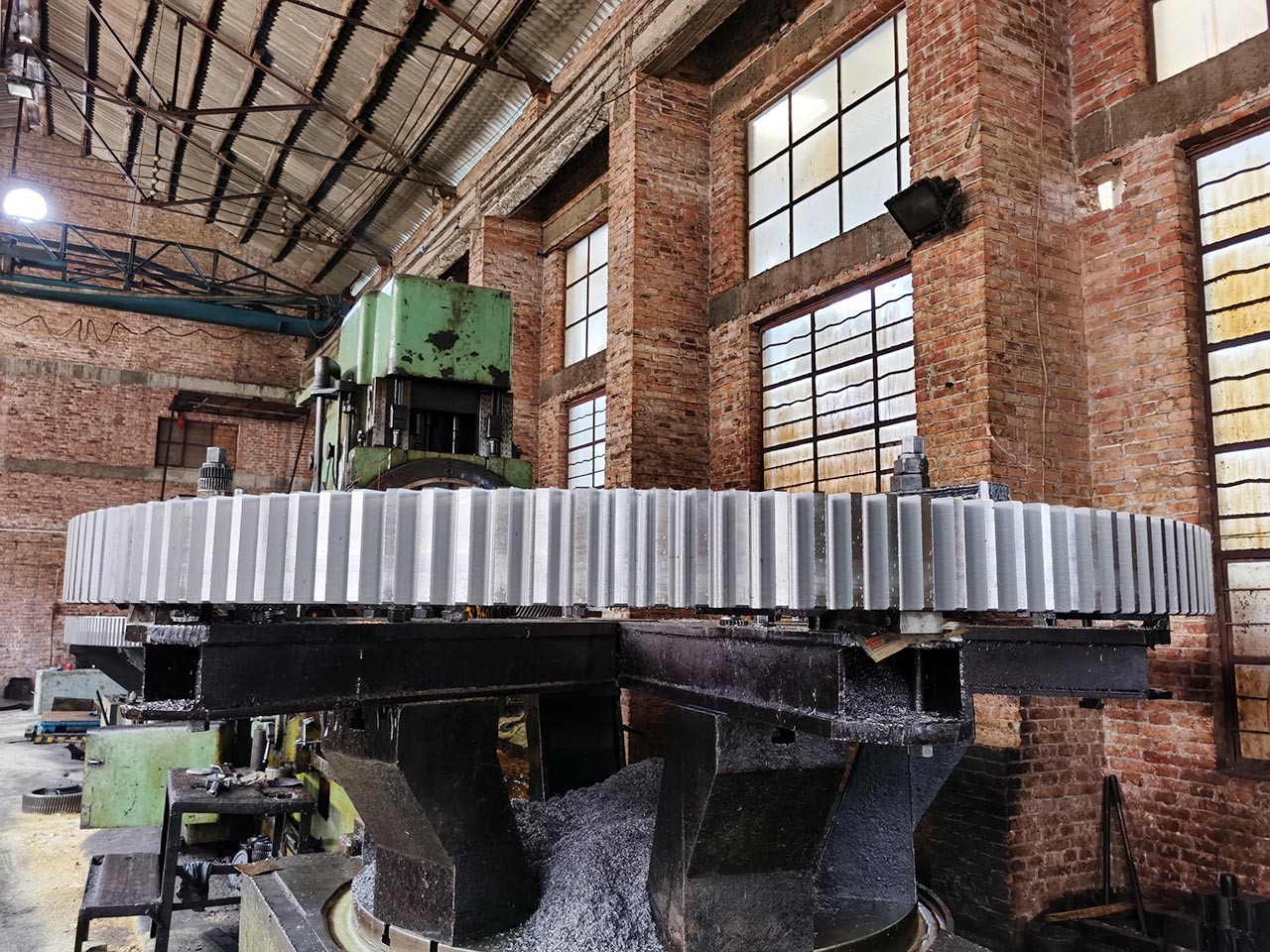

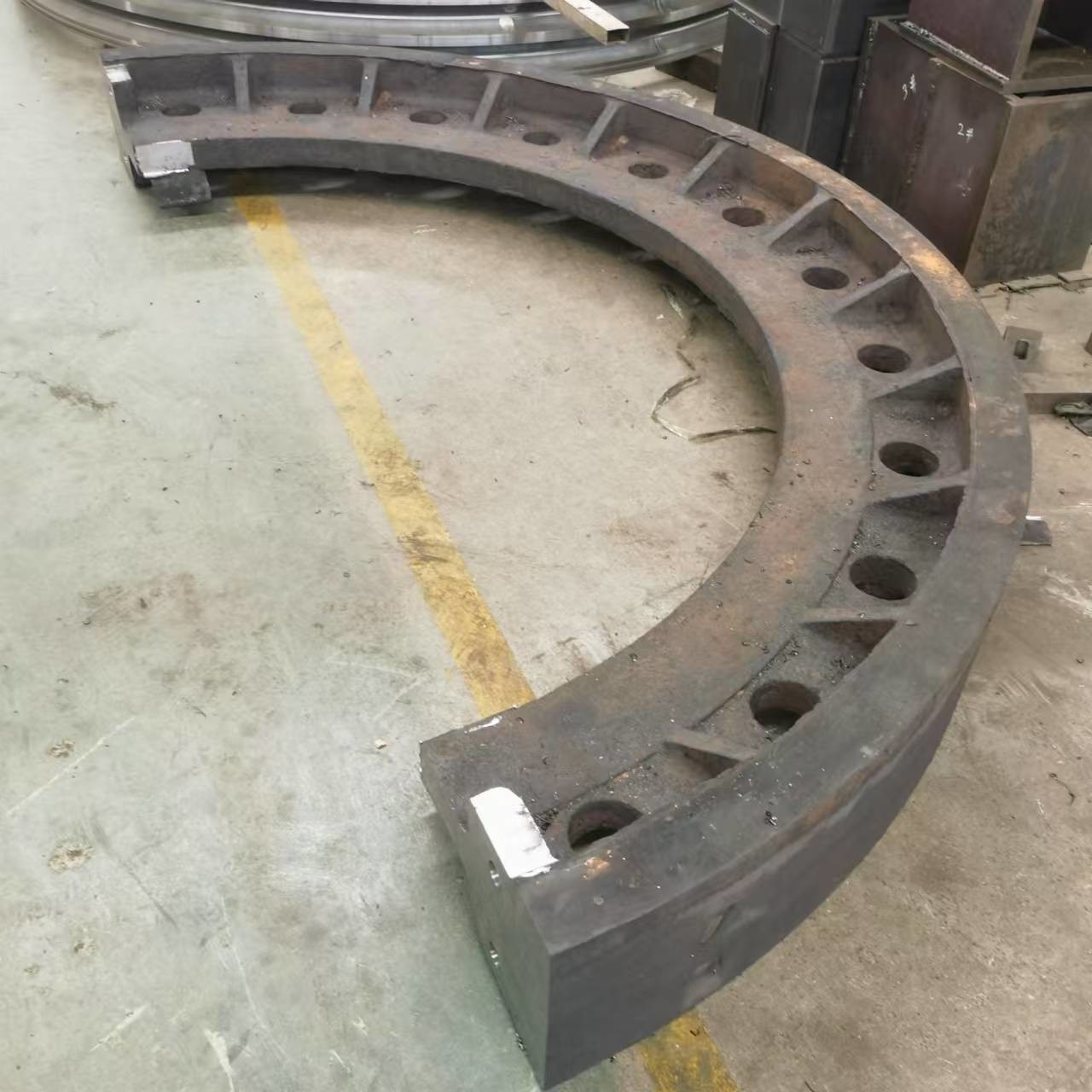

Girth Gear And Pinion is a highly reliable gear system used for mechanical power transmission applications. It is made of premium grade ZG42CrMo material that undergoes normalizing treatment for improved strength and durability. This gear system features a pinion with customizable diameter and teeth number. The girth gear, which is available in both external and internal types, also has a customizable width. This gear system is renowned for its superior performance and reliability, making it an ideal choice for various industrial applications.
| Attribute | Value |
|---|---|
| Pinion Type | External |
| Pinion Width | Customized |
| Girth Gear Teeth Number | Customized |
| Pinion Pressure Angle | 14.5°/20°/25° |
| Girth Gear Module | 10-30 |
| Girth Gear Pressure Angle | 14.5°/20°/25° |
| Pinion Module | 10-30 |
| Pinion Diameter | Customized |
| Pinion Teeth Number | Customized |
| Girth Gear Diameter | Customized |
| For Dryer Equipment | Yes |
| Straight Gear Tooth | Yes |
Girth Gear and Pinion is a kind of power transmission gear with a wide range of applications. It is usually used in industries such as cement, petrochemical, steel and coal-fired power plants. It consists of a large and a small gear, which are also called girth gear and pinion, respectively. OEM Brand Girth Gear and Pinion is made of high-quality materials, and its main features are high precision, high strength, durable, and long service life. It has a wide range of gear modules, from 10 to 30. The pressure angle of the girth gear is 14.5°/20°/25°, and the accuracy grade is ISO 8-9 Grade. The surface treatment of Girth Gear and Pinion is null, and it is manufactured by normalizing and straight gear tooth process. Moreover, the minimum order quantity of Girth Gear and Pinion is 2 pcs, and the price is 1320 USD per unit. The packaging is plywood crate, and the delivery time is 85 days. The payment terms are T/T, and the supply ability is 20 pcs per month.
Girth Gear And Pinion
Brand Name: OEM
Model Number: CUSTOM
Place of Origin: CHINA
Certification: QC
Minimum Order Quantity: 2
Price: 1320
Packaging Details: Plywoode Crate
Delivery Time: 85 Days
Payment Terms: T/T
Supply Ability: 20Pcs/Month
Girth Gear Pressure Angle: 14.5°/20°/25°
Pinion Module: 10-30
Girth Gear Type: External/Internal
Girth Gear Module: 10-30
Girth Gear Width: Customized
Ring Gear, Ring Gear, Straight Gear Tooth, Helical Gear Tooth
Girth Gear And Pinion technical support and service includes:
Girth Gear And Pinion shall be packaged in robust wooden cases and adequately protected against shocks, dust, and water. Depending on the size of the Girth Gear and Pinion, the package can be customized for easier and efficient handling.
Shipment of Girth Gear And Pinion shall be done through reliable carriers. All orders shall be shipped with appropriate documentation to ensure smooth customs clearance.
