| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Certification: | QC |
| Model Number: | SP23102501 |
| Minimum Order Quantity: | 5 Pcs |
| Price: | $300/ Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 60 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 Sets/Month |
| Material: | DIN 17CrNiMo6 | Heat Treatment: | Carburizing |
|---|---|---|---|
| Hardness: | 58-62 HRC | Roughness: | Ra 0.8~Ra 1.6 |
| Module: | 5 | Gear Tooth Number: | 35T |
| Highlight: | Spiral Bevel Gear Set |
||

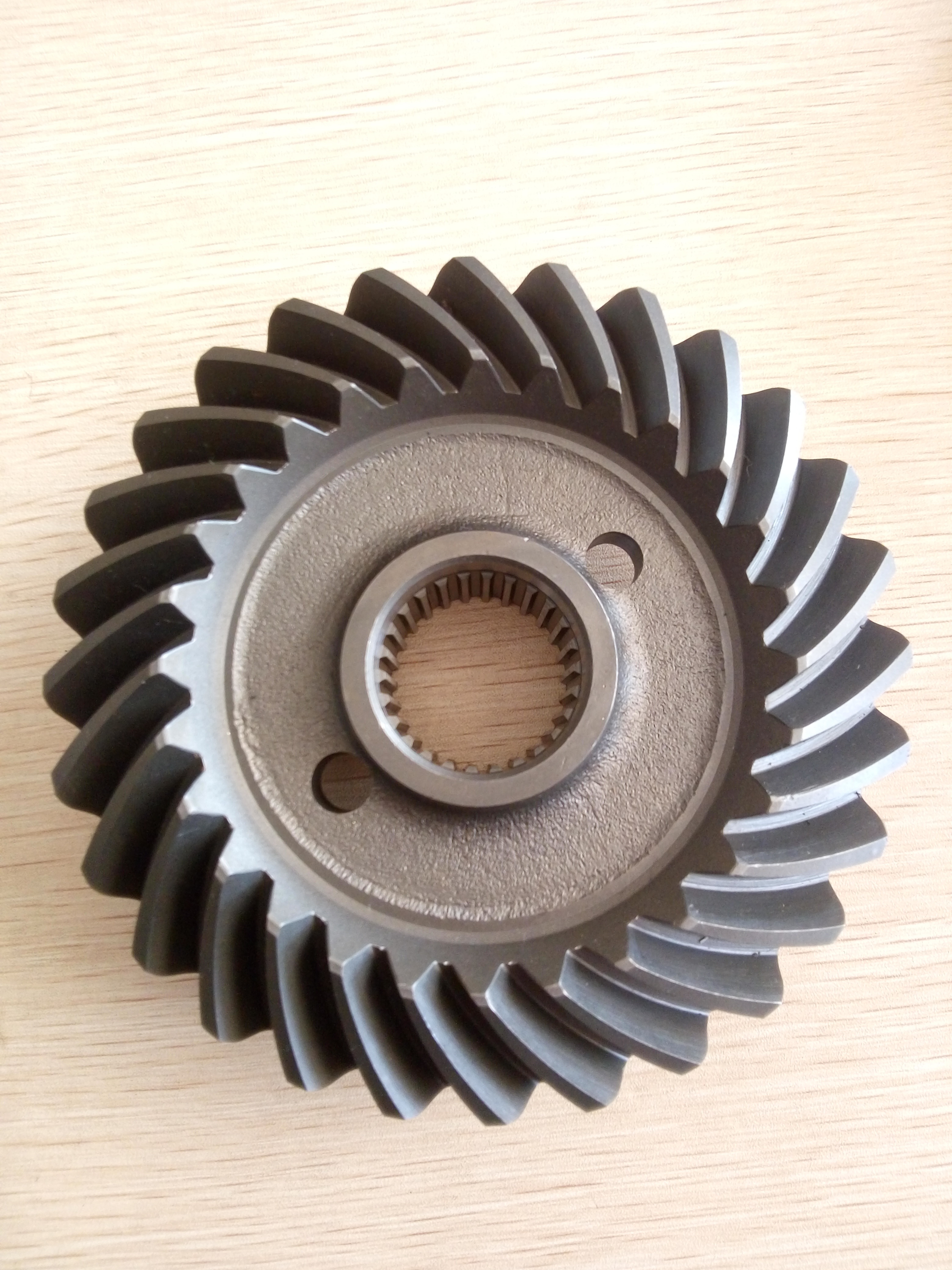

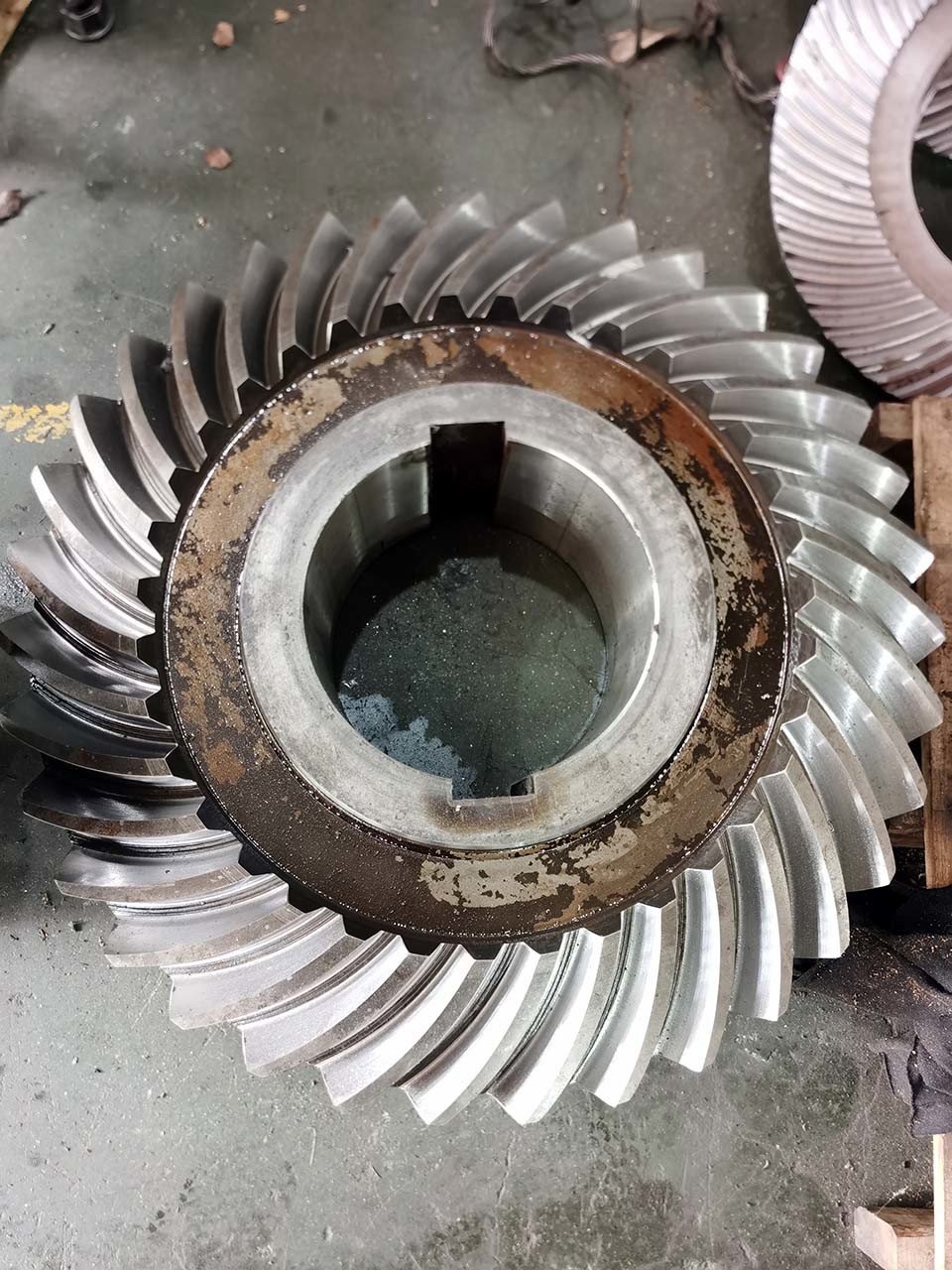

Gear Teeth Grinding Spiral Bevel Gear Set AGMA 10-11 Grade
Spiral bevel gears are a type of bevel gear that has curved teeth, known as spirals, on the gear faces.
They are used to transmit power and motion between intersecting shafts at a specific angle, typically 90 degrees.
Spiral bevel gears are widely employed in various applications such as automotive differentials, industrial machinery, marine propulsion systems, and power transmission equipment.
The distinctive feature of spiral bevel gears is their spiral-shaped tooth profile.
Unlike straight bevel gears, which have straight teeth that intersect at the gear's axis, spiral bevel gears have teeth that are curved or helical in shape.
This curvature allows a gradual tooth engagement, resulting in smoother and quieter operation compared to straight bevel gears.
| Products | Spiral Bevel Gear Set |
| Custom Made | √ |
| Material | 18CrNiMo7/17CrNiMo6 |
| Gear Teeth manufacturing | Gear Milling/Gear Grinding |
| Diameter Pitch | 5 |
| Number of Teeth (Z) | 35 |
| Pressure Angle (α) | 20° |
| Helix Angle (β) | 35° |
| Teeth Accuracy Grade | AGMA 10-11Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
