| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Certification: | QC |
| Model Number: | SP23102504 |
| Minimum Order Quantity: | 5 Pcs |
| Price: | $300/ Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 60 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 Sets/Month |
| Gear Teeth Cutter Diameter: | 12" | Unit Weight: | 125 Kg |
|---|---|---|---|
| Hardness: | 58-62 HRC | Manufacturing Method: | Gear Grinding |
| Gear Type: | Gleason | Material: | SAE 4320 |
| Highlight: | SAE 4320 Gear Teeth Milling,Alloy Steel Spiral Bevel Gear,Gear Teeth Milling of 22 Module |
||

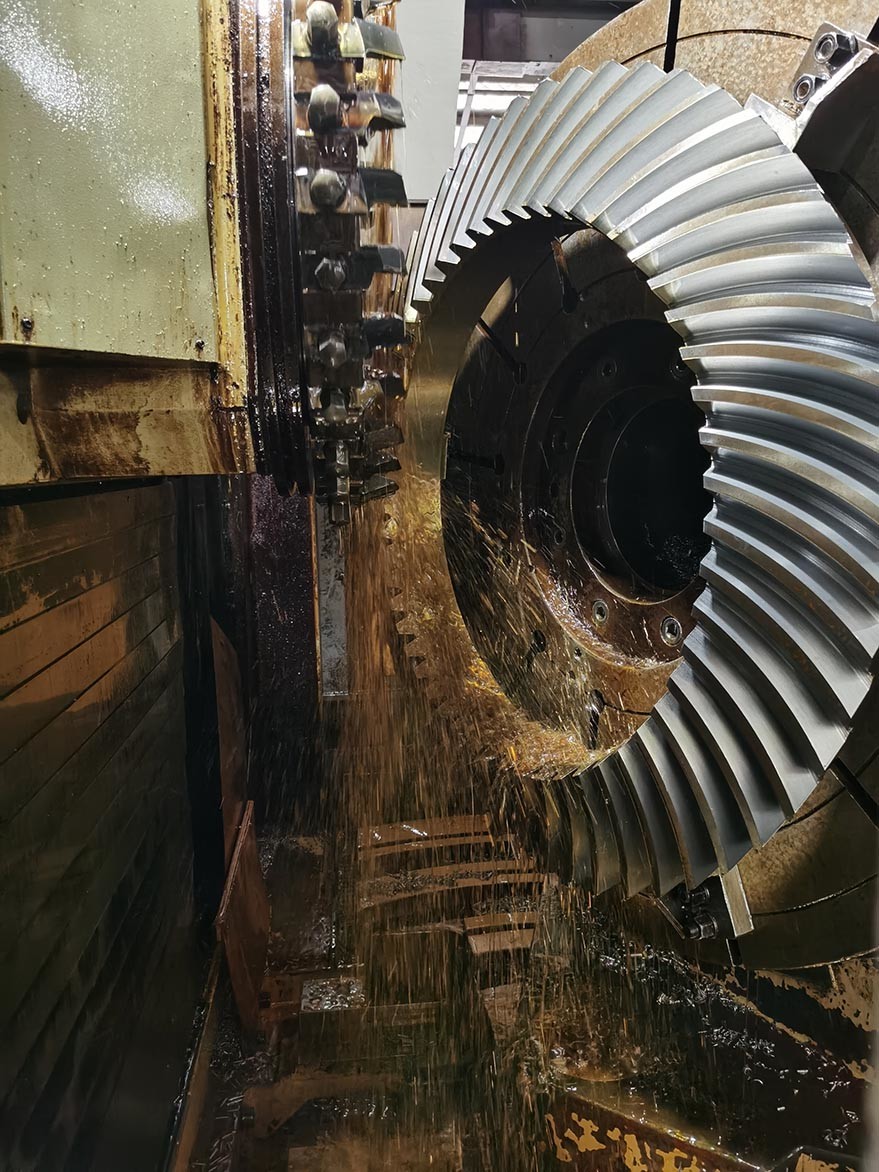

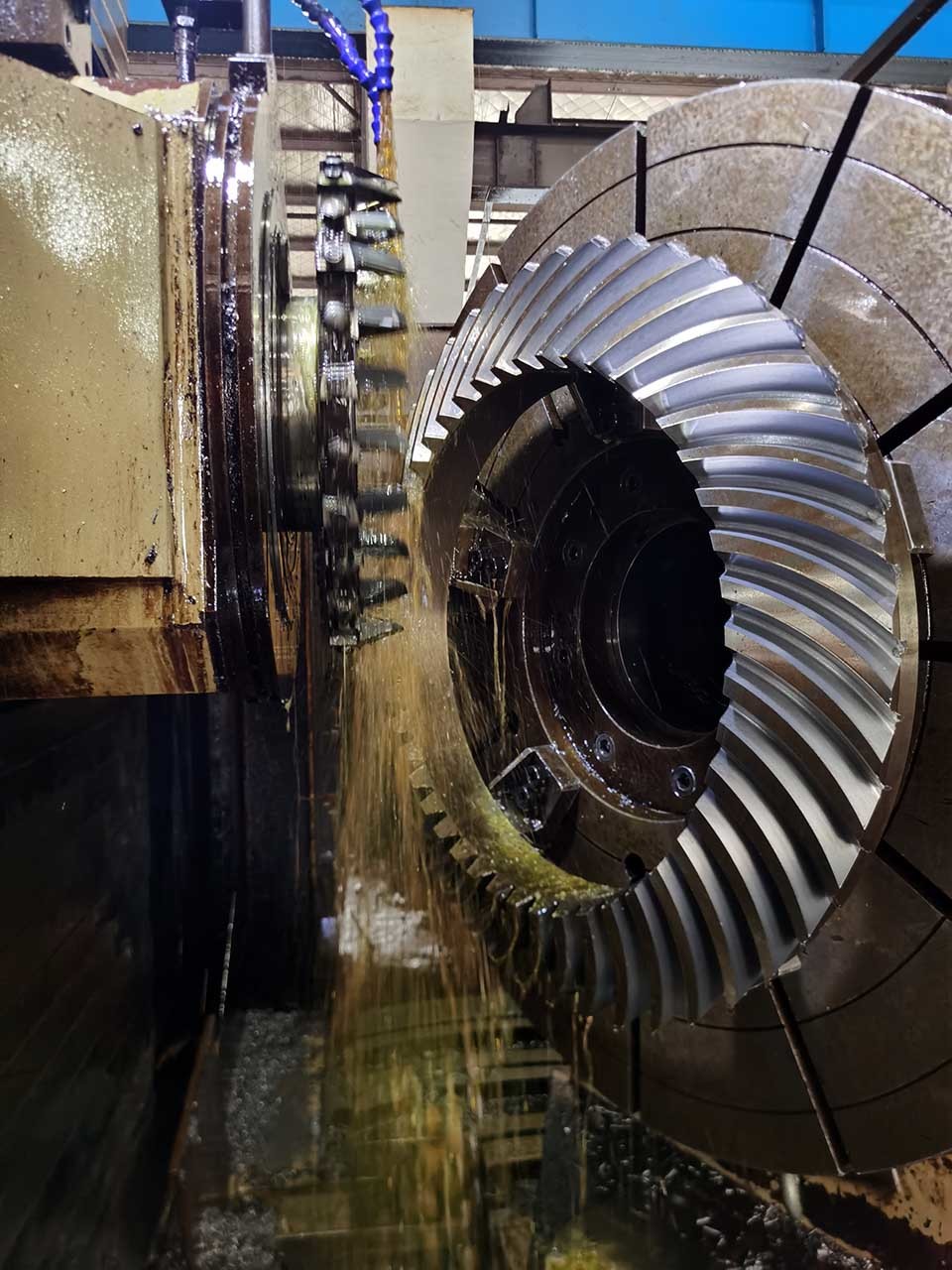

Gear Teeth Milling of 22 Module Alloy Steel Spiral Bevel Gear
Feature of Spiral Bevel Gear
Smooth and Quiet Operation:
The curved tooth profile of spiral bevel gears allows for gradual tooth engagement, resulting in smoother and quieter operation compared to straight bevel gears.
The spiral shape helps minimize noise, vibrations, and shock loads during gear meshing, contributing to improved overall performance and reduced wear.
High Load-Carrying Capacity: Spiral bevel gears are designed to distribute the load evenly across the tooth face.
This feature enhances their load-carrying capacity, allowing them to transmit higher torque and handle heavier loads compared to straight bevel gears.
This makes them suitable for applications that require reliable power transmission under demanding conditions.
| Products | Spiral Bevel Gear Set |
| Custom Made | √ |
| Material | 18CrNiMo7/17CrNiMo6 |
| Gear Teeth manufacturing | Gear Milling/Gear Grinding |
| Diameter Pitch | 22 |
| Number of Teeth (Z) | 47 |
| Pressure Angle (α) | 20° |
| Helix Angle (β) | 35° |
| Teeth Accuracy Grade | AGMA 10-11Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
