| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Certification: | QC |
| Model Number: | SP23102506 |
| Minimum Order Quantity: | 5 Pcs |
| Price: | $300/ Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 60 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 Sets/Month |
| Gear Type: | GleasonKlingberg | Working Angle: | 90° |
|---|---|---|---|
| Manufacture Type: | Gear Milling | Finish Gridning: | Gear Grinding |
| Module: | 18.5 | Gear Width: | 120mm |
| Highlight: | Grinding spiral bevel gear set,Klingberg Type Spiral Bevel Gear,Precision spiral bevel gear set |
||

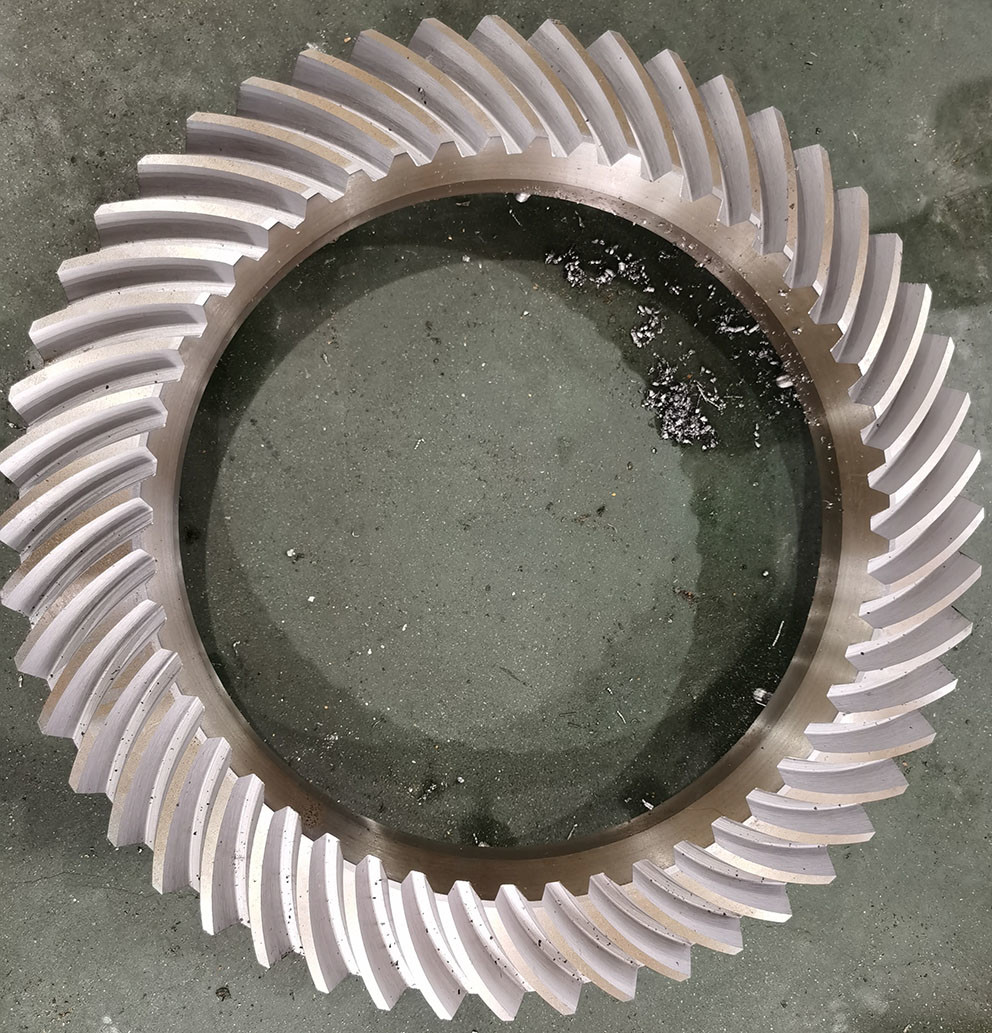

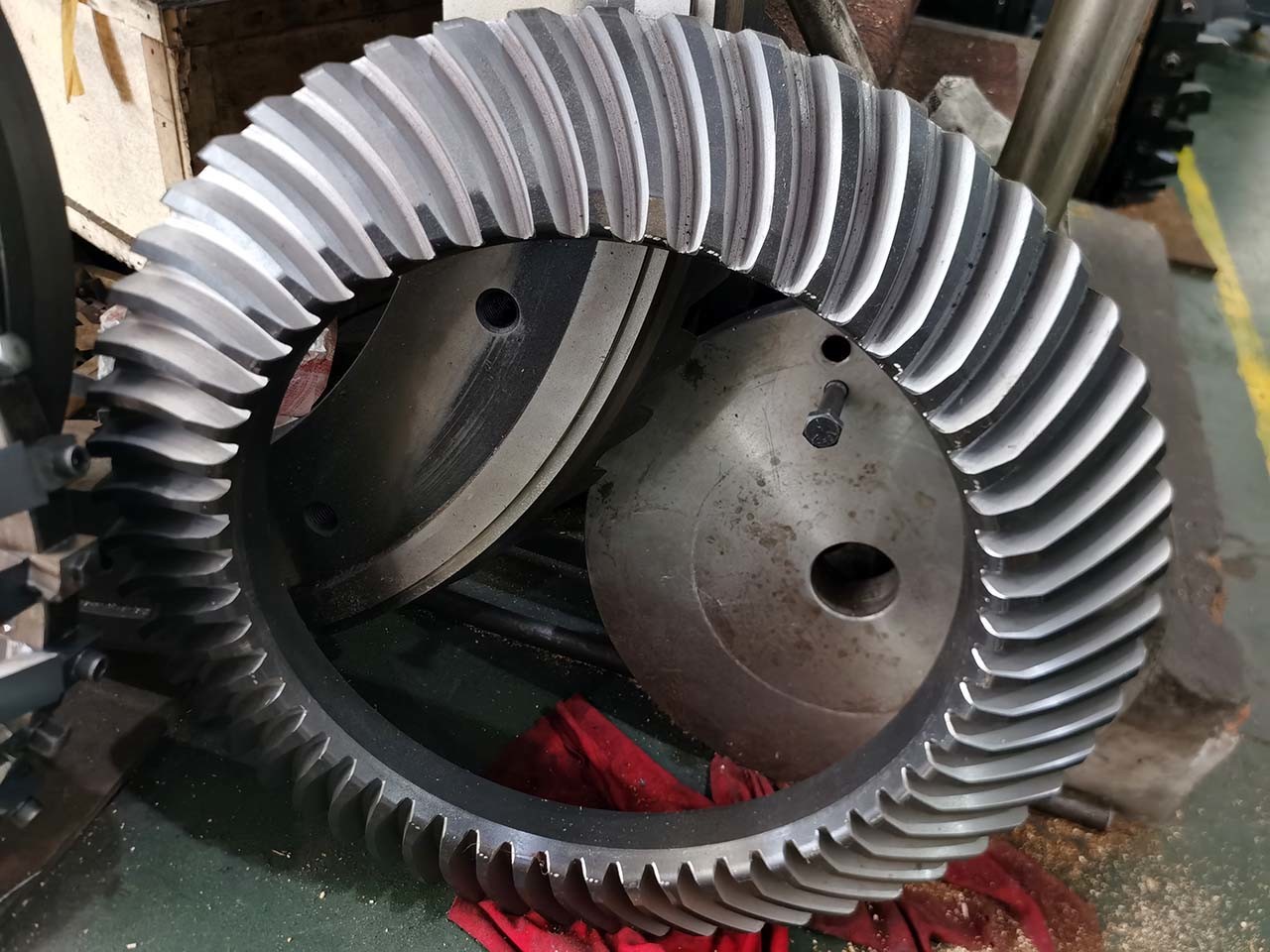

Precision Klingberg Type Spiral Bevel Gear Grinding Gear Set
Spiral Bevel Gear' Feature
Durability and Longevity: Spiral bevel gears are known for their durability and longevity.
The curved tooth profile distributes the load more evenly, reducing stress concentrations and enhancing gear life.
Proper lubrication and maintenance further contribute to their longevity and reliability.
Wide Range of Applications: Spiral bevel gears find applications in various industries, including automotive, aerospace, marine, power generation, and industrial machinery.
They are commonly used in differentials, gearboxes, power transmission systems, and other machinery where torque transmission and precise motion control are essential.
| Products | Spiral Bevel Gear Set |
| Custom Made | √ |
| Material | 18CrNiMo7/17CrNiMo6 |
| Gear Teeth manufacturing | Gear Milling/Gear Grinding |
| Diameter Pitch | 2.5 |
| Number of Teeth (Z) | 55 |
| Pressure Angle (α) | 20° |
| Helix Angle (β) | 35° |
| Teeth Accuracy Grade | AGMA 10-11Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
