| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YZGEAR |
| Certification: | QC |
| Model Number: | BG23102501 |
| Minimum Order Quantity: | 1 Set |
| Price: | $1300.0/Set |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 55 Days |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 200 Sets/Month |
| Application: | Cone Crusher | Material: | Forging Alloy Steel |
|---|---|---|---|
| DP: | 1.75 | Shaft Angle: | 90° |
| Hardness: | 50-55 HRC | Quality Grade: | ISO 8 Grade |
| Highlight: | Large Size Straight Bevel Gear,AISI 4140 straight bevel pinion,42CrMo Steel straight bevel pinion |
||

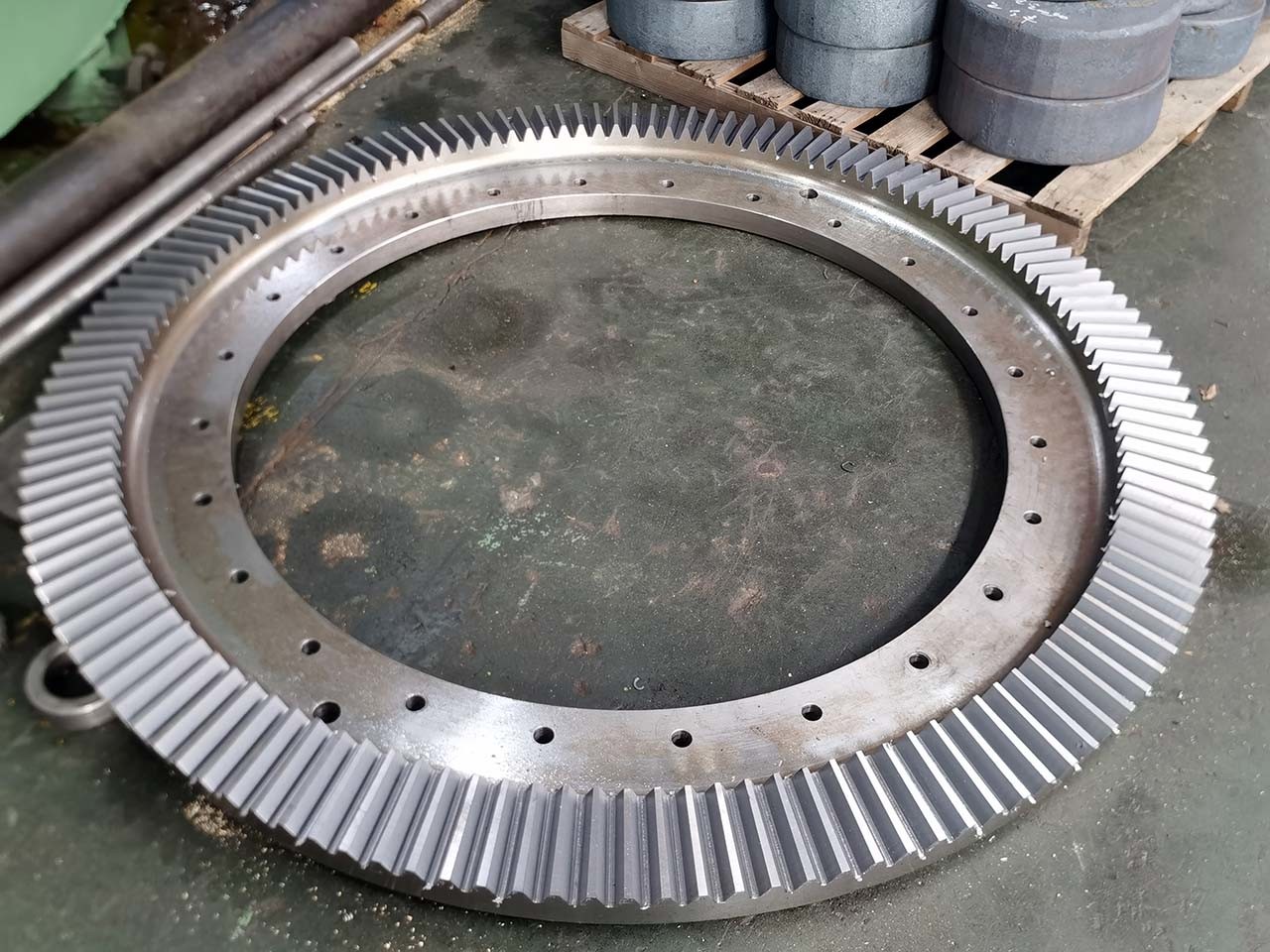

Straight bevel gears are a type of bevel gear that consists of cone-shaped gears with straight teeth.
They are used to transmit power and motion between intersecting shafts at a specific angle, typically 90 degrees.
Straight bevel gears are widely employed in various applications such as automotive differentials, power tools, agricultural machinery, and industrial equipment.
Here are some key points about straight bevel gears:
Tooth Configuration: Straight bevel gears have straight teeth that intersect with the gear's axis.
The teeth are cut perpendicular to the gear's face and are parallel to the generator cone, resulting in a simple tooth profile.
This design allows for efficient power transmission and ease of manufacturing.
90-Degree Shaft Angle: Straight bevel gears are commonly used when the intersecting shafts need to transmit power and motion at a 90-degree angle.
They are particularly suitable for right-angle drives and applications where a change in direction is required.
| Products | Straight Bevel Gear |
| Custom Made | √ |
| Shaft Angle | 90° |
| Gear Teeth manufacturing | Gear Shaping |
| Gear Teeth Grinding | |
| Module (M) | 14.5 |
| Number of Teeth (Z) | 26/60 |
| Pressure Angle (α) | 20° |
| Helix Angle (β) | |
| Teeth Accuracy Grade | ISO 8-9 Grade |
| Heat Treatment | Induction Hardened/Carburizing |
| Surface Hardness | Pinion 58-62 HRC/Gear 50-55 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
