| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Certification: | QC |
| Model Number: | C6LB-R6-2G |
| Minimum Order Quantity: | 1000 Pcs |
| Price: | 0.2 |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 20 Days |
| Supply Ability: | 50000 Pcs/Month |
| Nominal Diameter: | 5 | Actual Diameter: | 4.85-4.95 |
|---|---|---|---|
| Nominal Riveting Thickness: | 3~32mm | Actual Riveting Thickness: | 1.6~33.4mm |
| Highlight: | 3/16" Huck lock bolt,Nominal Diameter 5 lock bolt |
||

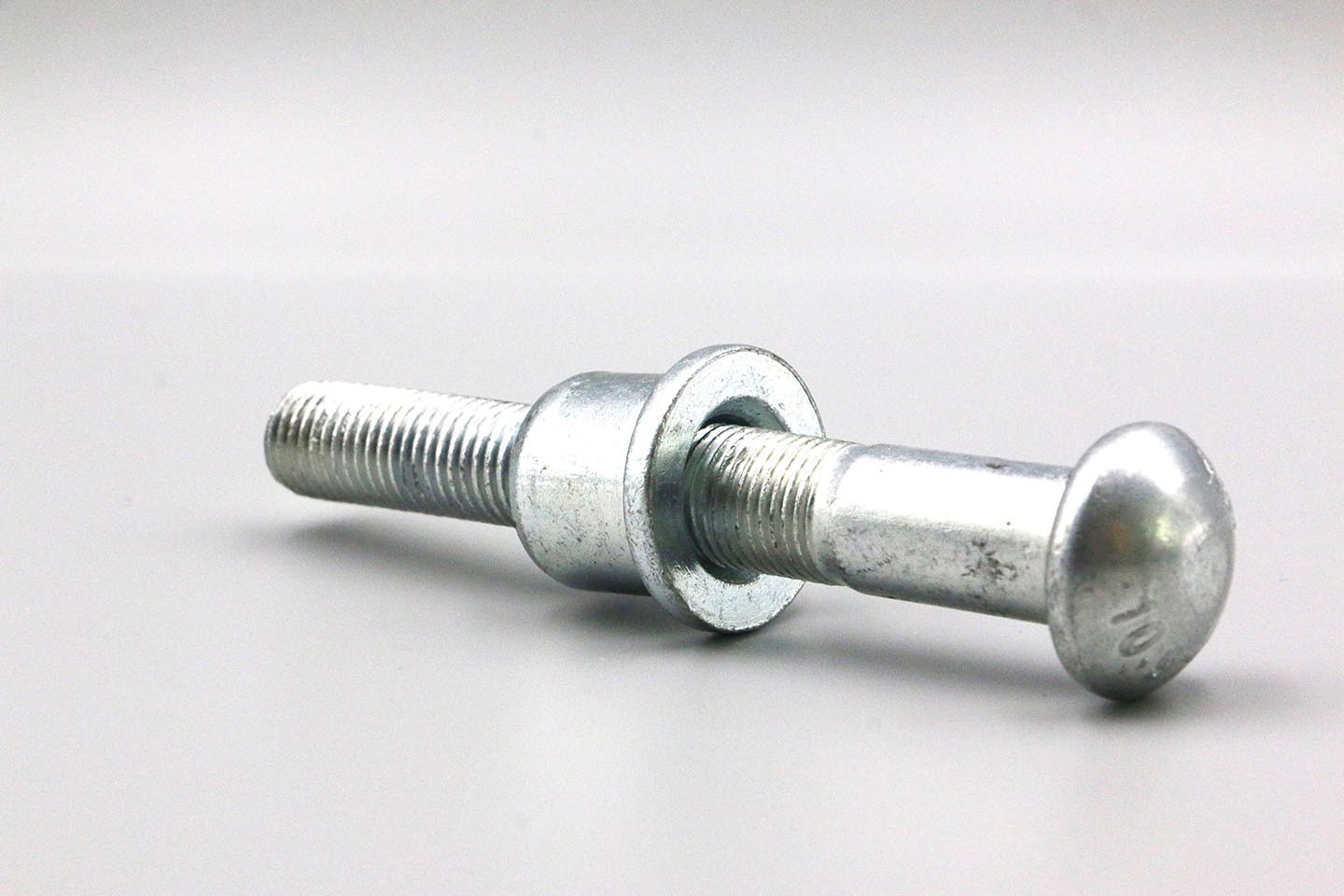

Ring-Grooved lock bolt Nominal Diameter 5 3/16" Huck C6LB-R6-2G
Bolt Material: Alloy Steel
Collar Material: ML08
| Nominal Diameter | Actual Diameter | Nominal Riveting Thickness | Actual Riveting Thickness | Huck Model | Avdel Model | ||
| Min | Max | Min | Max | ||||
| 5 (3/16") |
4.85 | 4.95 | 3 | 1.6 | 4.8 | C6LB-R6-2G | 02621-70602 |
| 5 | 3.2 | 6.4 | C6LB-R6-3G | 02621-70603 | |||
| 6 | 4.8 | 7.9 | C6LB-R6-4G | 02621-70604 | |||
| 8 | 6.4 | 9.5 | C6LB-R6-5G | 02621-70605 | |||
| 10 | 7.9 | 11.1 | C6LB-R6-6G | 02621-70606 | |||
| 11 | 9.5 | 12.7 | C6LB-R6-7G | 02621-70607 | |||
| 13 | 11.1 | 14.3 | C6LB-R6-8G | 02621-70608 | |||
| 14 | 12.7 | 15.9 | C6LB-R6-9G | 02621-70609 | |||
| 16 | 14.3 | 17.5 | C6LB-R6-10G | 02621-70610 | |||
| 17 | 15.9 | 19.1 | C6LB-R6-11G | 02621-70611 | |||
| 19 | 17.5 | 20.7 | C6LB-R6-12G | 02621-70612 | |||
| 21 | 19.1 | 22.2 | C6LB-R6-13G | 02621-70613 | |||
| 22 | 20.7 | 23.8 | C6LB-R6-14G | 02621-70614 | |||
| 24 | 22.2 | 25.4 | C6LB-R6-15G | 02621-70615 | |||
| 25 | 23.8 | 27 | C6LB-R6-16G | 02621-70616 | |||
| 27 | 25.4 | 28.6 | C6LB-R6-17G | 02621-70617 | |||
| 28 | 27 | 30.2 | C6LB-R6-18G | 02621-70618 | |||
| 30 | 28.6 | 31.8 | C6LB-R6-19G | 02621-70619 | |||
| 32 | 30.2 | 33.4 | C6LB-R6-20G | 02621-70620 | |||
