| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Certification: | QC |
| Model Number: | C50LR-BR24-4 |
| Minimum Order Quantity: | 1000 Pcs |
| Price: | 0.2 |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 20 Days |
| Supply Ability: | 50000 Pcs/Month |
| Nominal Diameter: | 20 | Actual Diameter: | 18.8~19.5 |
|---|---|---|---|
| Nominal Riveting Thickness: | 6 | Actmual Riveting Thickness: | 6.35~12.7 |
| Highlight: | Collar Ring-Grooved Lock Bolt,Ring-Grooved Lock Bolt,Fastener Blind Rivet Bolts |
||

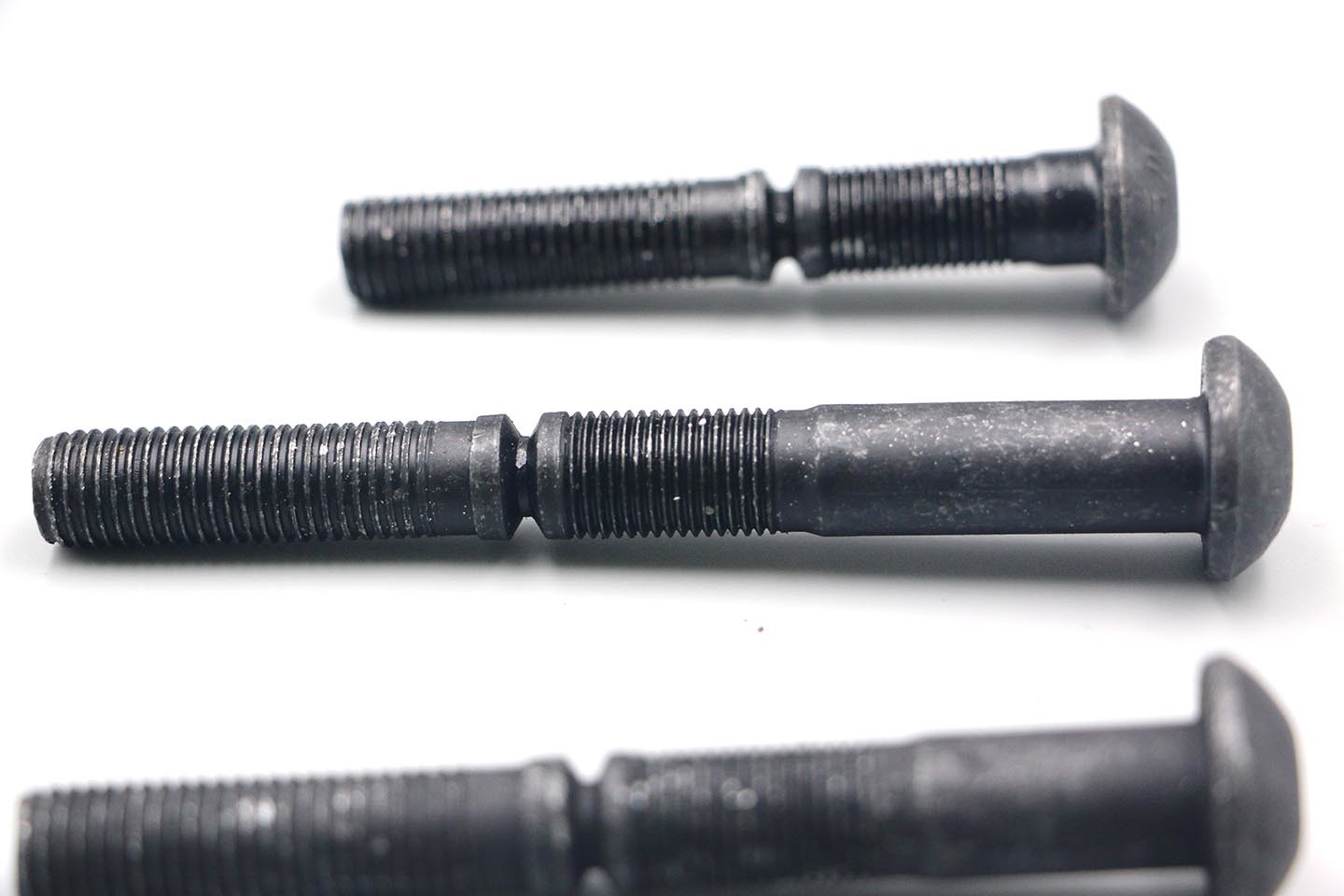

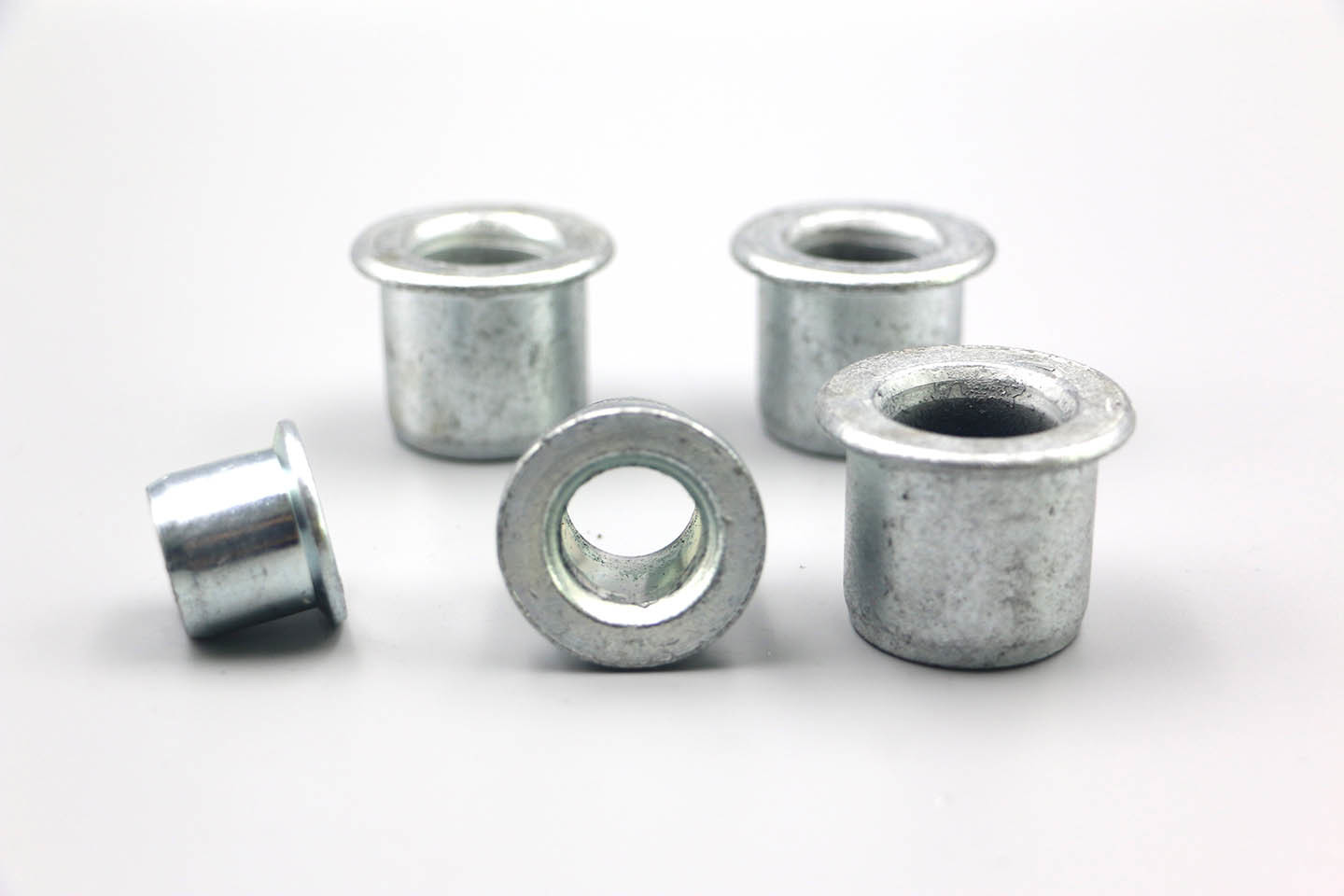

Fastener Blind Rivet Bolts Collar Ring-Grooved Lock Bolt 20 3/4" C50LR-BR24-4
Applications of Lock Bolts
Aerospace: Lock bolts are used extensively in aerospace applications,
such as in the assembly of aircraft structures, wings, fuselage, and engine components.
They provide secure and vibration-resistant joints that meet the stringent safety and performance requirements of the aerospace industry.
| Nominal Diameter | Actual Diameter | Nominal Riveting Thickness | Actual Riveting Thickness | Huck Model | Avdel Model | ||
| Min | Max | Min | Max | ||||
| 20 (3/4”) |
18.8 | 19.5 | 6 | 6.35 | 12.7 | C50LR-BR24-4 | 02861-02404 |
| 12 | 12.7 | 19.1 | C50LR-BR24-8 | 02861-02408 | |||
| 18 | 19.1 | 25.4 | C50LR-BR24-12 | 02861-02412 | |||
| 24 | 25.4 | 31.8 | C50LR-BR24-16 | 02861-02416 | |||
| 31 | 31.8 | 38.1 | C50LR-BR24-20 | 02861-02420 | |||
| 37 | 38.1 | 44.5 | C50LR-BR24-24 | 02861-02424 | |||
| 44 | 44.5 | 50.8 | C50LR-BR24-28 | 02861-02428 | |||
| 50 | 50.8 | 57.2 | C50LR-BR24-32 | 02861-02432 | |||
| 57 | 57.2 | 63.5 | C50LR-BR24-36 | 02861-02436 | |||
| 63 | 63.5 | 69.9 | C50LR-BR24-40 | 02861-02440 | |||
| 70 | 69.8 | 76.2 | C50LR-BR24-44 | 02861-02444 | |||
| 77 | 76.2 | 82.6 | C50LR-BR24-48 | 02861-02448 | |||
| 83 | 82.6 | 88.9 | C50LR-BR24-52 | 02861-02452 | |||
| 89 | 88.9 | 95.3 | C50LR-BR24-56 | 02861-02456 | |||
| 95 | 95.3 | 101.6 | C50LR-BR24-60 | 02861-02460 |
