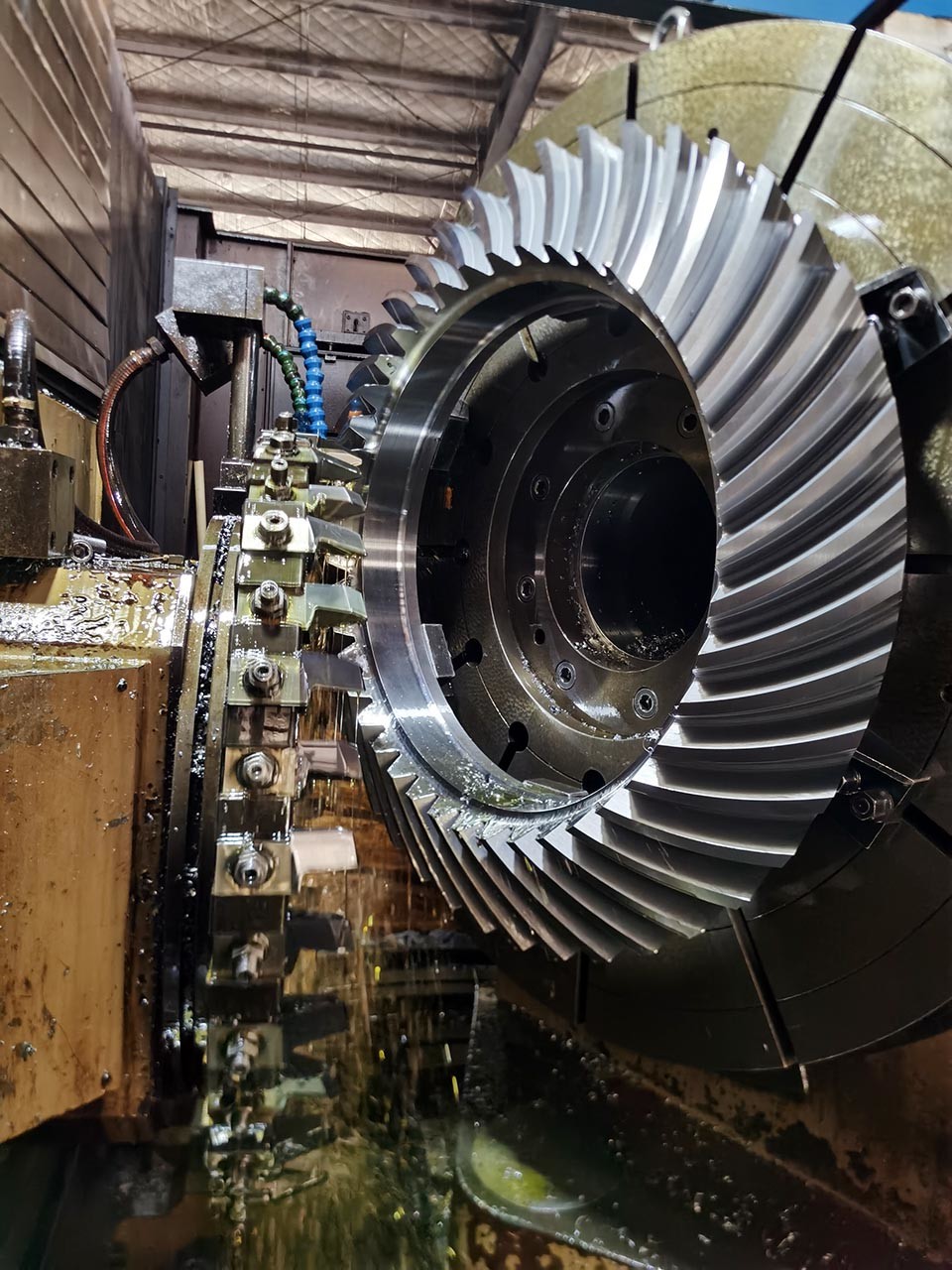

20 Module Helix Bevel Gear Teeth Milling

20 Module Helix Bevel Gear Gear Teeth Milling

Helical bevel gears are a type of mechanical gear system that combines the features of helical gears and bevel gears. They are used to transmit power and motion between two intersecting shafts that are not parallel to each other. Helical bevel gears are known for their ability to transmit high torque while operating smoothly and quietly.

The design of helical bevel gears includes curved teeth that are cut at an angle to the gear axis. This helical tooth arrangement allows for gradual and smooth engagement between the gears, resulting in reduced noise and vibration compared to straight-toothed bevel gears. The helical teeth also distribute the load more evenly across the gear face, increasing the gear system's overall strength and durability.

Helical bevel gears find applications in various industries, including automotive, aerospace, industrial machinery, and power transmission systems. They are commonly used in applications that require high torque transmission, precise motion control, and compact design, such as in gearboxes, differentials, and power transmission systems with intersecting shafts.

The advantages of helical bevel gears include their high efficiency, improved load-carrying capacity, and smooth operation. They can handle both high-speed and high-torque applications, making them versatile in various industrial settings. Additionally, their compact design allows for efficient space utilization in tight or limited spaces.

In summary, helical bevel gears are a type of gear system that combines the advantages of helical gears and bevel gears. They provide smooth and quiet operation, high torque transmission, and are used in a wide range of applications across different industries.
