| Application: | Transmission | Accuracy Grade: | DIN 6 |
|---|---|---|---|
| Outer Diameter: | 697mm | Number Of Teeth: | Customized |
| Face Width: | 90 | Backlash: | ≤0.05mm |
| Manufacturing Process: | Worm Shaft Grinding | Module: | 1-10 |
| Highlight: | Worm Shaft For Industrial,Customized Number Of Teeth Worm Shaft,DIN 6 Accuracy Grade Worm Shaft |
||

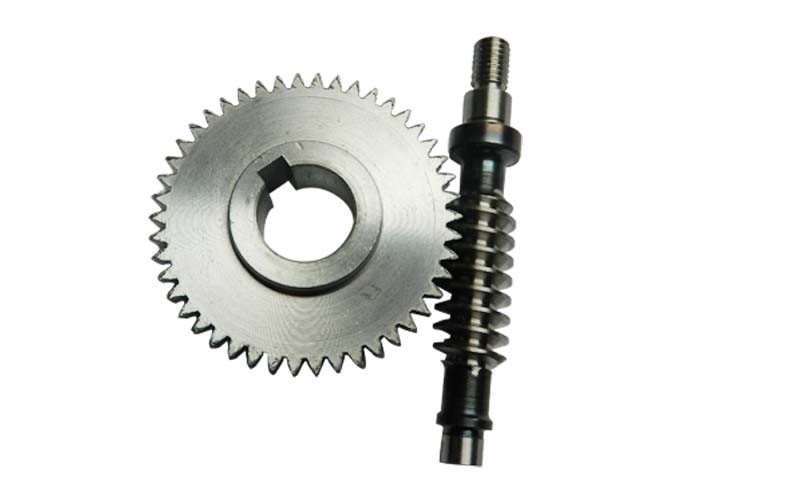

The Worm Shaft and Worm Gear is designed to operate with a module of 1-10, ensuring compatibility with a wide range of gear ratios. The product is also treated with black oxide surface treatment, ensuring a long-lasting and durable finish that protects against rust and corrosion.
With a hardness rating of HRC45-55, the Worm Shaft and Worm Gear is built to withstand heavy loads and high stress environments. The product is also designed with a low backlash of ≤0.05mm, ensuring smooth and precise operation.
Overall, the Worm Shaft and Worm Gear is an excellent choice for those seeking a high-quality component for their Helical Worm Gear Reducer or Helical Worm Gear Motor. With its high efficiency, precision design, and durable construction, this product is sure to provide reliable performance for years to come.
| Outer Diameter | 697mm |
| Surface Treatment | Black Oxide |
| Backlash | ≤0.05mm |
| Hardness | HRC45-55 |
| Module | 1-10 |
| Application | Transmission |
| Face Width | 90 |
| Number Of Teeth | Customized |
| Accuracy Grade | DIN 6 |
| Manufacturing Process | Worm Shaft Grinding |
The Worm Shaft and Worm Gear product is specifically designed for high-speed applications that require high accuracy and low backlash. The product's accuracy grade is DIN 6, which ensures minimal friction and maximum efficiency. The backlash of the product is less than or equal to 0.05mm, which makes it highly precise and suitable for high-performance applications.
The Worm Shaft and Worm Gear product is coated with black oxide surface treatment, which gives it a sleek and corrosion-resistant finish. The black oxide coating also enhances the product's durability and resistance to wear and tear. The product's weight is 0.2Kg, which makes it lightweight and easy to handle.
The Worm Shaft and Worm Gear product is widely used in various transmission applications, including conveyor systems, power transmission systems, and lifting systems. The product's unique design allows it to transmit power and motion smoothly and efficiently, making it ideal for high-performance applications.
The Worm Shaft and Worm Gear product is especially useful in applications that require high torque and low speed, such as in herringbone gears. The herringbone gears have a unique design that allows them to transmit power and motion smoothly and efficiently. The Worm Shaft and Worm Gear product is an essential component in herringbone gears and is widely used in various industrial applications.
In summary, the Worm Shaft and Worm Gear product is an essential component in transmission systems. Its high accuracy, low backlash, black oxide surface treatment, and lightweight design make it an ideal choice for various high-performance applications. Its unique design also makes it suitable for use in herringbone gears in various industrial applications.
Whether you require a Double Reduction Worm Gear Reducer, Helical Worm Gear Motor, or Herringbone Gears, we can tailor our product to suit your requirements. Contact us today to discuss your customization needs.
