16.477 Module Steel Spiral Bevel Gears With Internal Rectangular Spline

Basic Information
Place of Origin: CHINA
Brand Name: YIZGEAR
Model Number: SB2207002
Minimum Order Quantity: 2 Sets
Price: $300/ Piece
Packaging Details: Plywood Crate
Delivery Time: 62 Days
Payment Terms: T/T, L/C
Supply Ability: 500 Sets/Month
Detail Information
Module: 16.477 Pressure Angle: 20°
Helix Angle: 15° Material: 17CrNiMo6
Heat Treatment: Carburizing Manufacture Processing: Gear Teeeth Grinding
Highlight:

16.477 Module Steel Spiral Bevel Gears

,

Internal Rectangular Spline bevel spiral gear

,

16.477 Module bevel spiral gear


Product Description

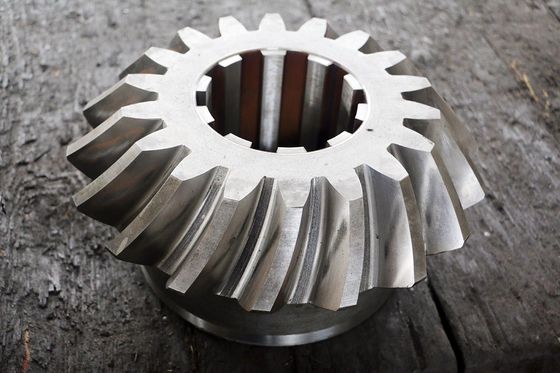

16.477 Module Steel Spiral Bevel Gears with Internal Rectangular spline

1) Description of sprail bevel gear



Sprial bevel gear is a special type bevel gear, a sprial bevel gear with a cruve helical angle.



2) Gear quality of sprial bevel gear



Standard sprail bevel gear manufactured by gear teeth milling processing.



The sprial bevel gear can be with gear teeth grinding processing after heat treatment.



The gear teeth quality can reach ISO 5-6 grade (AGMA 10-11 Grade)



Products Spiral Bevel Gears With Internal Splines
Custom Made
Gear Profile Type Gleason
Worm Gear Manufacturing Gear Milling & Gear Teeth Grinding
Worm Shaft Teeth Grinding
Module (M) 16.477
Number of Teeth (Z) 18 & 23T
Pressure Angle (α) 20°
Lead Angle 15°
Worm Shaft Accuracy Grade ISO 6 Grade
Heat Treatment Carburizing
Surface Hardness 58-62HRC



STEEL CODE GRADES COMPARISON
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi   18XГT   SMK22
20Cr2Ni4   20X2H4A
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA   40XH2MA/
40XHMA
4340 SNCM439 40NiCrMo6/
36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420
