| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | HG2208261 |
| Minimum Order Quantity: | 1 Piece |
| Price: | $80/ Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 50 Days |
| Payment Terms: | L/C, T/T, Western Union, D/P |
| Supply Ability: | 1000 Pieces/Month |
| Tooth Number: | 68 | Helical Angle: | 20° |
|---|---|---|---|
| Pressure Angle: | 20° | Width: | 80mm |
| Hardness: | 45-50 HRC | Material: | AISI 4140 |
| Highlight: | AISI 4140 Forging Steel Transmission Gears,Helical Transmission Gears 9 Module,Industrial Gearbox Helical Transmission Gears |
||

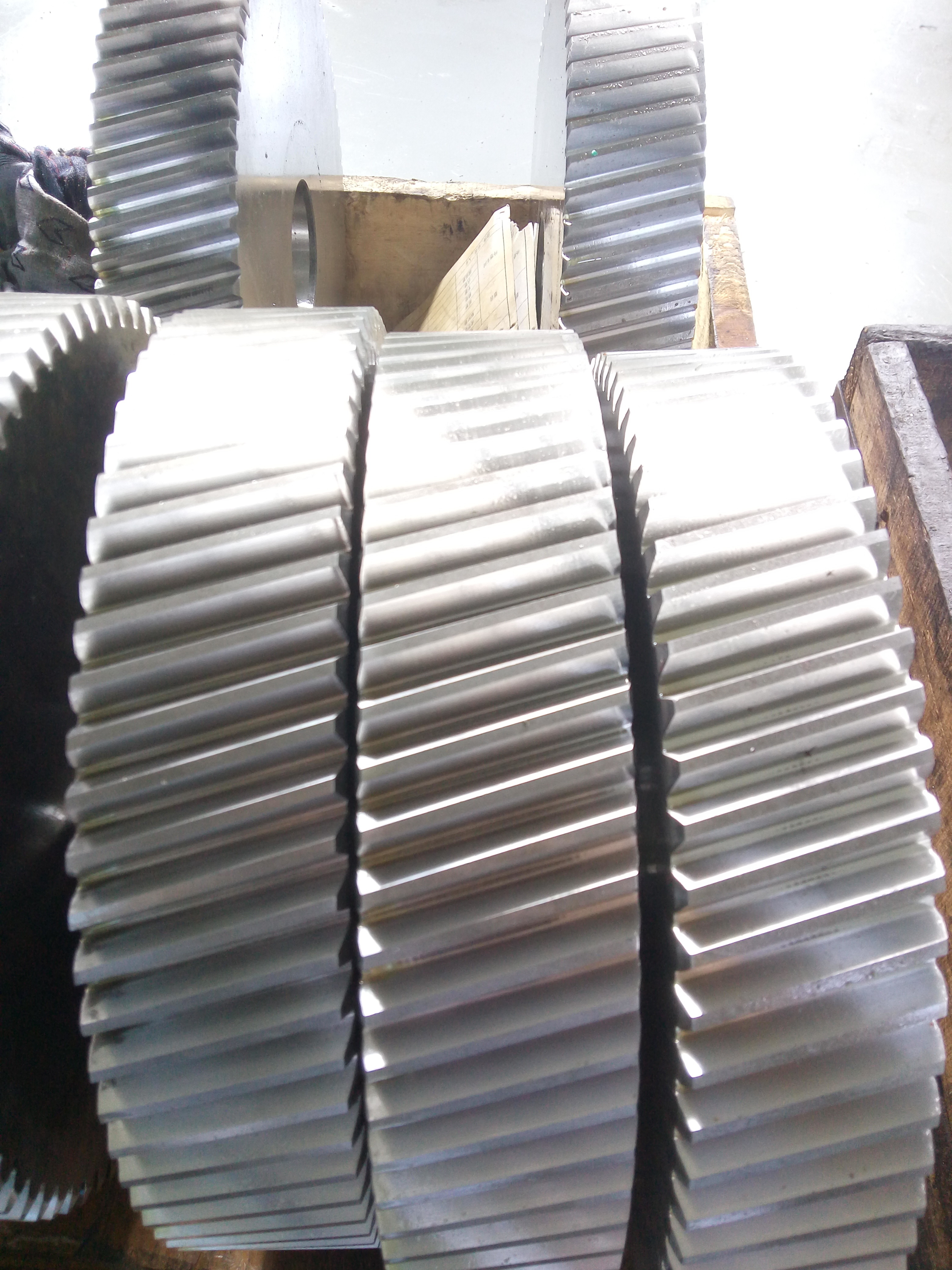

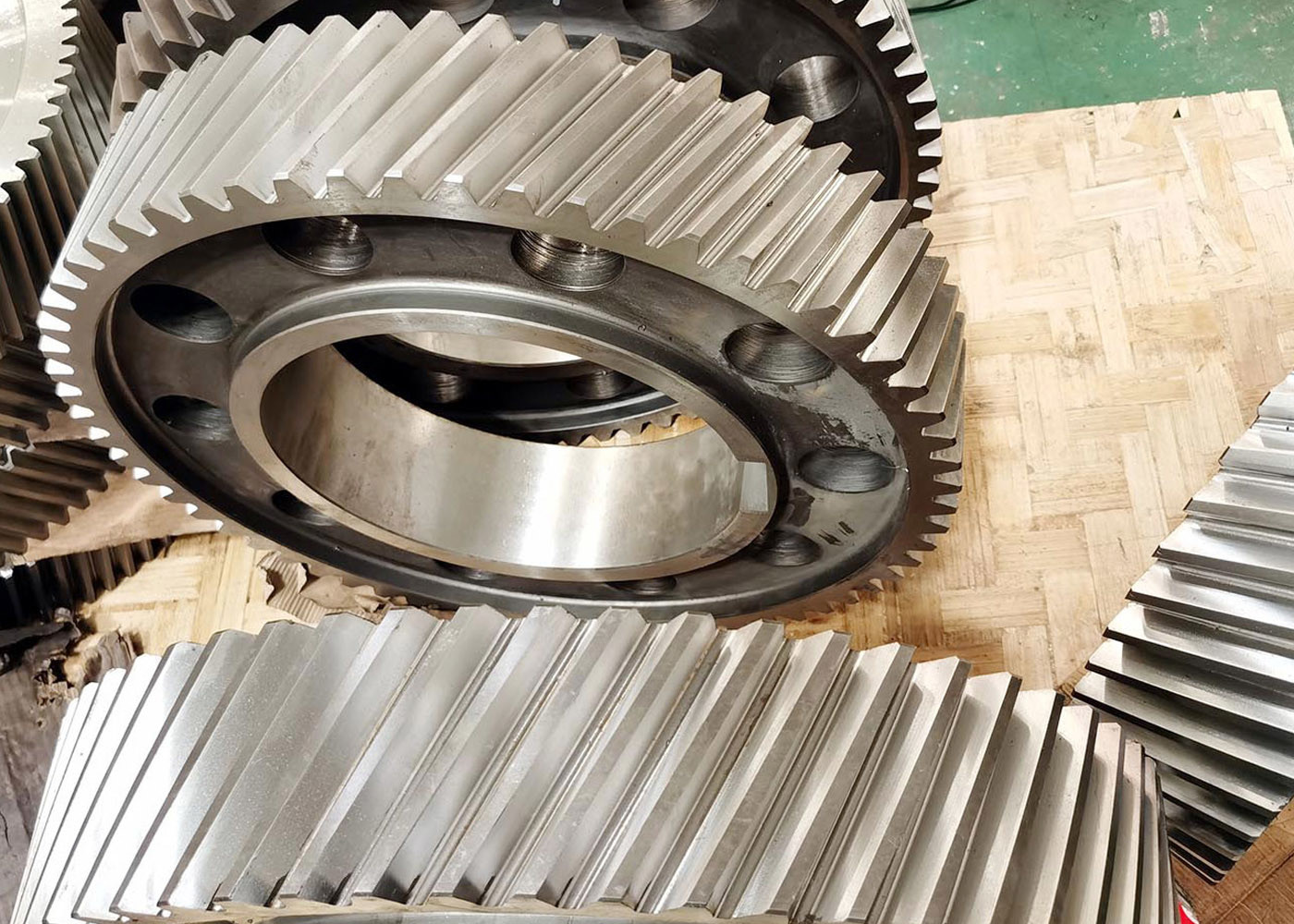

1) Descripción de Helix Gear
Los engranajes helicoidales están formados por cortadores que producen un ángulo que permite que varios dientes engranen simultáneamente.
2) Características del Helix Gear
Como contacto deslizante de los dientes de engrane, engranaje helicoidal con más capacidad de carga y funcionamiento silencioso y suave.
3) Especificaciones de montaje de Helix Gear
a) Montaje de chavetero
b) Tornillo de fijación
c) Tornillos de sujeción del cubo
d) Dividir
e) Agujero simple
| Products | Helical Gears |
| Custom Made | √ |
| Gear Profile Type | Cylindrical Gear |
| Gear Teeth manufacturing | Gear Hobbing |
| Gear Teeth Grinding | √ |
| Module (M) | 9 |
| Number of Teeth (Z) | 68 |
| Pressure Angle (α) | 20° |
| Helix Angle (β) | 20° |
| Teeth Accuracy Grade | ISO 6-7 Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
