| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | HG22083103 |
| Minimum Order Quantity: | 1 Piece |
| Price: | $150/ Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 50 Days |
| Payment Terms: | L/C, T/T, Western Union, D/P |
| Supply Ability: | 1000 Pieces/Month |
| Material: | 40CrNiMoA | Heat Treatment: | Induction Hardening |
|---|---|---|---|
| Manufacture: | Gear Grinding | Tip Diameter: | 550mm |
| Profile Type: | Helical Gear | Accuracy: | ISO 6 Grade |
| Highlight: | Single Helical Gears Gear Grinding,ISO 6 right hand helical gear,ISO 6 Single Helical Gears |
||

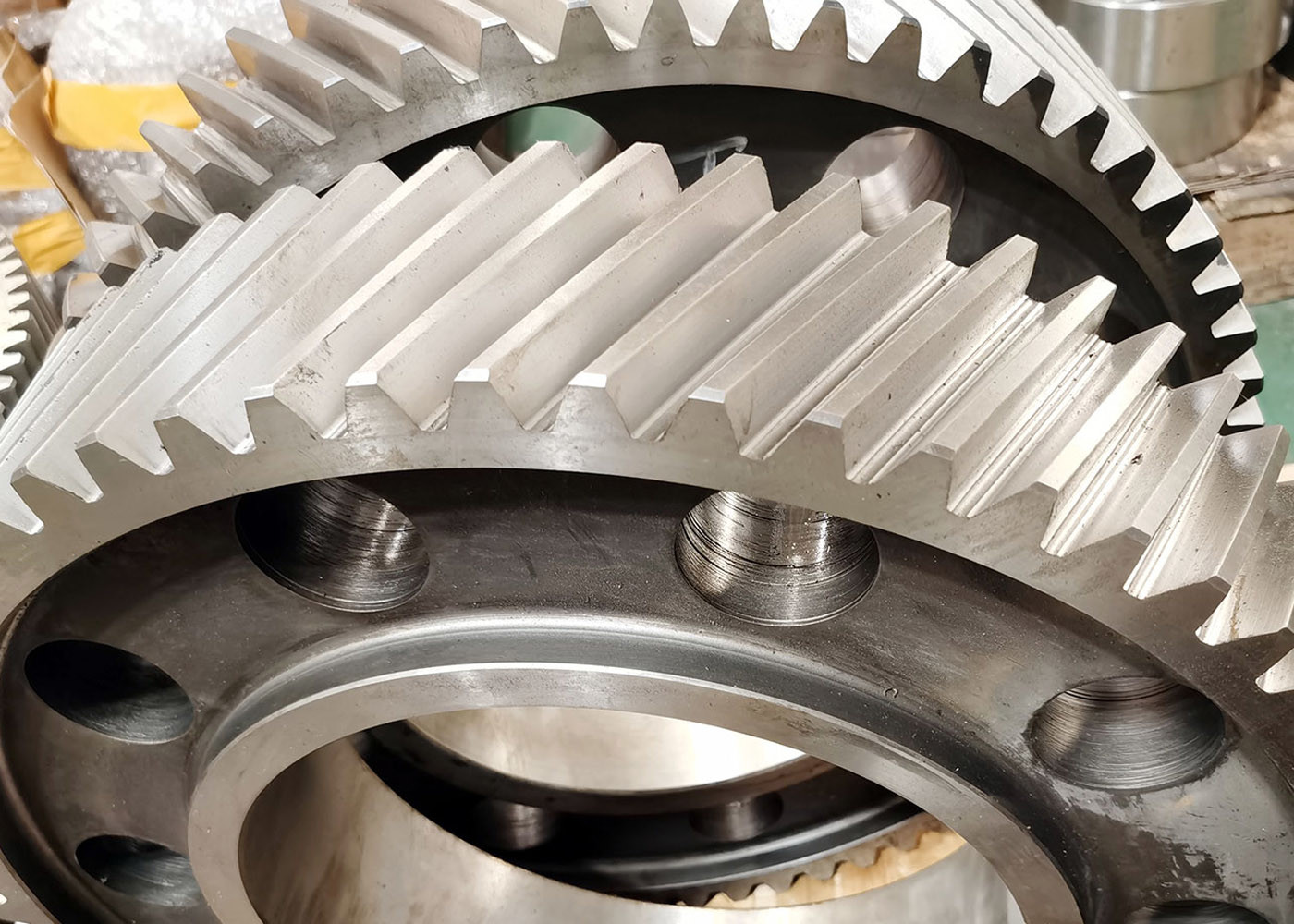

1) Características del Helix Gear
Engranaje de hélice con la fuerza de empuje axial causada por la forma de hélice
2) Calidad de los engranajes de Helix Gear
La precisión del engranaje helicoidal puede alcanzar el grado ISO 5-6 después de rectificar los dientes del engranaje.
3) Aplicaciones de Helix Gear
Componentes de transmisión, automóvil, reductores de velocidad
| Products | Helical Gears |
| Custom Made | √ |
| Gear Profile Type | Cylindrical Gear |
| Gear Teeth manufacturing | Gear Hobbing & Gear Grinding |
| Gear Teeth Grinding | √ |
| Module (M) | Custom |
| Number of Teeth (Z) | Custom |
| Pressure Angle (α) | 20° |
| Helix Angle (β) | Custom |
| Teeth Accuracy Grade | ISO 6-7 Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
