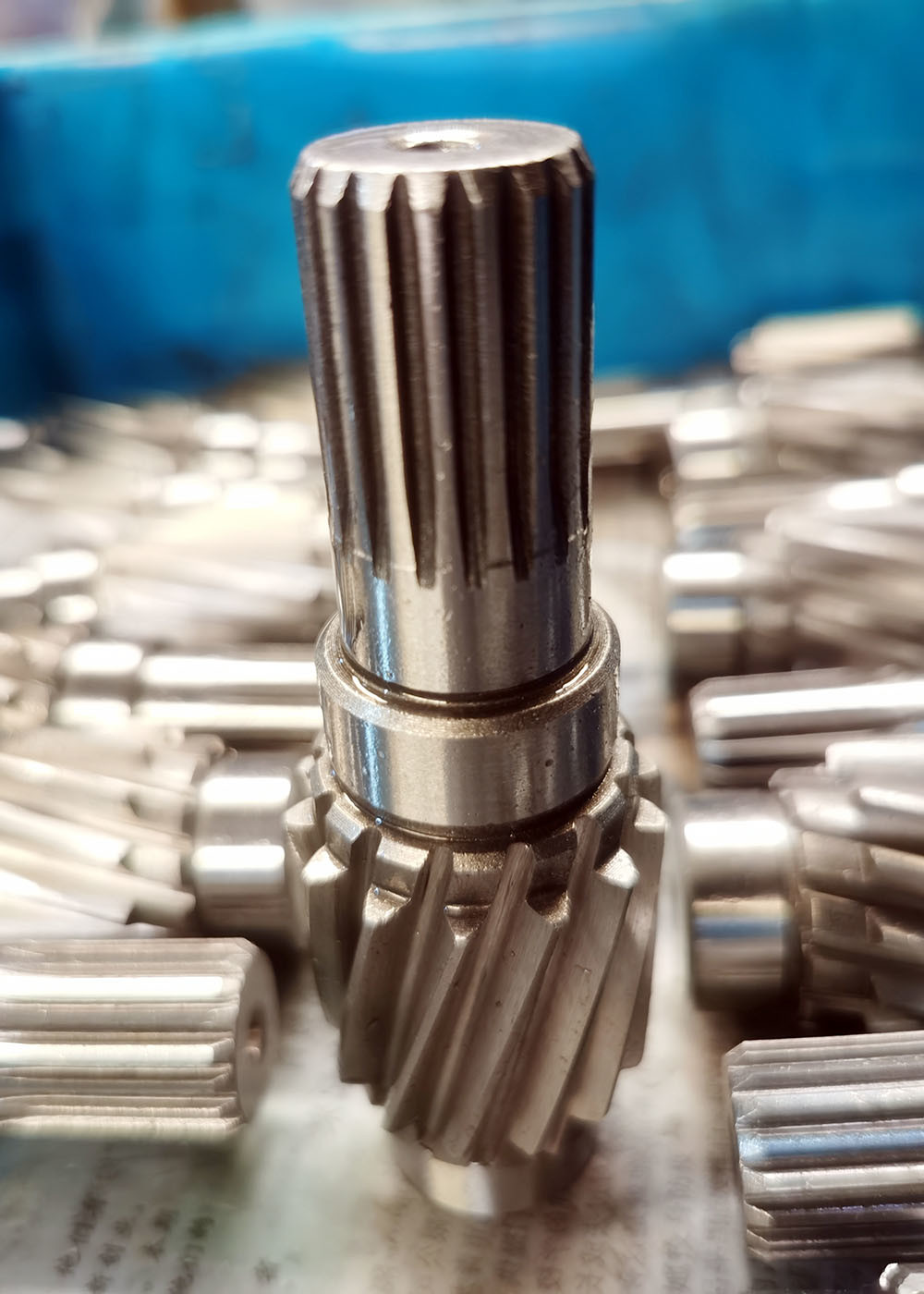

20CrMnTi Steel Single Helical Pinion Gear Shaft With Involute Splines

20CrMnTi Steel Single Helix Pinion Gear Shaft With Involute Splines

1)  Description of Helix Gears

Helix gears have teeth that are set on an angle to the gear axis. Since the teeth engage more gradually,

they have a smoother and quieter operation than spur gears. Helical gears also have greater tooth strength

and a higher load carrying capacity. Further, helical gears can transmit power between either parallel or

non-parallel shafts, while spur gears can only transfer power between parallel shafts. A downside to

helical gears is they produce an axial thrust that needs to be accounted for; something not needed with spur gears.
