| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | HG22083102 |
| Minimum Order Quantity: | 1 Piece |
| Price: | $80/ Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 50 Days |
| Payment Terms: | L/C, T/T, Western Union, D/P |
| Supply Ability: | 1000 Pieces/Month |
| Tooth Number: | 76 | Helix Angle: | 23° |
|---|---|---|---|
| Pressure Angle: | 20° | Tooth Width: | 80mm |
| Hardness: | 45-50 HRC | Material: | AISI 4140 |
| Highlight: | 12 Module Single Helix Gears,Transmission Gears 76 Tooth,12 Module Single Helix Transmission Gears |
||

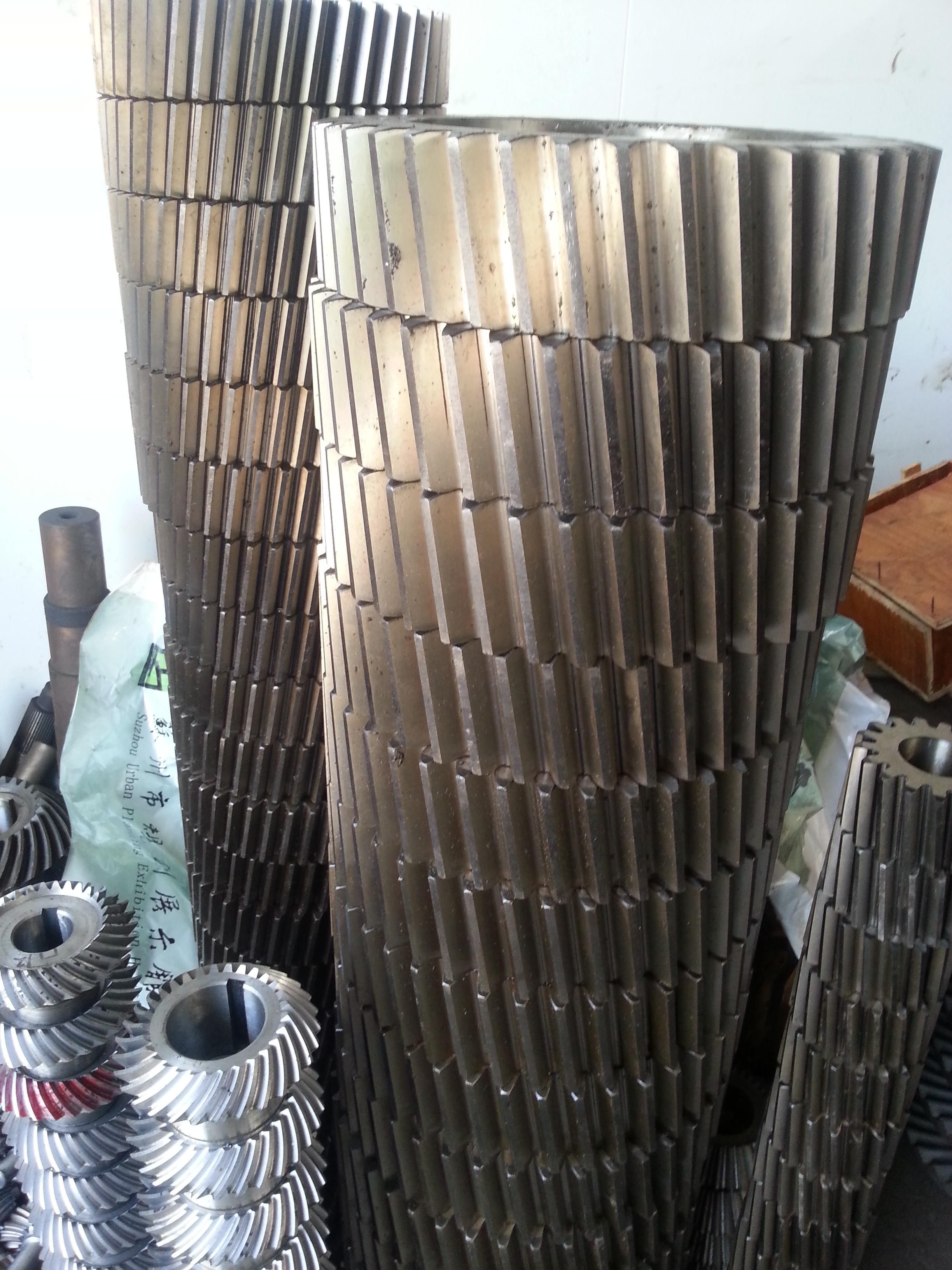

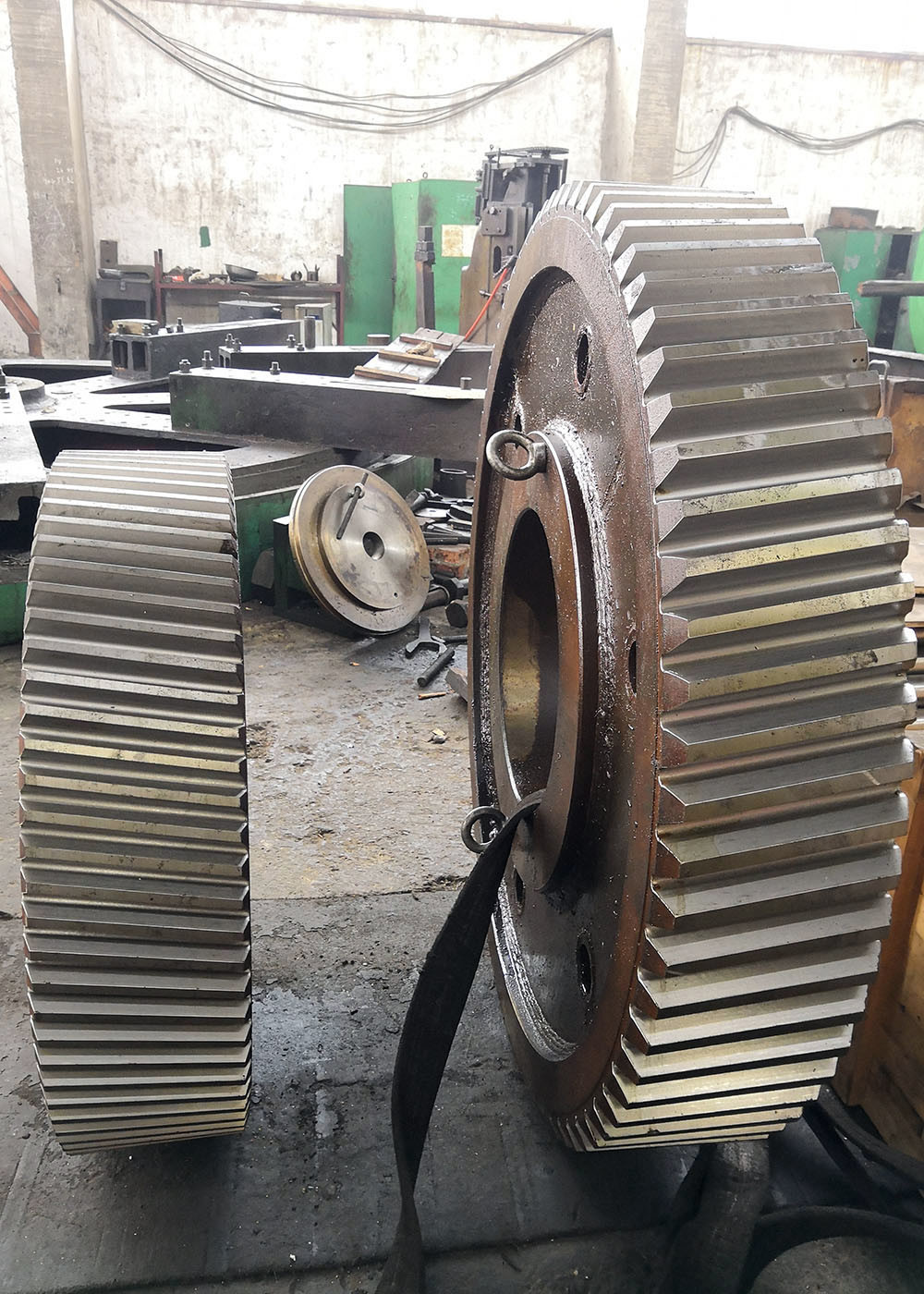

1) Features of Helical Gears
Helical gears can transmit energy between parallel or perpendicular axes through the use of helical teeth.
They are designed to distribute pressure gradually along the whole tooth.
Because of their tooth inclination, helical gears run smoother and quieter than other gears and are able to carry heavy loads efficiently.
2) Types of Helical Gears
Helical gears are available in two teeth configurations: left handed and right hand.
Helical gears transmit energy through two axial configurations: parallel and perpendicular.
| Products | Helical Gears |
| Custom Made | √ |
| Gear Profile Type | Cylindrical Gear |
| Gear Teeth manufacturing | Gear Hobbing |
| Gear Teeth Grinding | √ |
| Module (M) | 12 |
| Number of Teeth (Z) | 76 |
| Pressure Angle (α) | 20° |
| Helix Angle (β) | 23° |
| Teeth Accuracy Grade | ISO 6-7 Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
