| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | GB22112302 |
| Minimum Order Quantity: | 1 Set |
| Price: | $1000/ Set |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 55 Days |
| Payment Terms: | L/C, T/T, Western Union, D/P |
| Supply Ability: | 150 Sets/Month |
| Material: | 17CrNiMo6/42CrMo | Type: | Three Planet Gears |
|---|---|---|---|
| Tooth Profile: | Spur Gear & Internal Gear | Hardness: | 58-62 HRC |
| Applications: | Coal Mining | Color: | Yellow |
| Highlight: | 42CrMo Reducer Gear Box,Reducer Gear Box Epicyclic Gear Train,Three Planet Gears Epicyclic Gear Train |
||

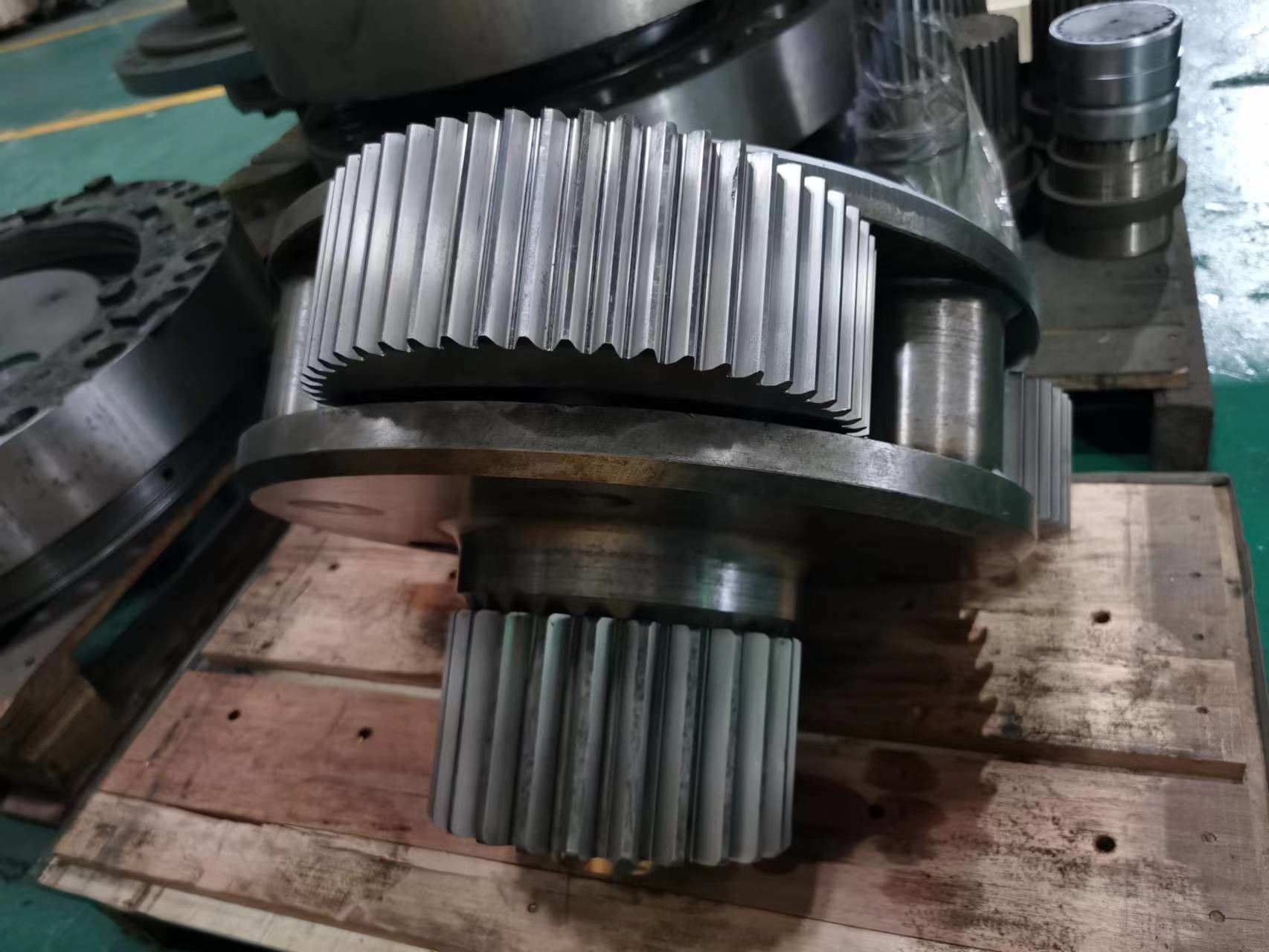

1) Description of Epicyclic Gear Train
Epicyclic gearing or planetary gearing is a gear system consisting of one or more outer, or planet, gears or pinions, revolving about a central sun gear or sun wheel.
Typically, the planet gears are mounted on a movable arm or carrier, which itself may rotate relative to the sun gear.
Epicyclic gearing systems also incorporate the use of an outer ring gear or annulus, which meshes with the planet gears. P
lanetary gears (or epicyclic gears) are typically classified as simple or compound planetary gears.
2) Advantage of Planetary Gearbox
Planetary gear trains provide high power density in comparison to standard parallel axis gear trains.
They provide a reduction in volume, multiple kinematic combinations, purely torsional reactions, and coaxial shafting.
Disadvantages include high bearing loads, constant lubrication requirements, inaccessibility, and design complexity.
| Products | Gear Box/ Gear Reducer |
| Custom Made | √ |
| Gear Profile Type | Helical Gear/ Double Helical Gear |
| Gear Teeth manufacturing | Gear Hobbing/ Gear Grinding |
| Gear Teeth Grinding | √ |
| Module (M) | Custom |
| Number of Teeth (Z) | Custom |
| Pressure Angle (α) | 20°/ 14.5° |
| Helix Angle (β) | Custom |
| Teeth Accuracy Grade | ISO 6-7 Grade |
| Heat Treatment | Carburizing/Cement Quenching/Nitriding |
| Surface Hardness | 58-62 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
