| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | HB2207004 |
| Minimum Order Quantity: | 1 Set |
| Price: | $1000/ Set |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 67 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50 Set/Month |
| Profile Type: | Herringbone Gear | Material: | Forging Steel |
|---|---|---|---|
| Brand: | OEM | Hardness: | 230-260 HB |
| Manufacture Processing: | Gear Milling | Color: | Original Metallic Color |
| Highlight: | Steel Factory Herringbone Gear Set,Pinion Herringbone Gear Set,Steel Factory Herringbone Gears |
||
1) Description of herringbone gear

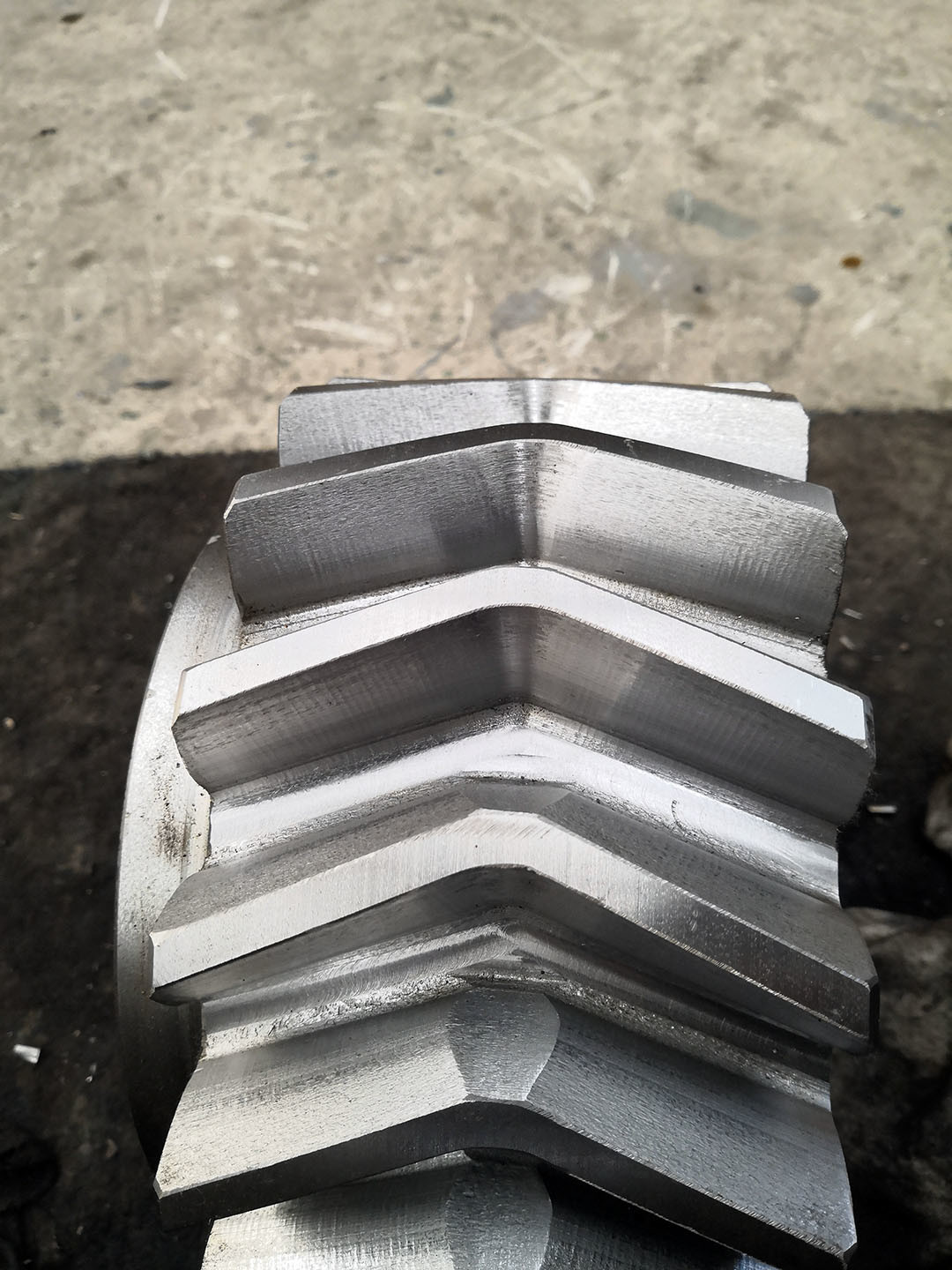

Herringbone gear is a specific type of the double helical gear. It is a special type of gear combination of
two helical gears of opposite hands(left hand and right hand).
Herringbone gears do not produce an additional axial load.
2) Features of herringbone gear
a) Transferring power smoothly, because more than two teeth will be enmeshed at any moment in time.
b) Without side-thrust axial load.
3) Applications of herringbone gear
Steam turbine, heavy duty applicaitons, rolling mill.
| Custom Made | √ |
| Gear Profile Type | Herringbone |
| Gear Teeth manufacturing | Gear Milling |
| Gear Teeth Grinding | Null |
| Module (M) | 10 |
| Number of Teeth (Z) | 16 |
| Pressure Angle (α) | 20° |
| Helix Angle (β) | Custom |
| Teeth Accuracy Grade | ISO 8-9 |
| Heat Treatment | Quenching & Tempering |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
