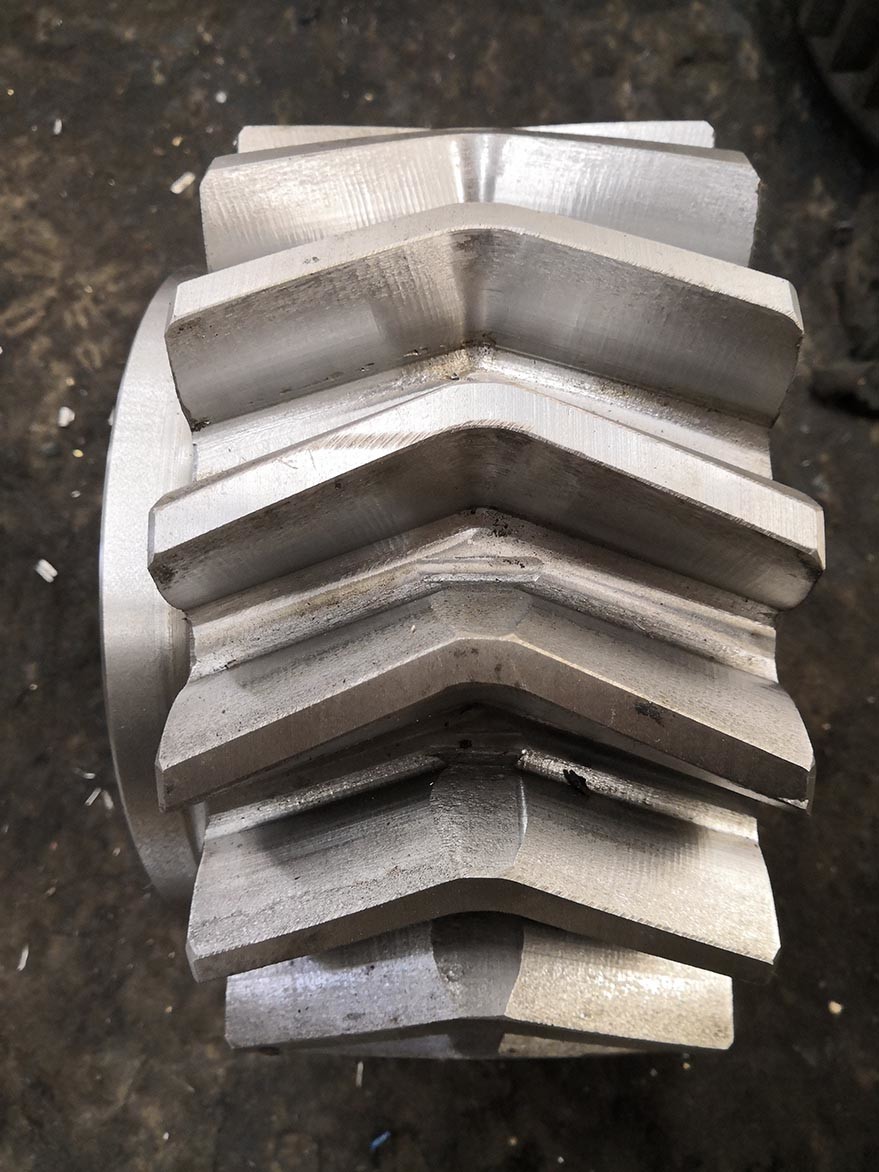

AISI 4140 Steel Pinion Herringbone Gear Transmission Parts

Basic Information
Place of Origin: CHINA
Brand Name: YIZGEAR
Model Number: HB22082303
Minimum Order Quantity: 1 Piece
Price: 300
Packaging Details: Plywood Crate
Delivery Time: 60 days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 500 Pieces/Month
Detail Information
Brand: OEM HS Code: 84834090
Hardness: 260-290 HB Tip Diameter: 970mm
Inner Type: Taper Hole Material: 42CrMo
Highlight:

Steel Pinion Herringbone Gear

,

Herringbone Gear Transmission Parts

,

AISI 4140 Steel Pinion Herringbone Gear


Product Description

Custom-made AISI 4140 Steel Pinion Herringbone Gear Transmission Parts

1)Características del equipo de espiga



a) No se proporciona espacio entre dos mitades en Herringbone Gear.



Los dientes con hélice de mano izquierda tocan los dientes con hélice de mano derecha



b) Tiene menos longitud axial y, por lo tanto, se puede usar donde el espacio es limitado



2) Tratamiento térmico de engranajes en espiga



Engranajes en espiga generalmente solo con tratamiento térmico de temple y revenido.



3) Aplicación de engranajes en espiga



Aplicaciones de servicio pesado, especialmente en fábricas de acero y fábricas de cemento.



Custom Made
Gear Profile Type Herringbone
Gear Teeth manufacturing Gear Milling
Gear Teeth Grinding Null
Module (M) Custom
Number of Teeth (Z) 14
Pressure Angle (α) 20°
Helix Angle (β) Custom
Teeth Accuracy Grade ISO 8-9
Heat Treatment Quenching & Tempering



STEEL CODE GRADES COMPARISON
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi   18XГT   SMK22
20Cr2Ni4   20X2H4A
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA   40XH2MA/
40XHMA
4340 SNCM439 40NiCrMo6/
36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420

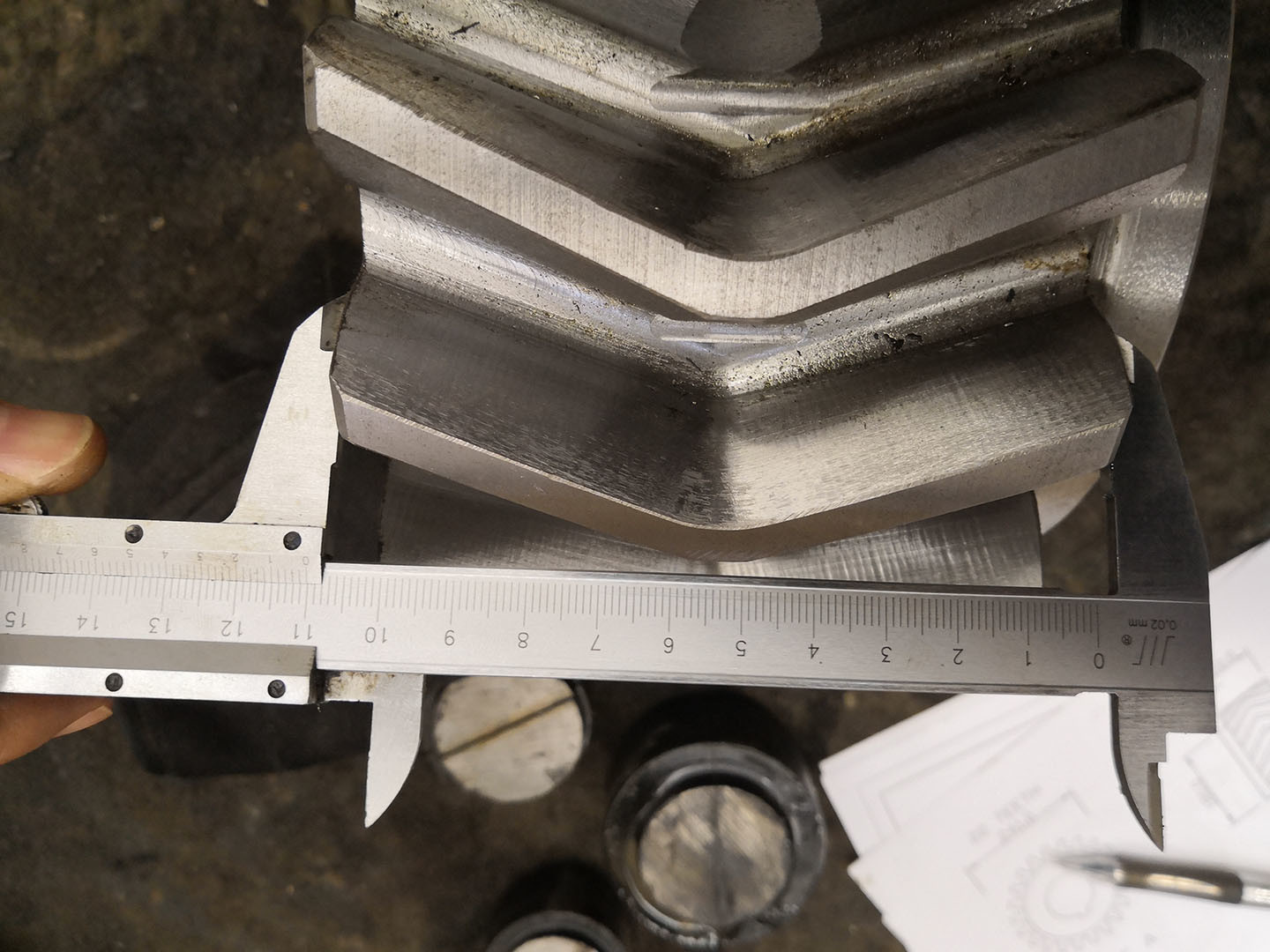

AISI 4140 Steel Pinion Herringbone Gear Transmission Parts 0

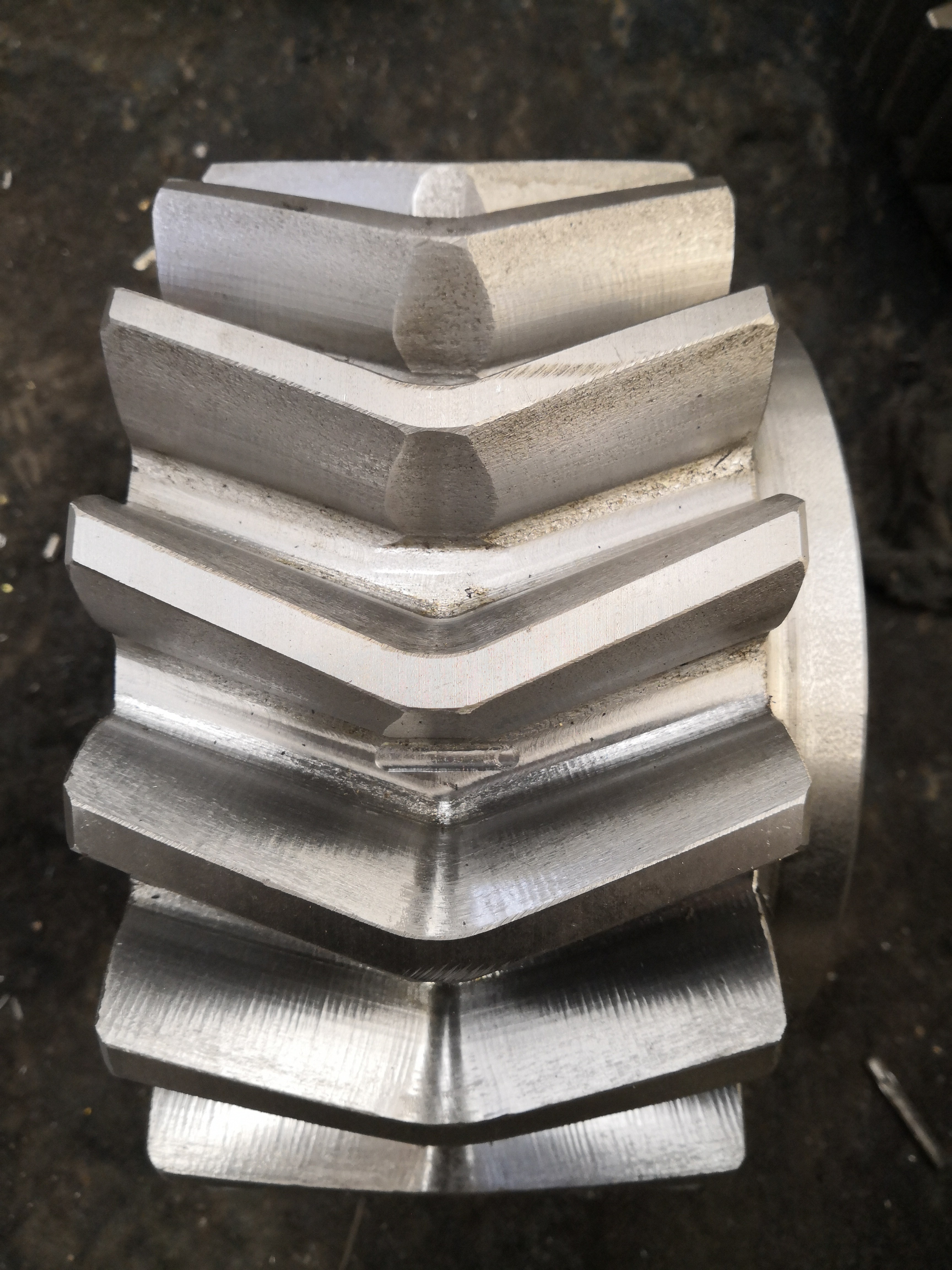

AISI 4140 Steel Pinion Herringbone Gear Transmission Parts 1
