| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | HB22082302 |
| Minimum Order Quantity: | 1 Set |
| Price: | $1000/ Set |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 75 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50 Set/Month |
| Type: | Cylindrical Gear | Face Width: | 120 |
|---|---|---|---|
| Hardness: | 45-50 HRC | Helix Angle: | 25° |
| Pressure Angle: | 20° | Lenth: | 2200mm |

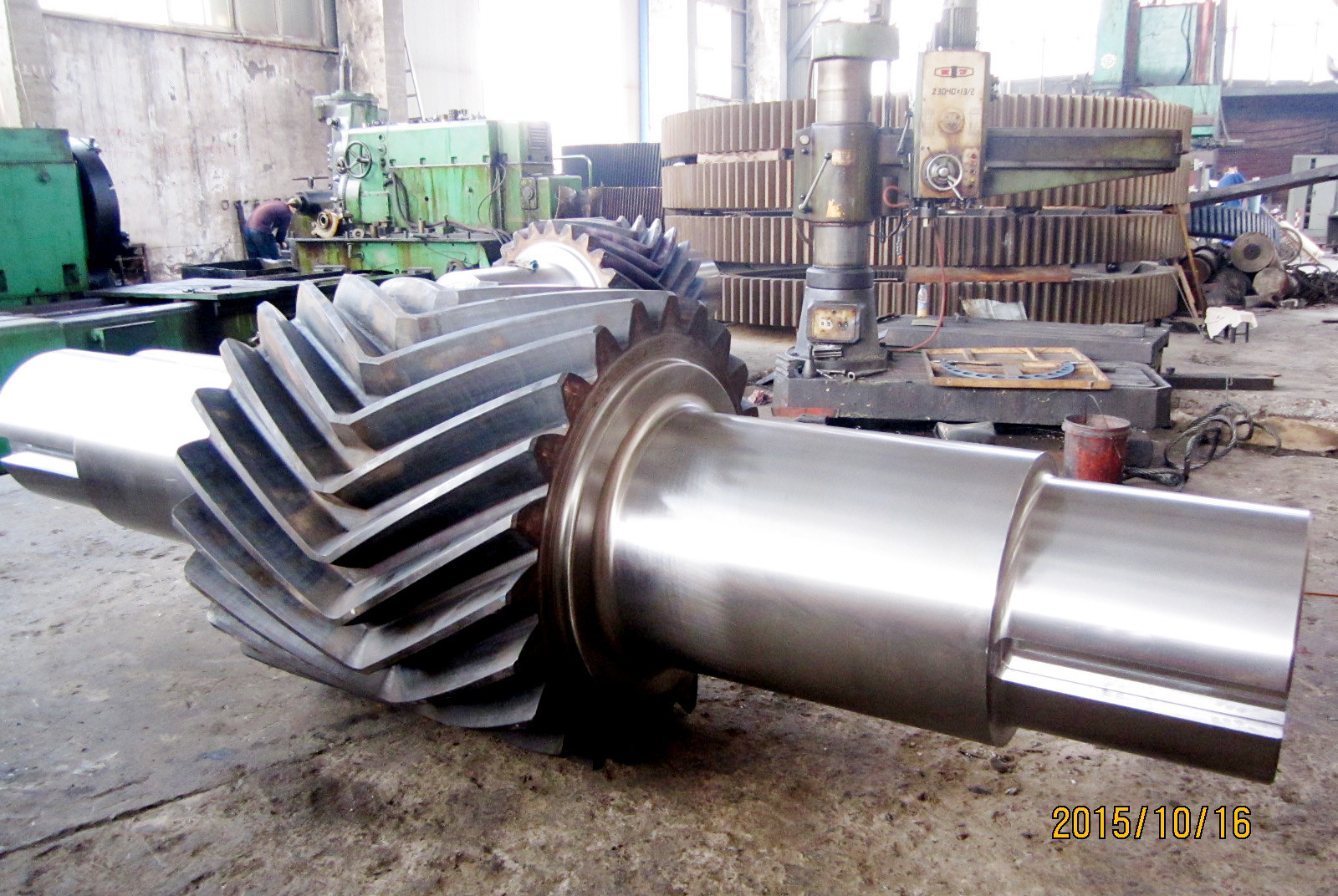

| Highlight: | Forged Steel Transmission Spare Parts,SAE 4340 Herringbone Gear Shaft,Transmission Herringbone Gear Shaft |
||
1) Applications of herringbone gear
The herringbone gears are used in the torque gearbox. Used in a steam turbine to marine propulsion. It is
used in roller shafts in steel mills. Everything needs to be cared for, maintaining the things we care for can
expand their life, just like gadgets, machines also have some requirements which act as fuel to them
2) Features of herringbone gear
The absence of thrust force in herringbone gear gives it provision to use a higher helix angle which can reach up to 45°.
| Custom Made | √ |
| Gear Profile Type | Herringbone |
| Gear Teeth manufacturing | Gear Milling |
| Gear Teeth Grinding | Null |
| Module (M) | 10 |
| Number of Teeth (Z) | 16 |
| Pressure Angle (α) | 20° |
| Helix Angle (β) | Custom |
| Teeth Accuracy Grade | ISO 8-9 |
| Heat Treatment | Quenching & Tempering |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
