| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | HG22082603 |
| Minimum Order Quantity: | 1 Piece |
| Price: | $150/ Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 50 Days |
| Payment Terms: | L/C, T/T, Western Union, D/P |
| Supply Ability: | 1000 Pieces/Month |
| Material: | AISI 8620 | Heat Treatment: | Carburizing |
|---|---|---|---|
| Teeth Number: | 52 | Module: | 11 |
| Accuracy: | ISO 6 Grade | Face Width: | 80mm |
| Highlight: | AISI 8620 right hand helical gear,AISI 8620 Single Helical Gear,Single Helical Ground Cylindrical Gears |
||
1) Características del Helix Gear
Engranaje de hélice con la fuerza de empuje axial causada por la forma de hélice
2) Calidad del engranaje del engranaje helicoidal
La precisión del engranaje helicoidal puede alcanzar el grado ISO 5-6 después de rectificar los dientes del engranaje.

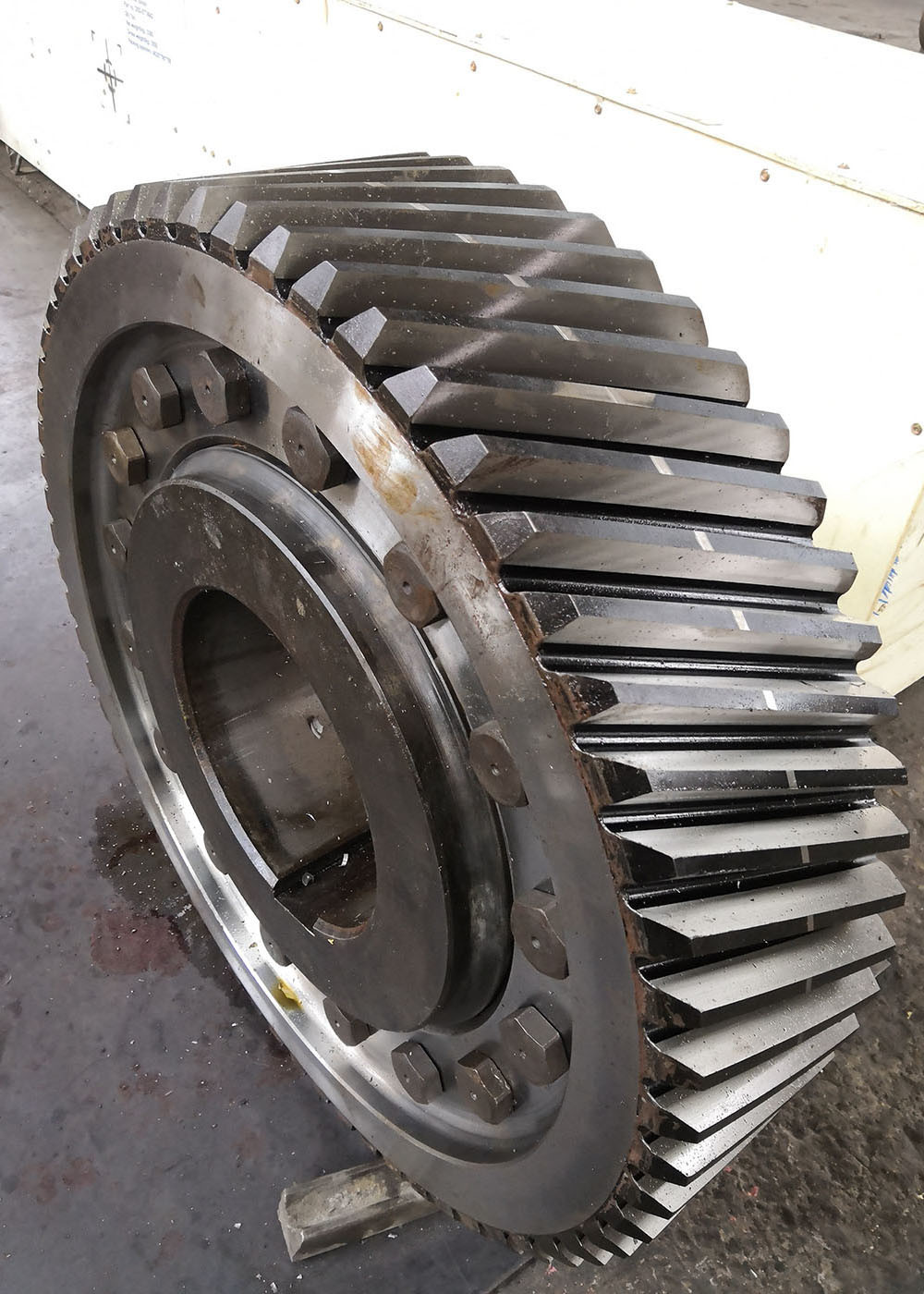

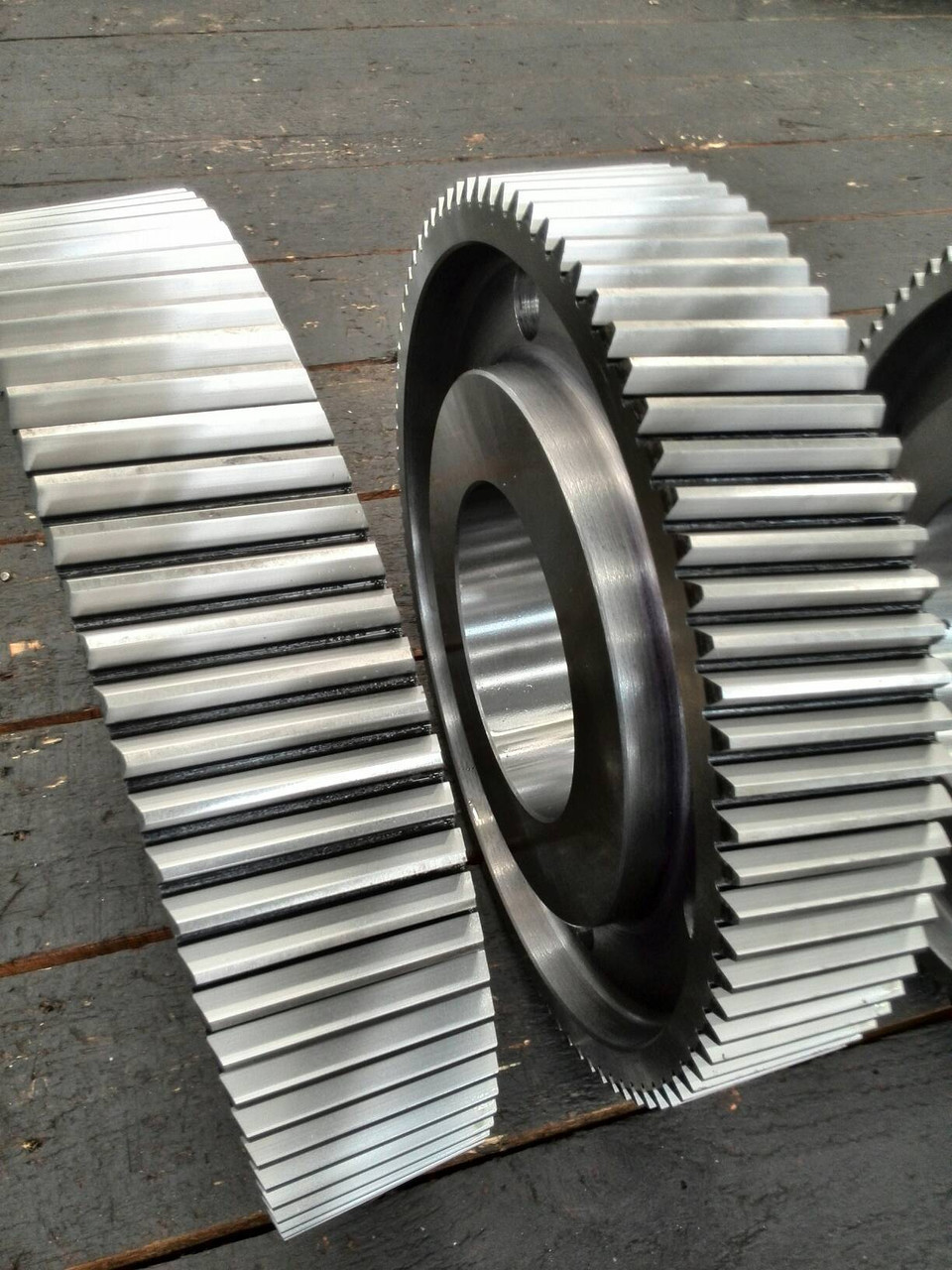

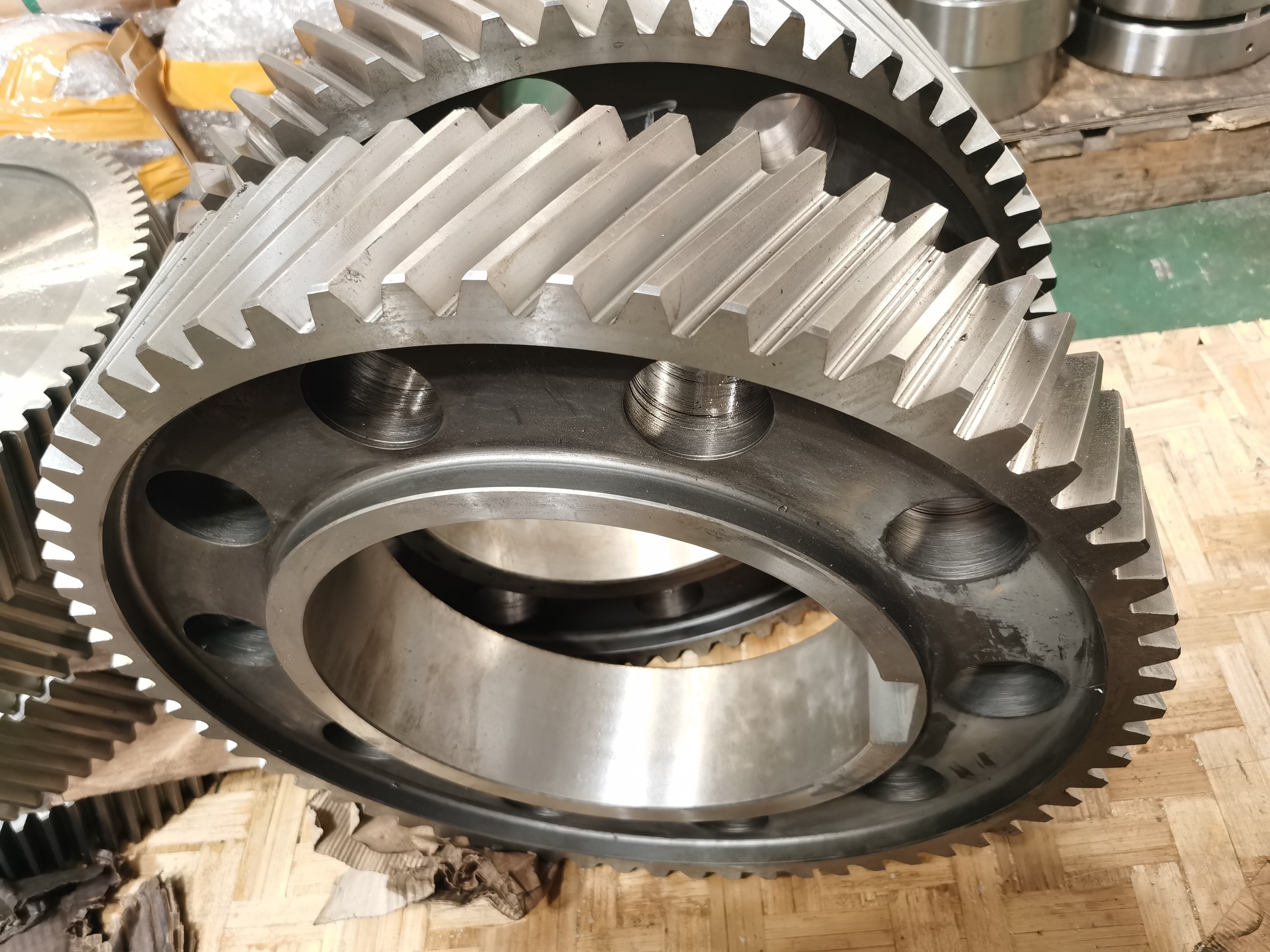

3) Descripción de Helix Gear
Helix Gear es un engranaje de forma cilíndrica con dientes helicoidales. El engranaje helicoidal puede soportar más carga que el engranaje recto y funciona con menos ruido.
| Products | Helical Gears |
| Custom Made | √ |
| Gear Profile Type | Cylindrical Gear |
| Gear Teeth manufacturing | Gear Hobbing |
| Gear Teeth Grinding | √ |
| Module (M) | 11 |
| Number of Teeth (Z) | 52 |
| Pressure Angle (α) | 20° |
| Helix Angle (β) | Custom |
| Teeth Accuracy Grade | ISO 6-7 Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
