| Compatibility: | Can Be Used With Other Gears Of The Same Module | Tooth Profile: | Herringbone |
|---|---|---|---|
| Face Width: | Depends On Size | Inner Type: | Taper Hole |
| Manufacturing Process: | Gear Teeth Milling | Helix Angle: | 20° |
| Accuracy: | DIN Class 8 | Hs Code: | 84834090 |
| Highlight: | Seamless Integration Herringbone Gear,Seamless Integration Gear,Heavy Duty Herringbone Gear |
||

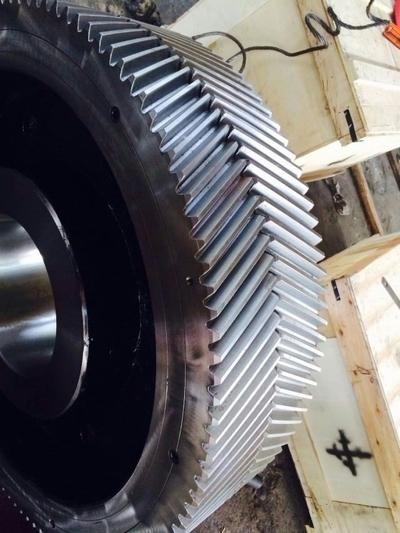

Welcome to our detailed Product Summary for the Herringbone Gears product. This gear type features a unique Gear Profile known as Herringbone Gear. Herringbone Gears are characterized by their double helical structure, which provides smoother and quieter operation compared to traditional spur gears. The special tooth arrangement of herringbone gears helps in eliminating axial forces, making them ideal for high-speed and high-torque applications.
When it comes to Compatibility, these Herringbone Gears can be seamlessly used with other gears of the same module. This interchangeability and compatibility make them versatile components in various mechanical systems. Whether you are designing a complex gearbox or a precision machine, these gears can be integrated effectively with other gear types.
The Tooth Number of these Herringbone Gears is set at 158, offering a balance between precision and load-bearing capacity. With 158 teeth, these gears ensure smooth and efficient power transmission across the gear system. The high tooth count also contributes to the gear's ability to handle heavy loads and maintain consistent performance over extended periods of use.
As for the Accuracy Grade, these Herringbone Gears adhere to the ISO 8-9 Grade standards. This indicates a high level of precision in the manufacturing process, ensuring that each gear meets strict quality control measures. The ISO 8-9 Grade accuracy guarantees reliable and consistent performance, making these gears suitable for demanding industrial applications that require tight tolerances.
When it comes to Tooth Profile, these Herringbone Gears feature the classic Herringbone design. The double helical teeth of herringbone gears provide excellent meshing characteristics, reducing noise and vibration during operation. The herringbone tooth profile enhances the overall efficiency of the gear system, making it a preferred choice for applications that demand smooth and reliable gear transmission.
These Herringbone Gears are essential components in various mechanical systems that rely on precise and efficient power transmission. Whether you are designing gearboxes for automotive applications, industrial machinery, or precision equipment, these gears offer exceptional performance and durability. Their compatibility with other gears, high tooth count, precise manufacturing, and herringbone tooth profile make them reliable and versatile solutions for your gearing needs.
Invest in these Herringbone Gears to optimize the performance and longevity of your gear-driven systems. Whether you are looking to upgrade existing gear shafts, fine-tune your grinding gear mechanisms, or enhance the overall efficiency of your gear assemblies, these herringbone gears are the ideal choice. Trust in their quality, precision, and compatibility to elevate the performance of your mechanical systems.
| Helix Angle | 20° |
| Tooth Number | 158 |
| Gear Profile | Herringbone Gear |
| Tooth Profile | Herringbone |
| Inner Type | Taper Hole |
| Length | 2200mm |
| HS Code | 84834090 |
| Usage | High-speed And Heavy-duty Applications |
| Compatibility | Can Be Used With Other Gears Of The Same Module |
| Accuracy | DIN Class 8 |
Herringbone gears are specially designed for high-speed and heavy-duty applications due to their unique characteristics. With a teeth width of 55 and a helix angle of 20°, these gears are ideal for demanding industrial settings that require precision and durability.
One of the key product attributes of herringbone gears is their tooth number, with 158 teeth ensuring smooth and efficient operation in various machinery. The length of 2200mm further enhances the stability and performance of these gears, making them a reliable choice for critical applications.
These gears are commonly used in Gear Hobbing Machines, where precision cutting and shaping of gears are essential. The unique herringbone design allows for smoother meshing of gears and reduces vibration, making them perfect for applications where accuracy is paramount.
Product Application Occasions and Scenarios for Herringbone Gears are vast, including but not limited to: - Industrial machinery requiring high-speed and heavy-duty performance - Automotive transmissions for smooth power transmission - Aerospace applications demanding precision and reliability - Power generation equipment for efficient energy transfer - Marine propulsion systems for reliable operation in harsh environments
Whether it's in a Gear Hobbing Machine or other industrial equipment, herringbone gears excel in scenarios where high-speed, heavy-duty operation is a necessity. Their precise design and durable construction make them a preferred choice for industries that rely on efficient and reliable gear systems.
Product Customization Services for Herringbone Gears:
Compatibility: Can Be Used With Other Gears Of The Same Module
Manufacturing Process: Gear Teeth Milling
Hs Code: 84834090
Gear Profile: Herringbone Gear
Accuracy: DIN Class 8
Product Attributes: Gear Hobbing Machine, Gear Hobbing Machine, High Precision Gear
Our Product Technical Support and Services for Herringbone Gears include:
- Expert troubleshooting assistance for any issues related to the product.
- Guidance on proper installation and maintenance of Herringbone Gears.
- Training programs to help users understand the features and benefits of the product.
- Warranty support and repair services for any defective products.
